Precision Machined SSIC Bushing for High-Temperature Canned Motor Pumps
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Certification | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Model Number | customized products |
| Minimum Order Quantity | 20-50 pcs |
| Price | Negotiable |
| Packaging Details | Foam+carton box |
| Delivery Time | 20-45 work days |
| Payment Terms | T/T |
| Supply Ability | 2000pcs per month |
Product Details
| Name | Ceramic Sliding Bearing | Category | Ceramic Pump Bearing |
|---|---|---|---|
| Material | Pressureless Sintered Silicon Carbide＋Stalin Less304 | Size | Customized,according To The Drawings |
| Use | Canned Motor Pump | Package | Foam+carton Box |
| Keyword | Canned Motor Pump Bearing | Type | Crucial Transmission Part |
| Highlight | Precision Machined SSIC Bushing,Pressureless Sintered Silicon Carbide Bearing,1650℃ Maximum Temperature Ceramic Sliding Bearing |
||
Product Description
Precision Machined SSIC Bushing
Precision Machined SSIC Bushing for Canned Motor Pump designed specifically for canned motor pumps, featuring customized designs and materials for high-temperature applications.
Key Specifications
| Attribute | Value |
|---|---|
| Name | Ceramic Sliding Bearing |
| Category | Ceramic pump bearing |
| Material | Pressureless sintered silicon carbide/Zirconia |
| Size | Customized according to drawings |
| Use | Canned motor pump |
| Package | Foam + carton box |
The sliding bearing serves as a crucial transmission component, functioning as both the support and rotary unit in canned motor pumps. Silicon carbide (SSiC) is an exceptional material choice for these bearings due to its outstanding corrosion resistance, wear resistance, and superior mechanical properties.
Primary Applications
- Ideal for canned motor pumps operating in corrosive environments with inorganic matter, acids, alkalis, and salts (SSiC standard bearing)
- Suitable for canned motor pumps handling media prone to vaporization
Material Properties
| Property | Value |
|---|---|
| Maximum Temperature | Up to 1650℃ |
| Density | 3.15-3.18 g/cm³ |
| Thermal Expansion | 4.0 (10-6/℃) |
| Thermal Conductivity | 120 W/m°K |
| Hardness | 2800 HV5 |
| Elastic Modulus | 410 GPa |
| Chemical Stability | Superior resistance to acid and alkali corrosion (including hydrofluoric acid) |

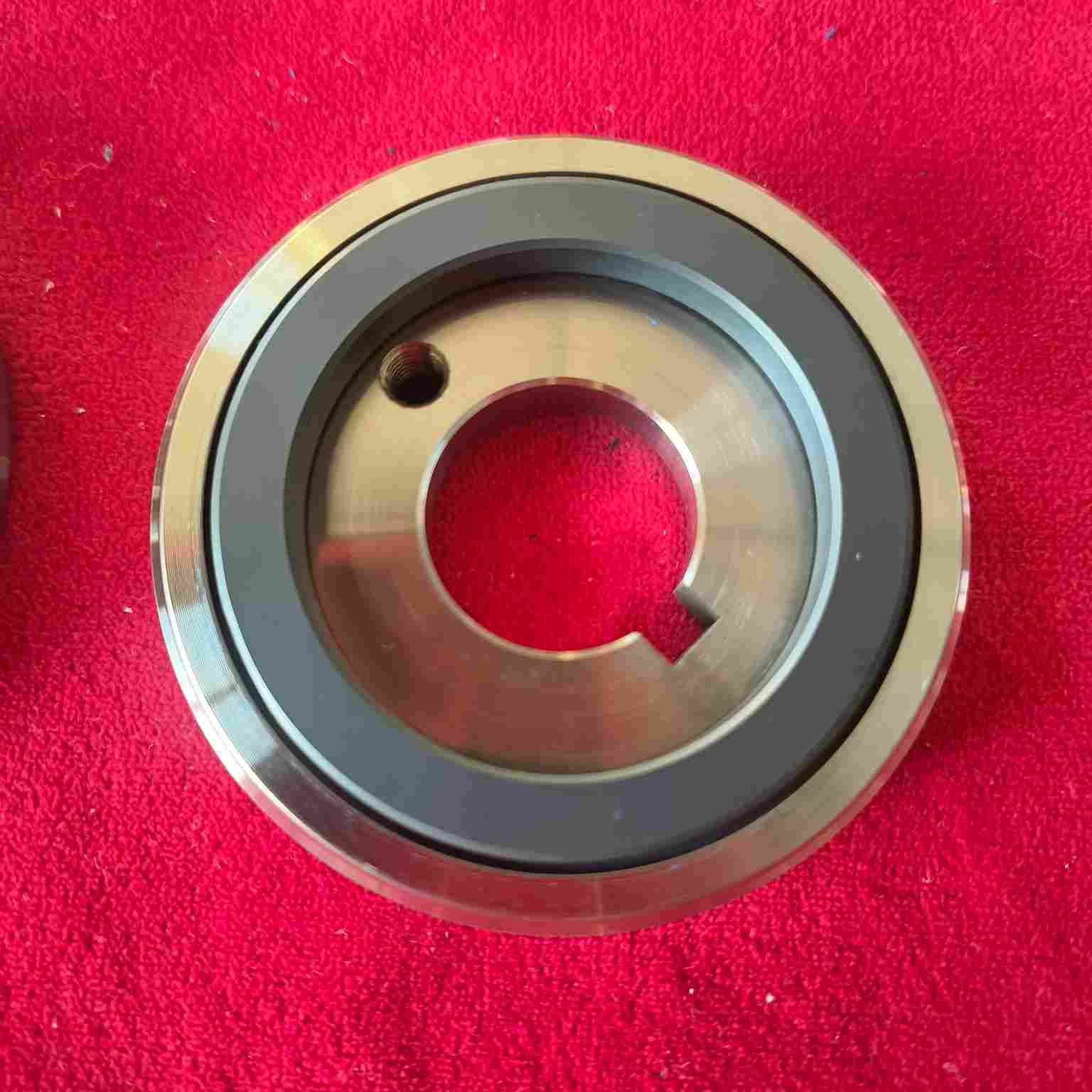

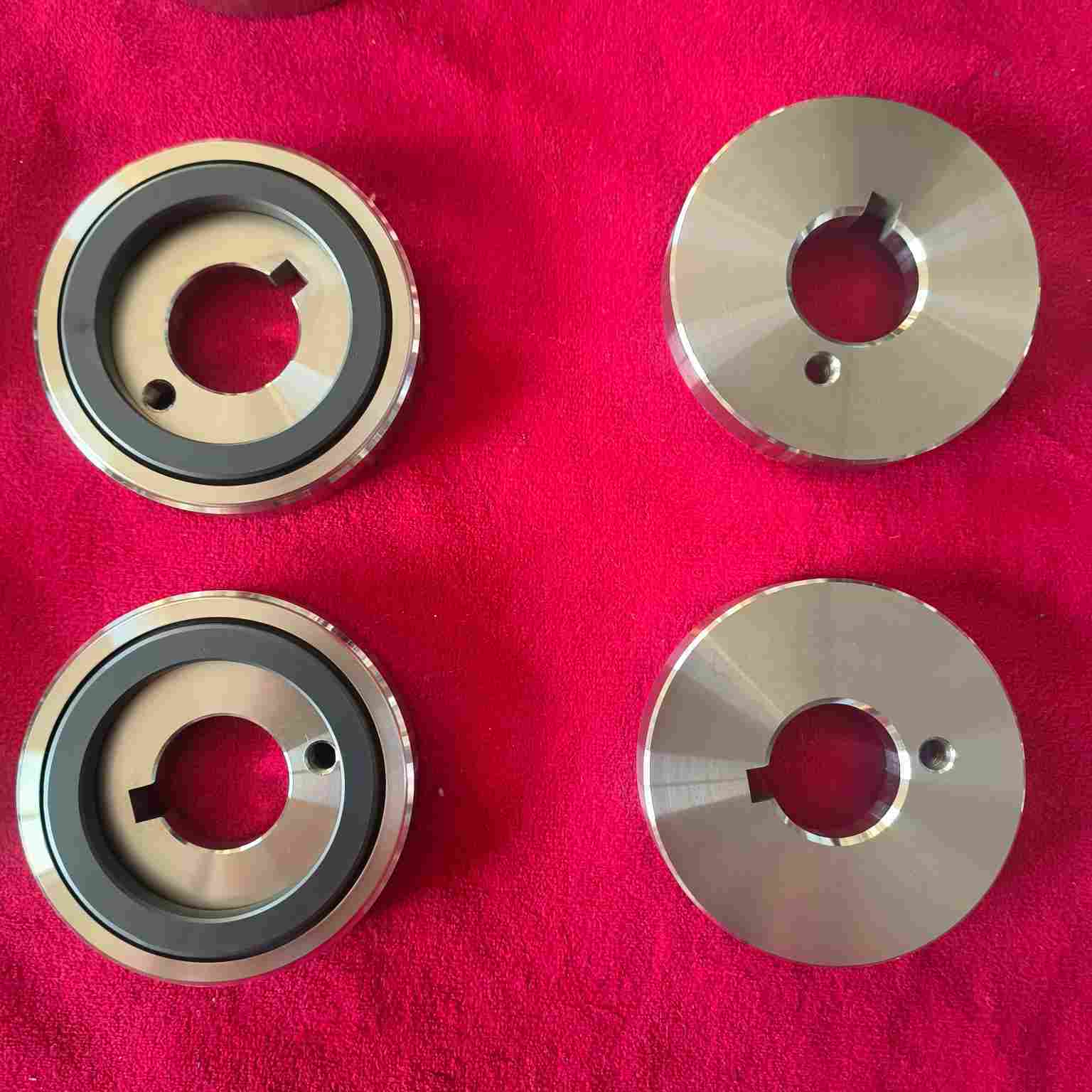

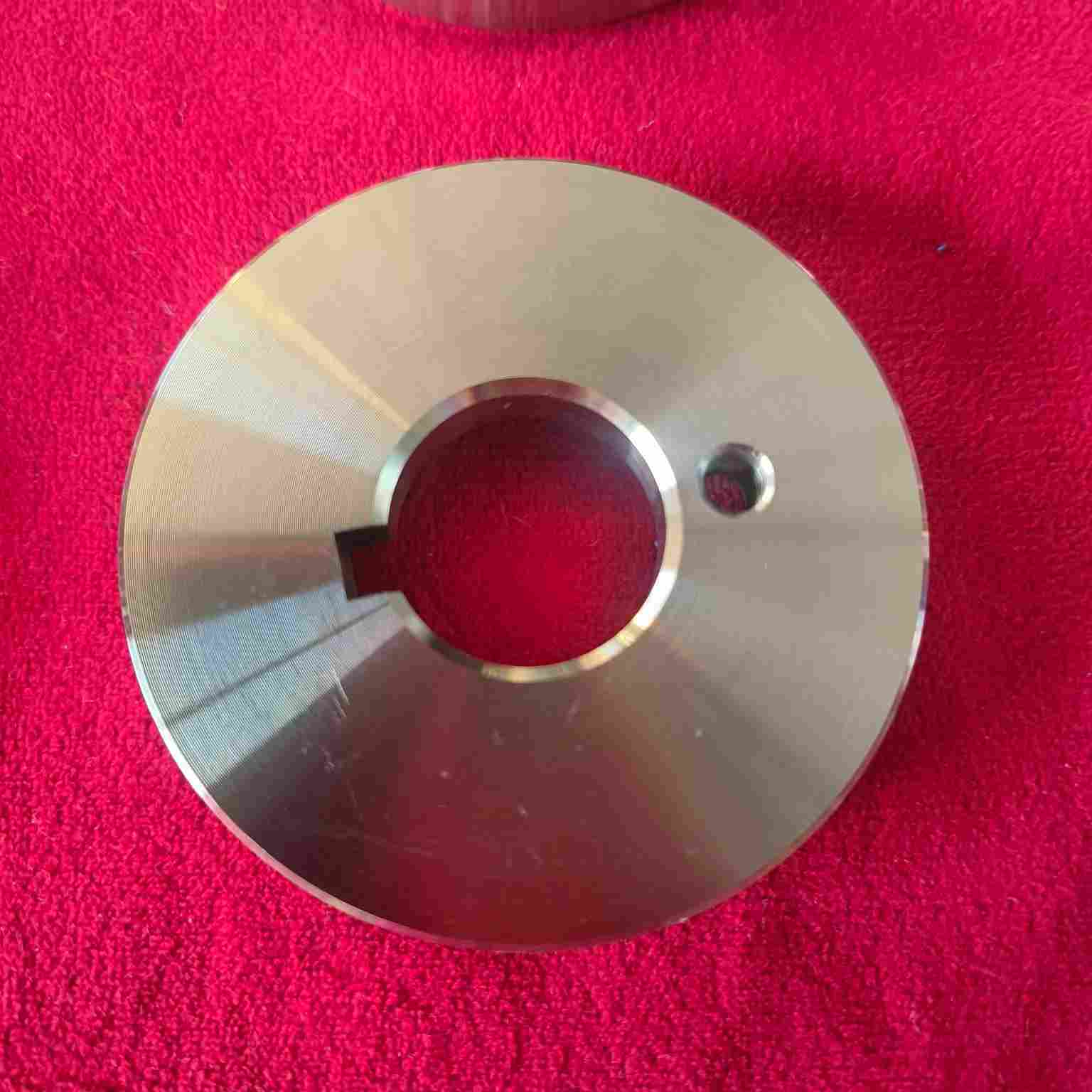

Product Images
Manufacturing Capabilities
We operate three specialized factories in China, equipped with advanced pressing, sintering, and processing machinery to meet diverse customer requirements.
Production line for ceramic bearings
Precision machining process
Quality control inspection
