SiC Sleeve Sliding Bearing for Canned Motor Pump

  • SiC Sleeve Sliding Bearing for Canned Motor Pump
  • SiC Sleeve Sliding Bearing for Canned Motor Pump
  • SiC Sleeve Sliding Bearing for Canned Motor Pump
  • SiC Sleeve Sliding Bearing for Canned Motor Pump
  • SiC Sleeve Sliding Bearing for Canned Motor Pump
Place of Origin China
Brand Name CSQ
Certification FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Model Number customized products
Minimum Order Quantity 20-50 pcs
Price Negotiable
Packaging Details Foam+carton box
Delivery Time 20-45 work days
Payment Terms T/T
Supply Ability 2000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Customized Ceramic Sliding Bearing Category Ceramic Pump Bearing
Material Pressureless Sintered Silicon Carbide+stainless Steel Size Customized,according To The Drawings
Use Canned Motor Pump Package Foam+carton Box
Keyword Canned Motor Pump Bearing Type Crucial Transmission Part
Highlight

SiC sleeve sliding bearing

,

ceramic sliding bearing for canned motor

,

SiC motor pump bearing
Leave a Message
Product Description

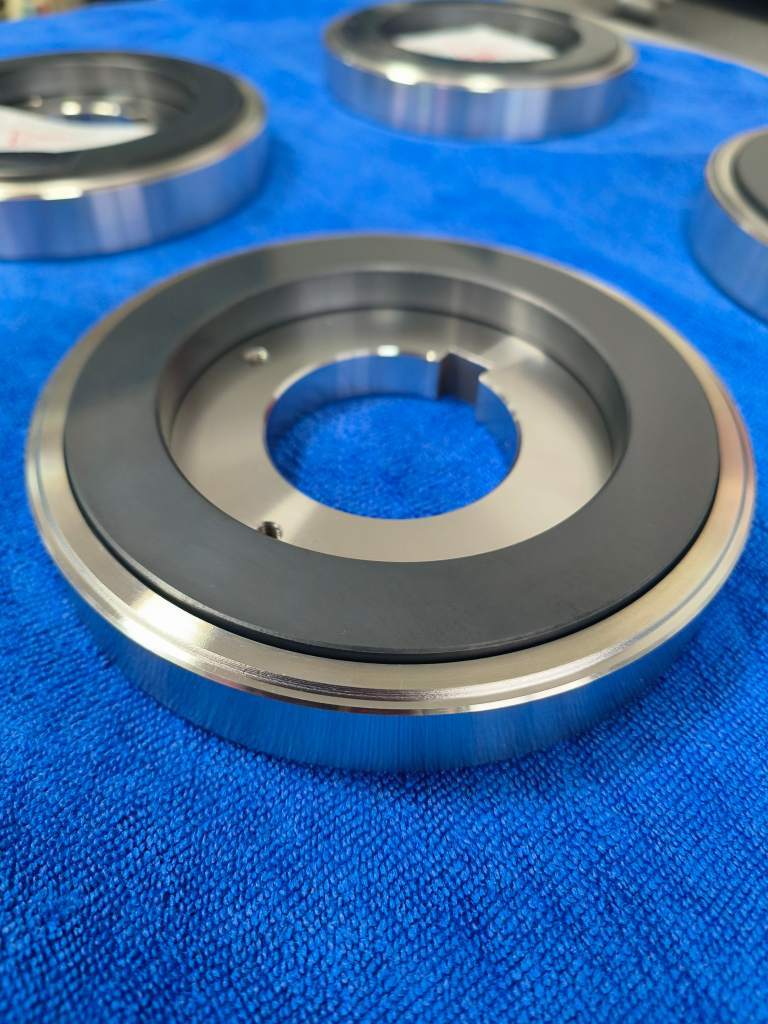

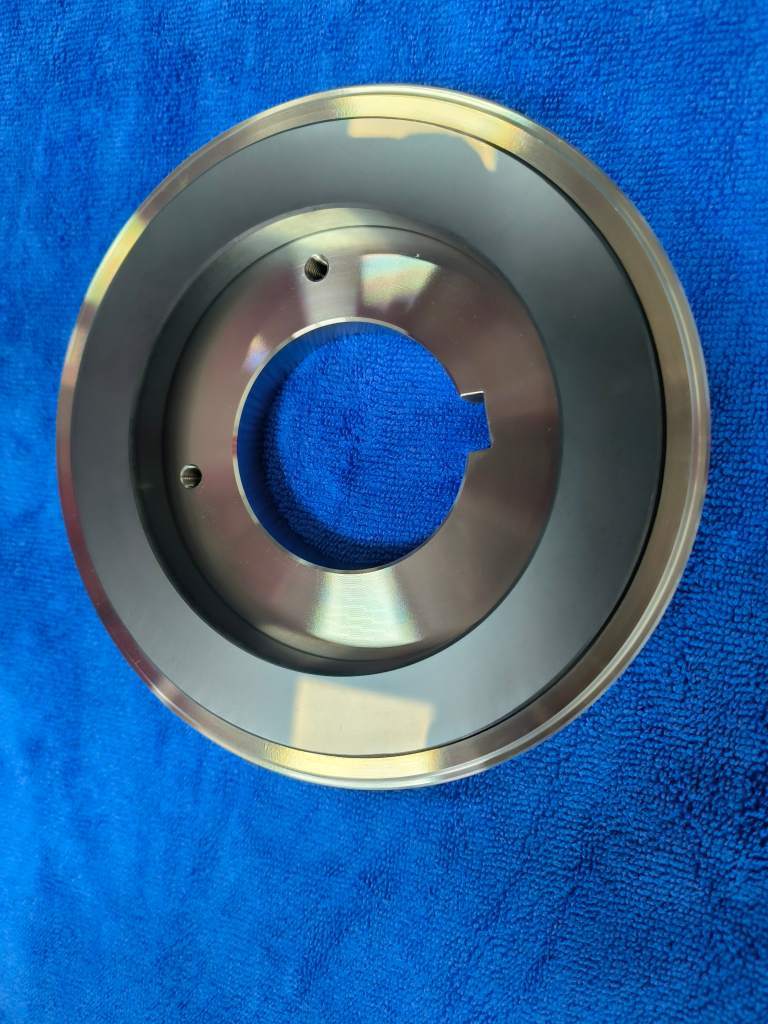

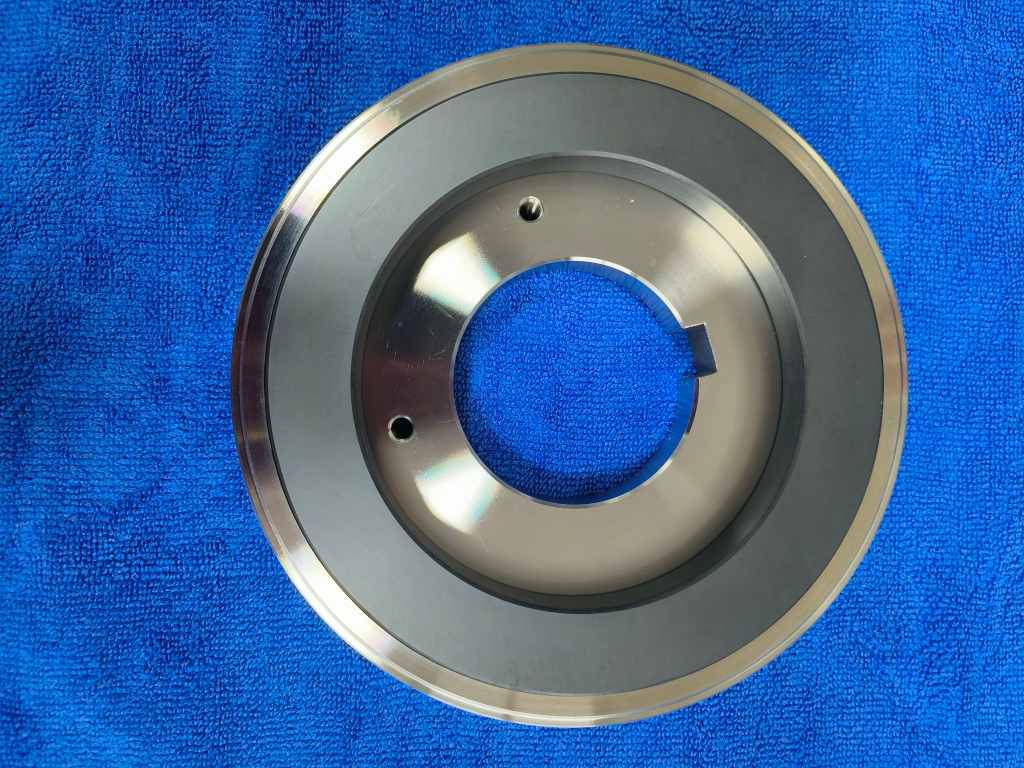

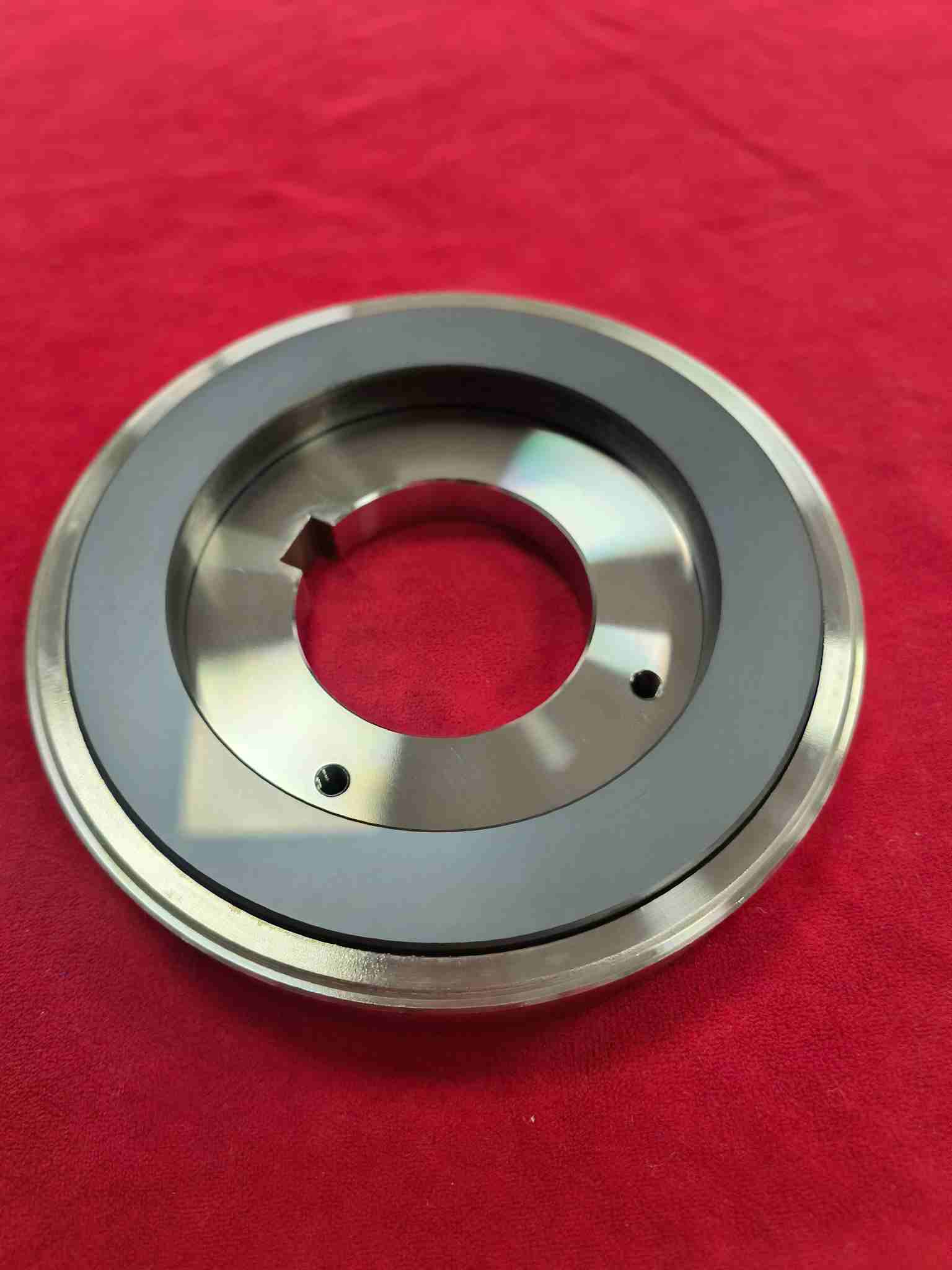

Sliding Bearing SiC Sleeve for Canned Motor Pump
Silicon Carbide (SiC) Sleeve and Thrust Disc Assembly
The Sleeve and Thrust Disc Assembly is a critical transmission component serving as both the support and rotational unit in canned motor pumps. Silicon carbide (SSiC), renowned for its outstanding corrosion resistance, wear resistance, and superior material properties, stands as one of the most ideal sliding bearing materials for such pumps.
Key Features
  • • Superior Wear Resistance: High hardness and low friction coefficient of SiC (SSiC/SiC) ensure extended service life.
  • • Corrosion Resistance: Immune to acids, alkalis, and high-temperature fluids, ideal for aggressive media.
  • • Thermal Stability: Low thermal expansion maintains dimensional accuracy under high-speed rotation.
  • • Customizable: Available in standard or integrated designs to fit various pump models.
Typical Uses
  • • Chemical process pumps, nuclear coolant systems
  • • High-purity fluid transfer (e.g., semiconductor-grade chemicals)
  • • Sealless solutions for extreme pressure/temperature conditions
Main Application of Canned Motor Pump

1. The canned motor pump can be used in common corrosive conditions, such as the medium of inorganic matter, acid, alkaline and salt. In such conditions, SSiC (sintered) is taken as standard sliding bearing.

2. The canned motor pump can be used in common corrosive conditions with media that are easy to vaporize.

Key Properties of Pressureless Sintered Silicon Carbide
Max Temperature up to 1650℃
Low density 3.15-3.18 g/cm3
High strength
Low thermal expansion 4.0 (10-6/℃)
High thermal conductivity 120 W/m°K
High hardness 2800 HV5
High elastic modulus 410GPa
Chemical stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)
SiC Sleeve Sliding Bearing for Canned Motor Pump 0SiC Sleeve Sliding Bearing for Canned Motor Pump 1
Our Factory and Processing Machines
We have three factories in China to meet different customer needs, equipped with advanced pressing, sintering and processing machines.
SiC Sleeve Sliding Bearing for Canned Motor Pump 2 SiC Sleeve Sliding Bearing for Canned Motor Pump 3 SiC Sleeve Sliding Bearing for Canned Motor Pump 4
