Precision Machined SSIC Bushing

  • Precision Machined SSIC Bushing
  • Precision Machined SSIC Bushing
  • Precision Machined SSIC Bushing
  • Precision Machined SSIC Bushing
  • Precision Machined SSIC Bushing
Place of Origin China
Brand Name CSQ
Certification FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Model Number customized products
Minimum Order Quantity 20-50 pcs
Price Negotiable
Packaging Details Foam+carton box
Delivery Time 20-45 work days
Payment Terms T/T
Supply Ability 2000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Sliding Bearing Category Ceramic Pump Bearing
Material Pressureless Sintered Silicon Carbide/Zirconia Size Customized,according To The Drawings
Use Canned Motor Pump Package Foam+carton Box
Keyword Canned Motor Pump Bearing Type Crucial Transmission Part
Highlight

1650℃ Maximum Temperature SSIC Bushing

,

3.15-3.18 g/cm³ Density Ceramic Sliding Bearing

,

120 W/m°K Thermal Conductivity Silicon Carbide Bearing
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
Precision Machined SSIC Bushing for Canned Motor Pump
Product Overview

SSIC Ceramic Bushing designed specifically for canned motor pumps, featuring customized designs and materials for high-temperature applications.

Key Specifications
Attribute Value
Name Ceramic Sliding Bearing
Category Ceramic pump bearing
Material Pressureless sintered silicon carbide/Zirconia
Size Customized according to drawings
Use Canned motor pump
Package Foam + carton box

The sliding bearing serves as a crucial transmission component, functioning as both the support and rotary unit in canned motor pumps. Silicon carbide (SSiC) is an exceptional material choice for these bearings due to its outstanding corrosion resistance, wear resistance, and superior mechanical properties.

Primary Applications
  • Ideal for canned motor pumps operating in corrosive environments with inorganic matter, acids, alkalis, and salts (SSiC standard bearing)
  • Suitable for canned motor pumps handling media prone to vaporization
Material Properties
Property Value
Maximum Temperature Up to 1650℃
Density 3.15-3.18 g/cm³
Thermal Expansion 4.0 (10-6/℃)
Thermal Conductivity 120 W/m°K
Hardness 2800 HV5
Elastic Modulus 410 GPa
Chemical Stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)
Product Images

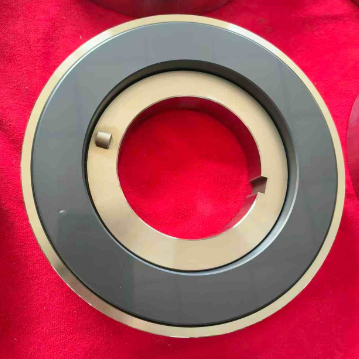

Precision Machined SSIC Bushing 0
Silicon carbide sliding bearing

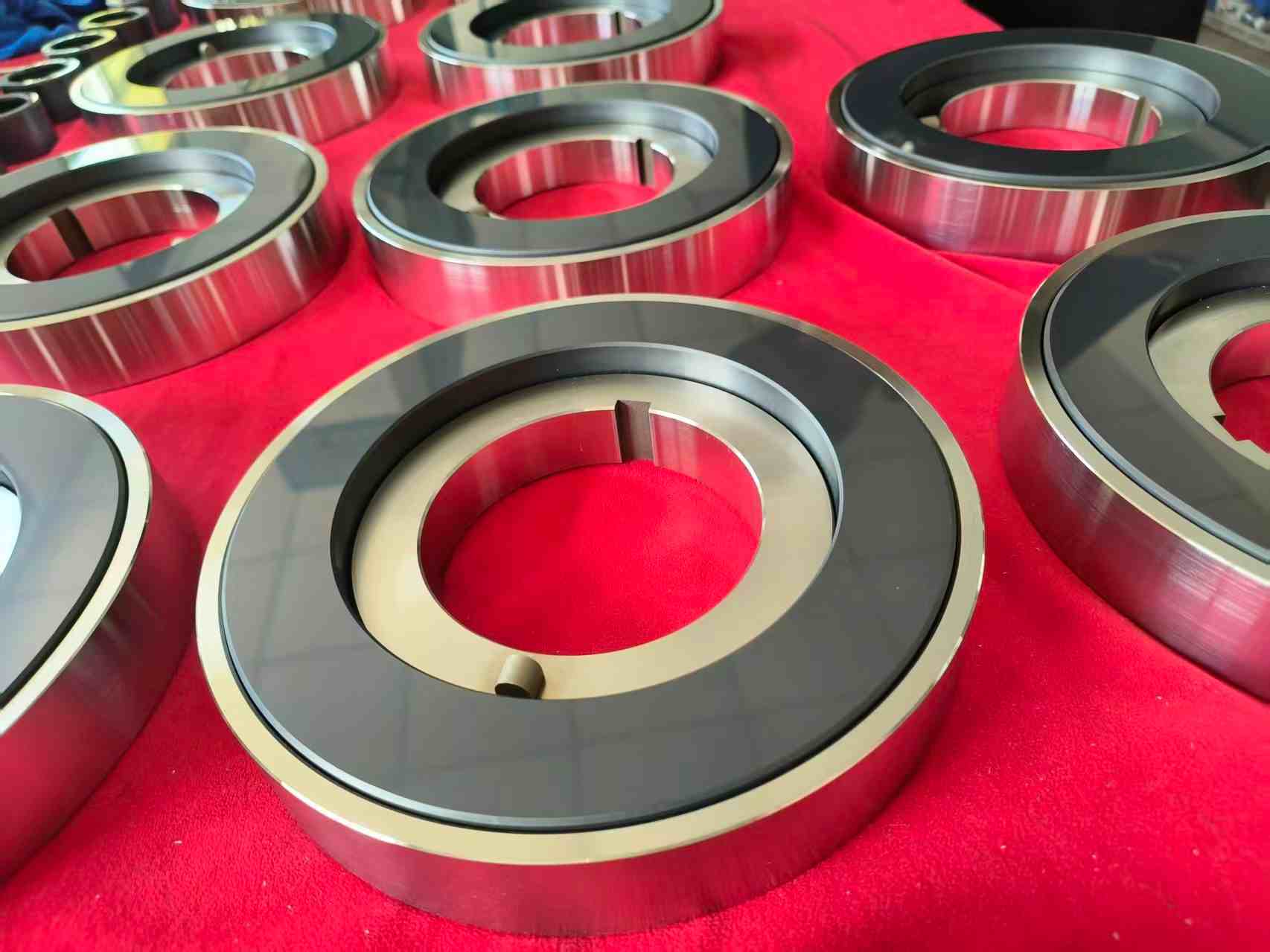

Precision Machined SSIC Bushing 1
Precision ceramic components
Manufacturing Capabilities

We operate three specialized factories in China, equipped with advanced pressing, sintering, and processing machinery to meet diverse customer requirements.

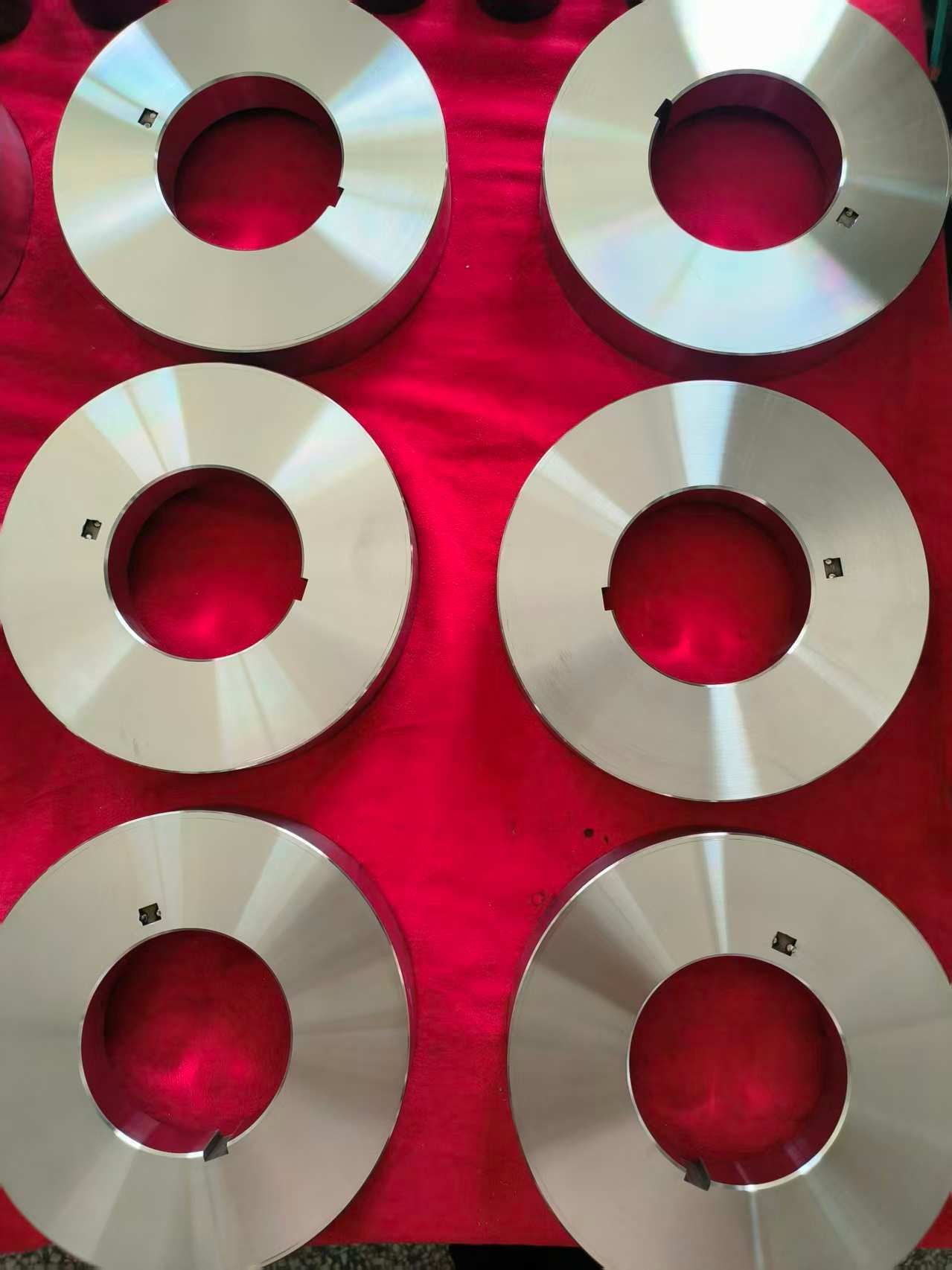

Precision Machined SSIC Bushing 2
Production line for ceramic bearings

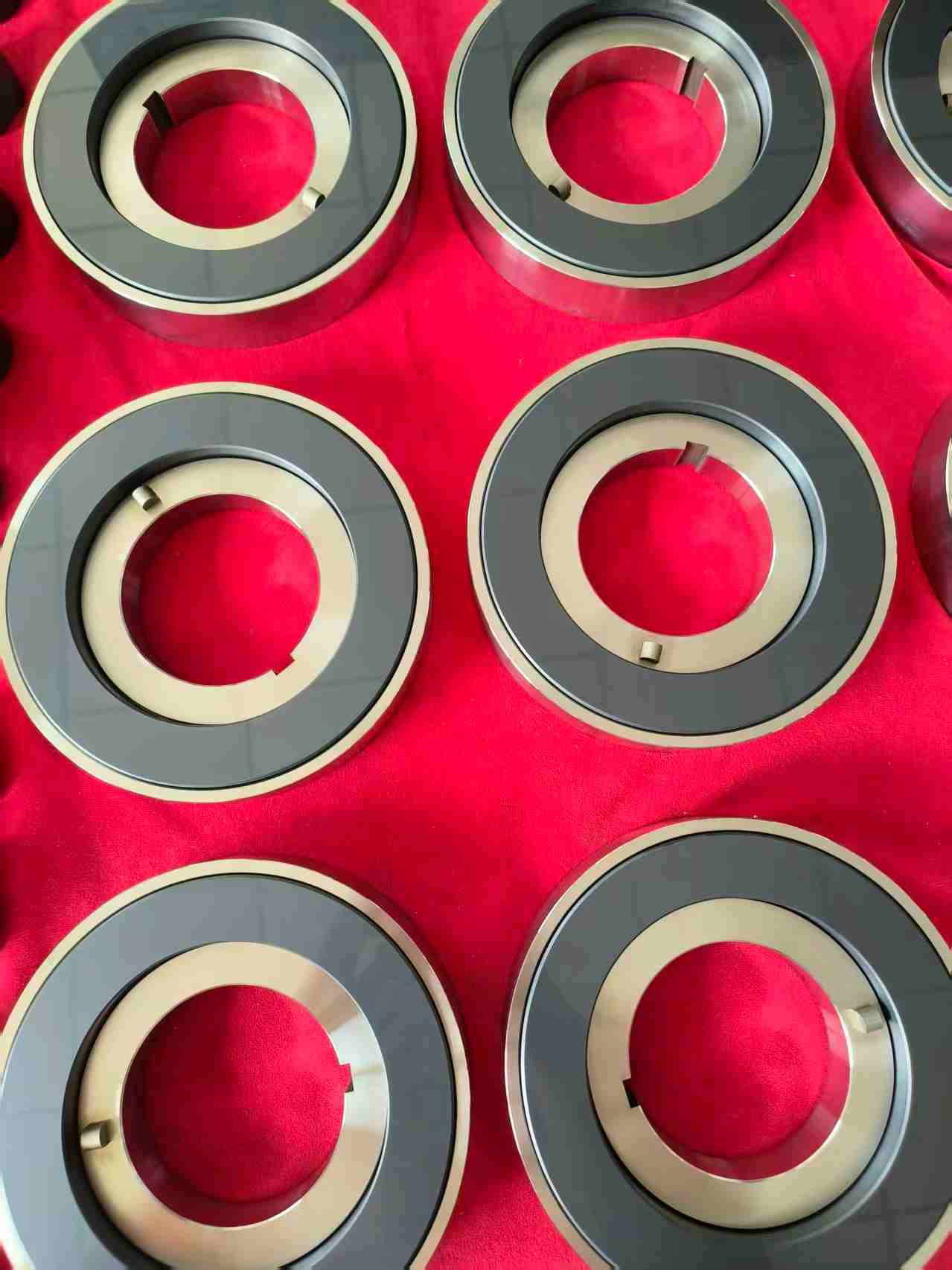

Precision Machined SSIC Bushing 3
Precision machining process
Precision Machined SSIC Bushing 4
Quality control inspection
