Silicon Carbide Sliding Bearing for Canned Motor Pump Customized Design and Material for High-Temperature Applications
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Certification | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Model Number | customized products |
| Minimum Order Quantity | 20-50 pcs |
| Price | Negotiable |
| Packaging Details | Foam+carton box |
| Delivery Time | 20-45 work days |
| Payment Terms | T/T |
| Supply Ability | 2000pcs per month |
Product Details
| Name | Ceramic Sliding Bearing | Category | Ceramic Pump Bearing |
|---|---|---|---|
| Material | Pressureless Sintered Silicon Carbide/Zirconia | Size | Customized,according To The Drawings |
| Use | Canned Motor Pump | Package | Foam+carton Box |
| Keyword | Canned Motor Pump Bearing | Type | Crucial Transmission Part |
| Highlight | Silicon Carbide sliding bearing for high-temperature,Customized ceramic sliding bearing for motor pump,High-performance canned motor pump bearing |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Silicon Carbide Sliding Bearing for Canned Motor Pump
Customized Design and Material for High-Temperature Applications
Product Specifications
| Attribute | Value |
|---|---|
| Name | Ceramic Sliding Bearing |
| Category | Ceramic pump bearing |
| Material | Pressureless sintered silicon carbide/Zirconia |
| Size | Customized, according to the drawings |
| Use | Canned motor pump |
| Package | Foam + carton box |
Product Description
The sliding bearing serves as a crucial transmission component, functioning as both the support and rotary unit in canned motor pumps. Silicon carbide (SSiC) is an exceptional material choice for these bearings due to its outstanding corrosion resistance, wear resistance, and other superior properties.
Primary Applications
- Ideal for canned motor pumps operating in corrosive environments with inorganic matter, acids, alkalis, and salts (SSiC standard bearing)
- Suitable for canned motor pumps handling media prone to vaporization
Key Properties of Pressureless Sintered Silicon Carbide
| Maximum Temperature | Up to 1650℃ |
| Density | 3.15-3.18 g/cm³ |
| Thermal Expansion | 4.0 (10-6/℃) |
| Thermal Conductivity | 120 W/m°K |
| Hardness | 2800 HV5 |
| Elastic Modulus | 410 GPa |
| Chemical Stability | Superior resistance to acid and alkali corrosion (including hydrofluoric acid) |

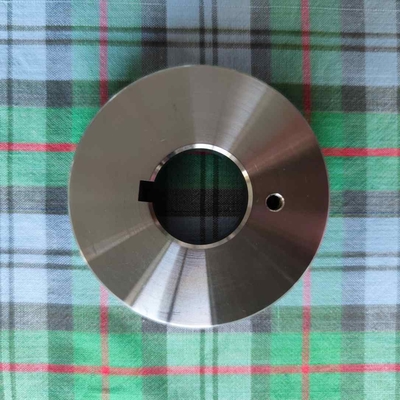

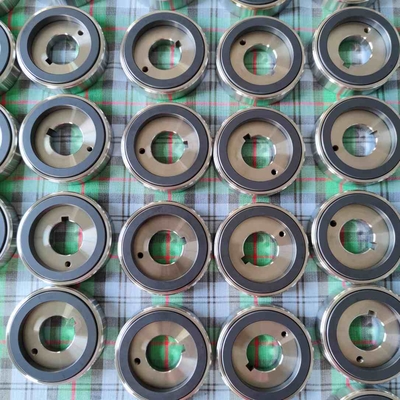

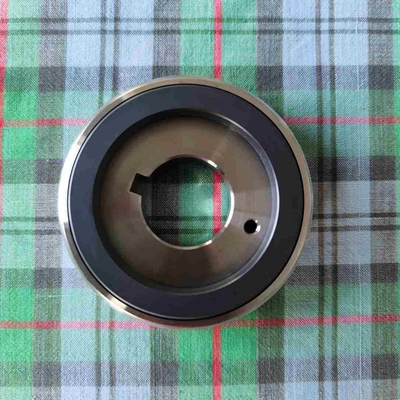

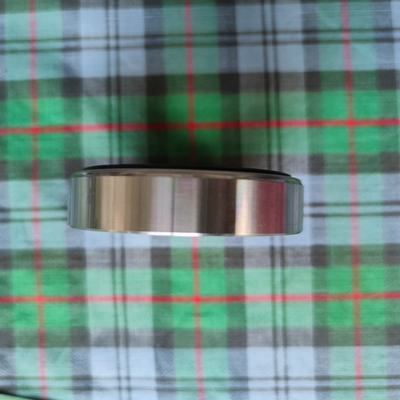

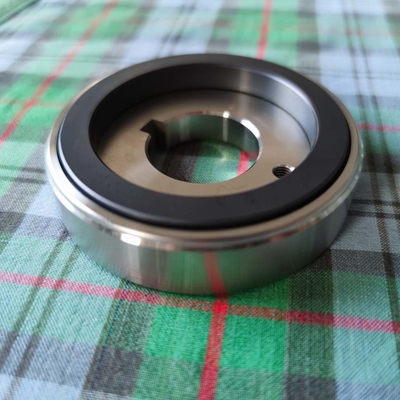

Product Images
Manufacturing Capabilities
We operate three specialized factories in China, equipped with advanced pressing, sintering, and processing machinery to meet diverse customer requirements.
