Durable Ceramic Sliding Bearing for Canned Motor Pump High Temperature and Corrosion Resistance
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Certification | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Model Number | customized products |
| Minimum Order Quantity | 20-50 pcs |
| Price | Negotiable |
| Packaging Details | Foam+carton box |
| Delivery Time | 20-45 work days |
| Payment Terms | T/T |
| Supply Ability | 2000pcs per month |
Product Details
| Name | Customized Ceramic Sliding Bearing | Material | Pressureless Sintered Silicon Carbide/Zirconia |
|---|---|---|---|
| Category | Ceramic Pump Bearing | Size | Customized,according To The Drawings |
| Use | Canned Motor Pump | Package | Foam+carton Box |
| Keyword | Canned Motor Pump Bearing | Type | Crucial Transmission Part |
| Highlight | ceramic sliding bearing for canned motor pump,high temperature ceramic sliding bearing,corrosion resistant ceramic bearing |
||
Product Description
Customized Sliding Bearing For Canned Motor Pump
Description of Sliding Bearing for Canned Motor Pump:
Sliding bearing is a crucial transmission part, as the support and rotary unit of canned motor pump. With the excellent corrosion resistance, wear resistance and other properties, silicon carbide (SSiC) is one of the best sliding bearing material for the pumps.
Main application of Canned Motor Pump:
1. The canned motor pump can be used in common corrosive condition, such as the medium of inorganic matter, acid, alkaline and salt. In such condition, ssic(sintered) is taken as standard sliding bearing.
2. The canned motor pump can be used in common corrosive condition, and the medium easy to vaporized.
| ►Key properties of pressureless sintered silicon carbide |
| ♦ Max Temperature up to 1650℃ |
| ♦ Low density:3.15-3.18 g/cm3 |
| ♦ High strength |
| ♦ Low thermal expansion : 4.0 (10-6/℃) |
| ♦ High thermal conductivity:120 W/m°K |
| ♦ High hardness:2800 HV5 |
| ♦ High elastic modulus: 410GPa |
| ♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid) |

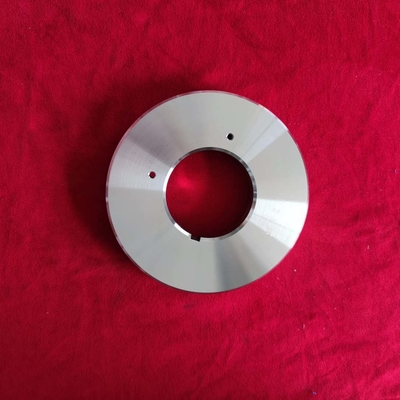

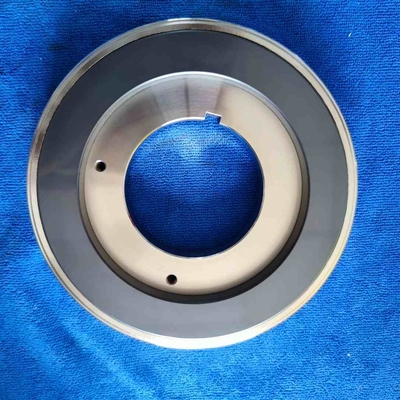

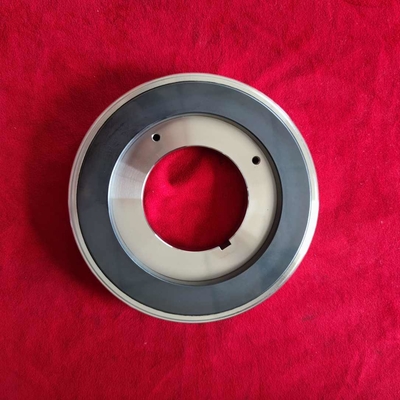

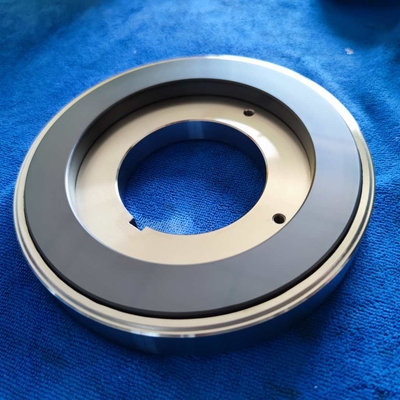

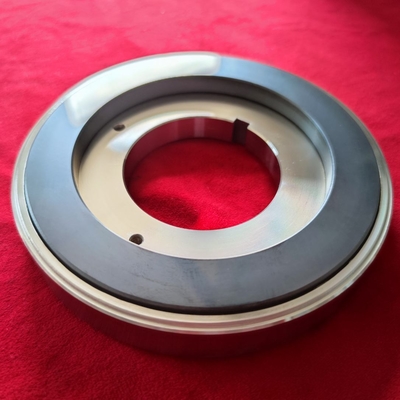

Product images are as follows:
Our factory and processing machine:
We have three factories in China, can meet the needs for different custmers, and also we have advanced pressing, sintering and processing machines.
