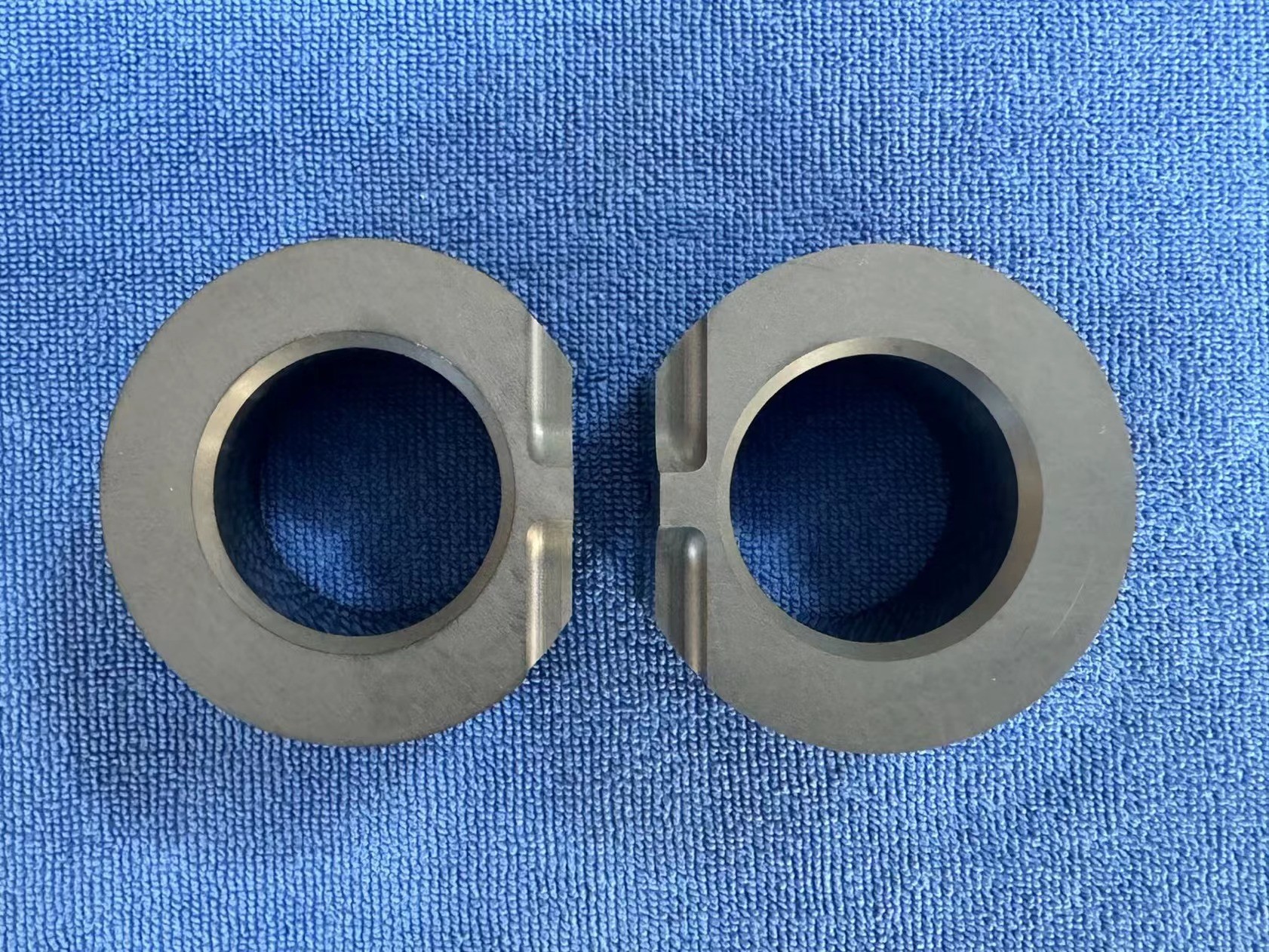

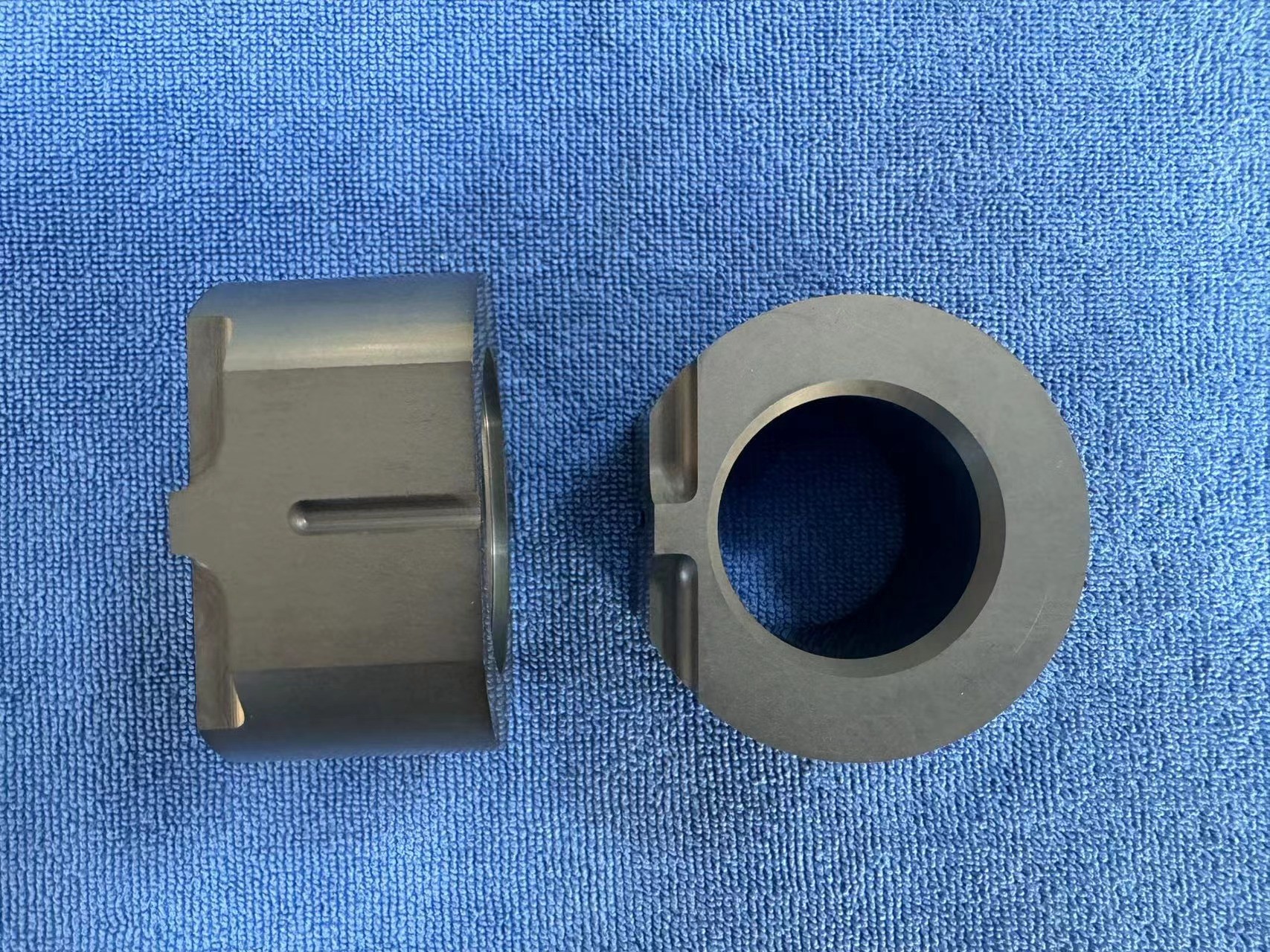

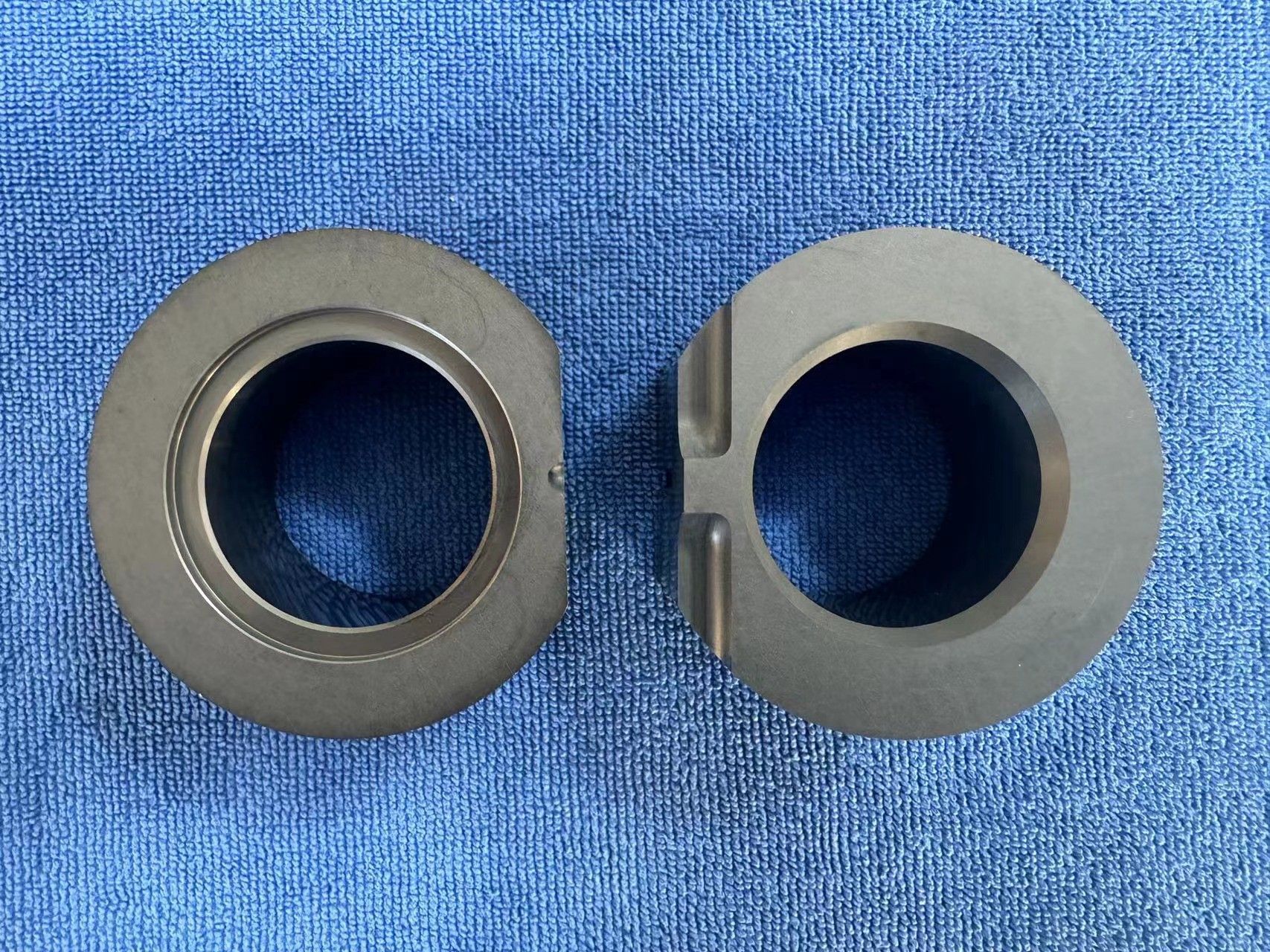

High Quality Ceramic Bearing Bushing Silicon Carbide SSIC for Gear Pump Bearing

Customized Silicon Carbide Sliding Bearing For Gear Pump


Description of Sliding Bearing for Gear Pump:


Gear pump is a rotary pump that depends on the working volume change and movement formed between the pump cylinder and the meshing gear to transport liquid or pressurize it. Composed of two gears, the pump body and the front and back cover of two closed Spaces, when the gear rotates, the volume of the space on the side of the gear off from small to large, forming a vacuum, the liquid inhalation, the volume of the space on the gear meshing side from large to small, and the liquid squeezed into the pipeline. The suction cavity and the discharge cavity are separated by the meshing lines of the two gears. The pressure of the discharge of the gear pump depends entirely on the resistance of the pump source.

The concept of gear pump is very simple, that is, its most basic form is two gears of the same size in a closely matched housing each other gear pump meshing rotation, the interior of the housing is similar to the "8" shape, the two gears are installed inside, the outer diameter of the gear and both sides are closely matched with the housing. The material from the extruder enters the middle of the two gears at the suction inlet and fills this space, moving along the housing with the rotation of the teeth, and finally discharging when the two teeth mesh.

The gear adopts a new technology with the international advanced level of 90 years - double arc sine curve tooth arc. Compared with involute gear, the most prominent advantage is that the tooth profile surface does not slide relative during gear meshing, so the tooth surface has no wear, running balance, no trapped liquid phenomenon, low noise, long life and high efficiency. The pump gets rid of the shackles of traditional design, which makes the gear pump enter a new field in design, production and use.

Features

Small friction coefficient, small initial friction torque, high mechanical efficiency, strong bearing capacity; Suitable for both low speed and high speed; Can work in a wide temperature range; Strong resistance to impurities and pollution.

Parameter Table








Why Choose Us

1.Professional team

Our company logo is ZXSQ and CSQ, and possesses eleven invention patents for utility models. The company now has a high-quality professional team consisting of dozens of members, to provide you with high-quality and perfect service, according to customer requirements to order a variety of bearing products.

Since the year of 1982 we have accumulated abundant experience in the production over the past more than 40 years, devoting ourselves whole -heartedly to the research and development of ceramic bearing material, our processing technique and improvement of our equipments.

Having undergone several evolution and transformation, our company has now become the leading enterprise in China domestic market in the fields of ceramic bearing and ceramic material products.


2.Strength factory

At present, we have a fully automatic grinding and assembling production line for ceramic bearings, with an annual output of 3 million sets of 608-2PS, 608-2RS and other specifications of P5 and P4 precision levels.

Firing equipment and technology leading in the industry. Our company has the most high-end equipment in the field of domestic industrial ceramics production, in addition to the hot isostatic sintering furnace (HIP) imported from ABB Sweden. Our company also has other production equipment, the product firing temperature has been raised to more than 2000℃.





FQA

Q:Who are we?
A:We are a factory in Beijing, China. We have been producing and selling ceramic bearings for more than 40 years. We have established friendly cooperative relations with many domestic and foreign companies.

Q:How can we guarantee quality?
A:We always produce samples before mass production, and produce in strict accordance with customer requirements and production regulations. After the completion of production, we will use inspection equipment to carry out precise inspection of products, and our packaging adopts the double insurance of foam and carton, to strictly ensure the quality of products.

Q:What can you buy from us?
A:Ceramic deep groove ball bearings, ceramic angular contact ball bearings, hybrid ceramic ball bearings, ceramic linear bearings, etc and all kinds of ceramic balls.

Q:Why should you buy from us not from other suppliers?
A:We are an industry and trade integrated company, we have three factories, with today's production and inspection equipment, can provide better delivery dates and product quality.

Q:What service can we provide?
A:We will provide high quality products and customized services, which can be fully customized according to user needs. We can provide samples for customer's confirmation.

Welcome your enquiry

We supply bearings, high quality products, if you need to buy or consult the price of bearings, please contact us. We are a set of bearing research and development, production, sales, service in one of the professional bearing company, providing bearing products and related technical services. We choose high quality raw materials, carefully do each set of bearings.

We adhere to customer demand as the guidance, and strive to provide customers with quality products and after-sales service, create value for customers, do customers partner. Welcome to discuss the cooperation!
