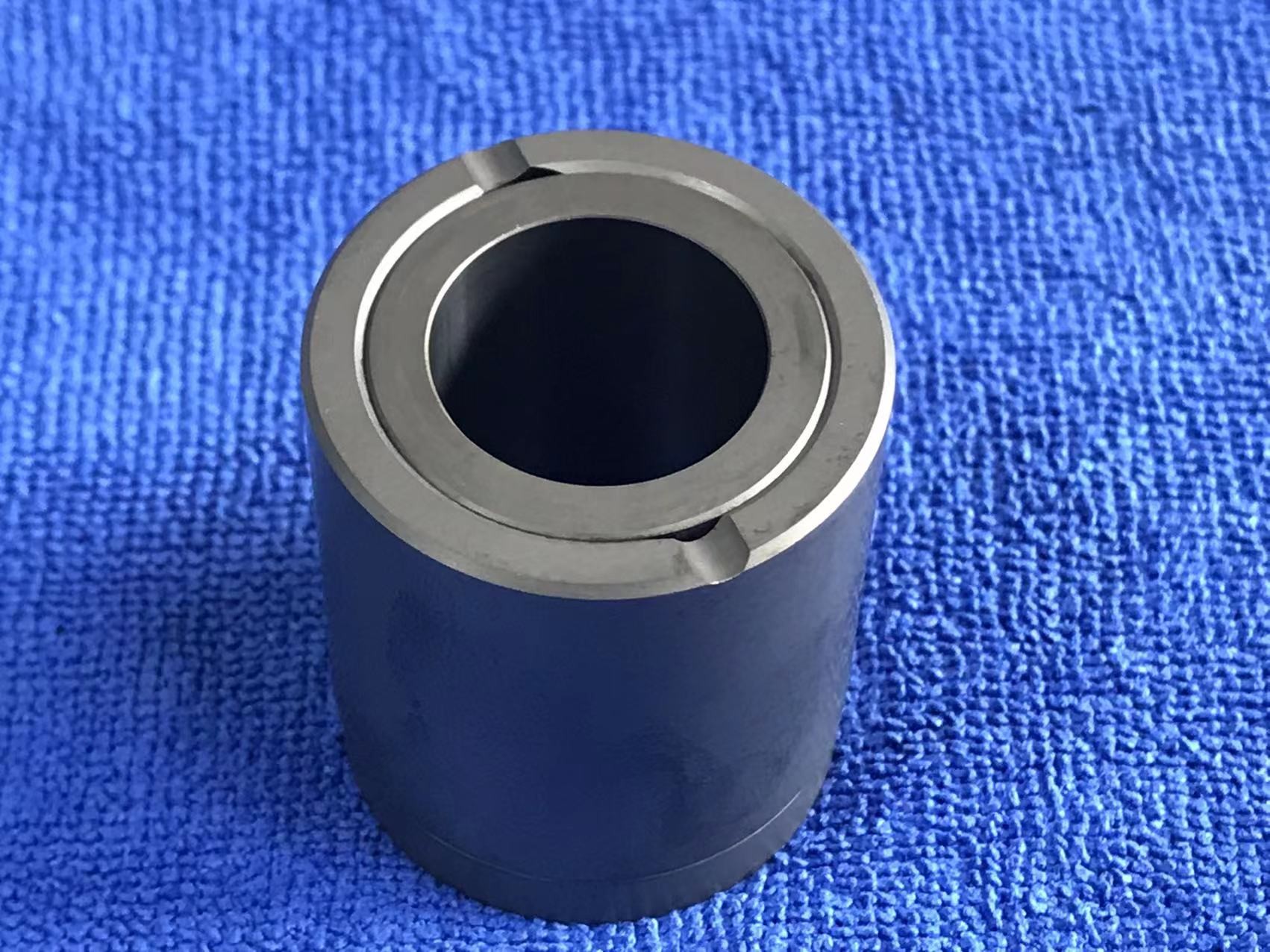

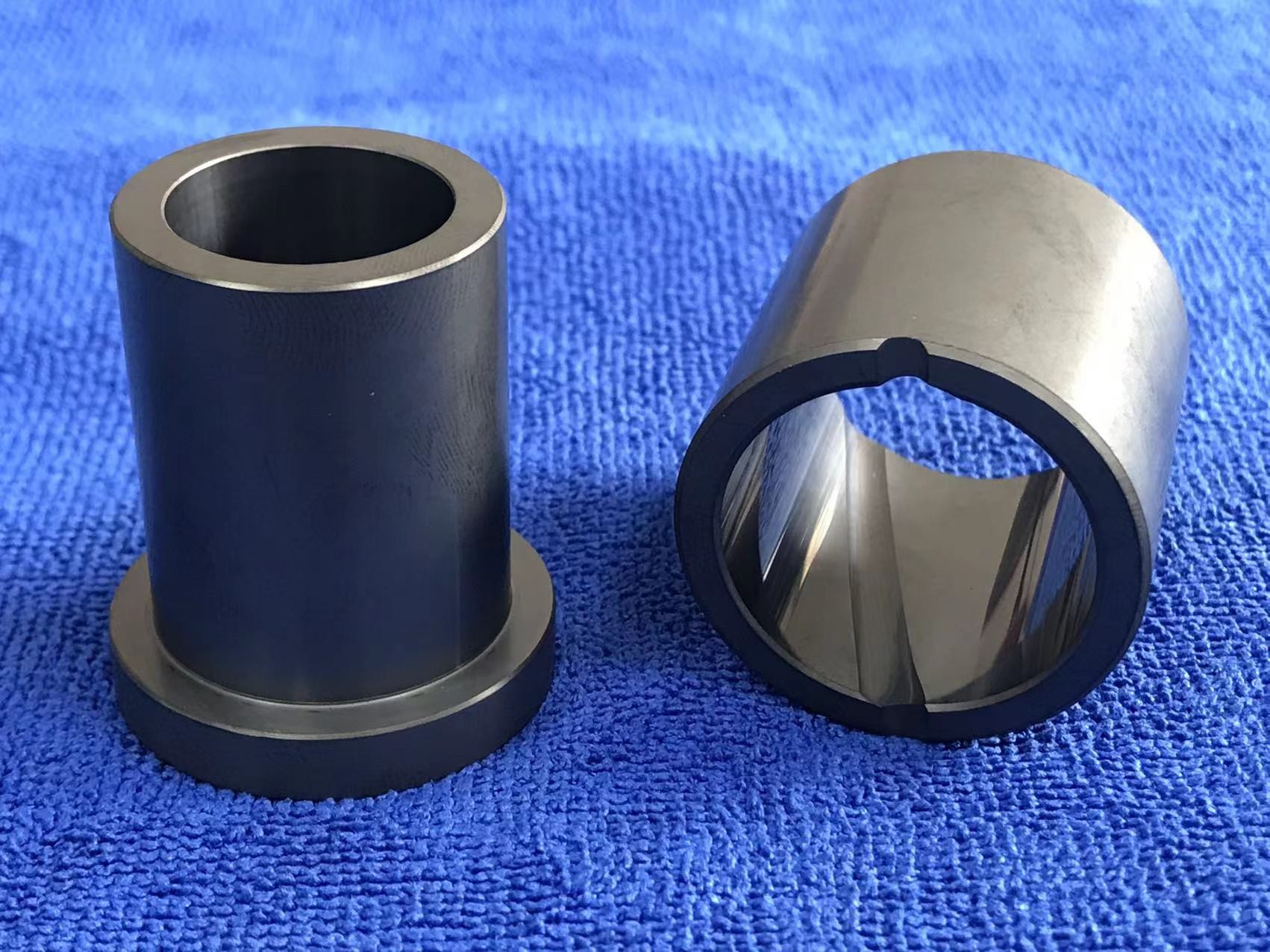

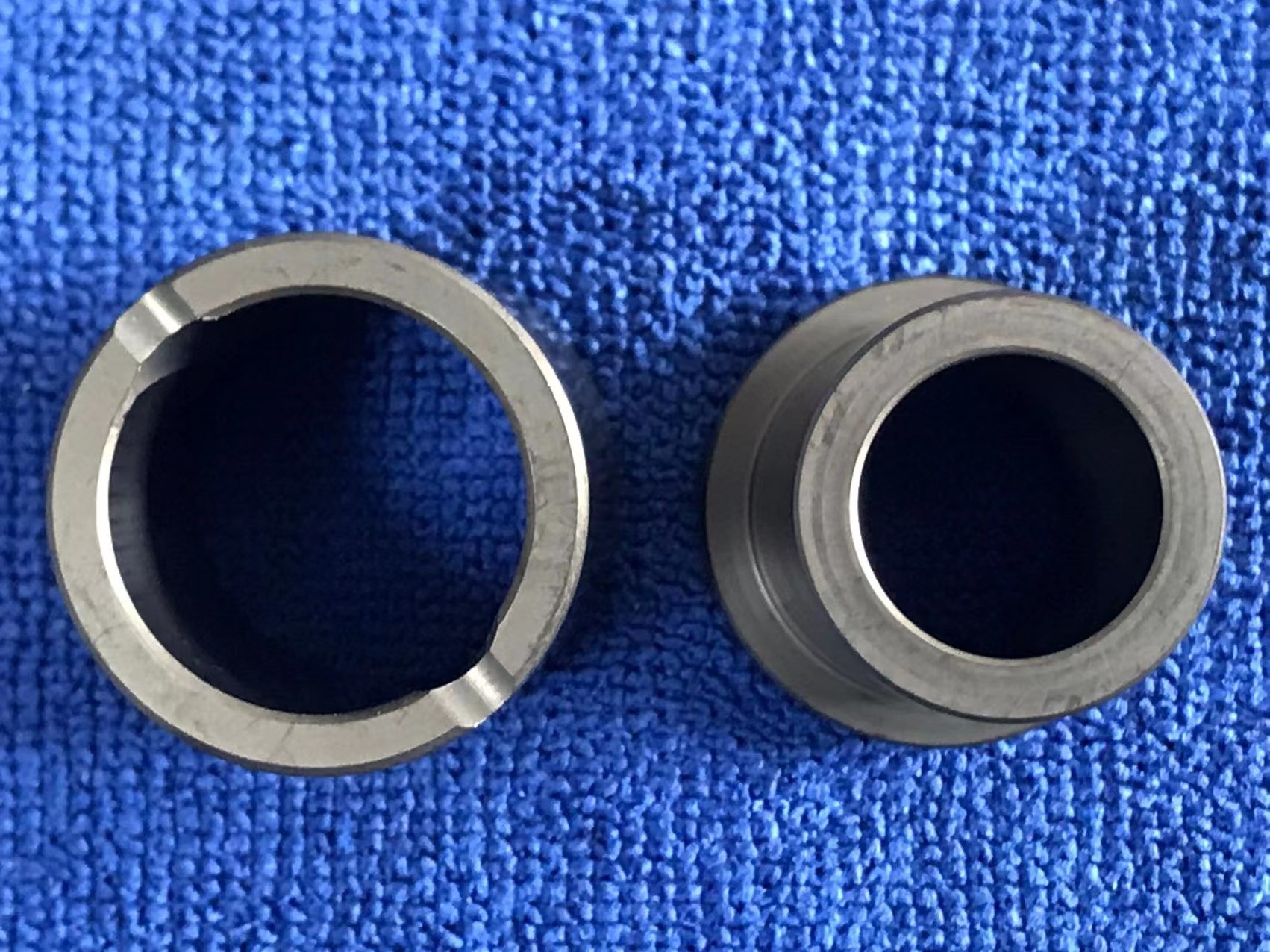

Pumps Oem Silicon Carbide Sleeve Step Assembly


Customized Silicon Carbide Sliding Bearing

Description of Sliding Bearing:

Ceramic sliding bearings are a type of advanced bearing technology used in a range of industrial, automotive, and aerospace applications. They are constructed using advanced ceramic materials such as silicon nitride, silicon carbide or zirconia, which offer several benefits over traditional steel bearings.

One of the primary advantages of ceramic sliding bearings is their high resistance to corrosion. Ceramic materials are highly resistant to corrosion and can withstand exposure to harsh chemicals and environments, making them ideal for use in corrosive applications such as chemical processing or marine applications.

Ceramic sliding bearings also offer reduced friction and wear. The smoother and harder surfaces of ceramic materials reduce friction and wear between the bearing and the component it supports, resulting in improved performance and longer lifespan for the pump and its components.

Ceramic sliding bearings are also much stronger and more durable than traditional steel bearings, which makes them ideal for high-stress applications where strength and durability are critical. Additionally, ceramic materials are much lighter than steel, which can reduce the overall weight of the pump and improve performance in applications where weight is a concern.
Overall, ceramic sliding bearings are a high-performance component that can provide improved corrosion resistance, reduced friction, high temperature tolerance, high strength and durability, and lightweight over traditional steel bearings. They areideal for use in applications where traditional steel bearings may not provide the necessary performance or durability. When choosing ceramic sliding bearings, it is important to select a high-quality ceramic material and ensure proper installation and maintenance to maximize their benefits and lifespan.

Properties


The main difference between ceramic bearings and steel bearings


1. Friction:
Ceramic balls are rounder, lighter, harder, and smoother than steel balls because they are not porous. This reduces friction and energy loss, allowing your equipment to run more efficiently (and for longer) using ceramic ball bearings. Because of their relative smoothness, ceramic ball bearings require less lubrication than steel bearings.

2. Corrosion:
Steel balls corrode over time, and ceramic balls do not corrode even when perfectly lubricated. In fact, in terms of corrosion, the service life of ceramic mixed ball bearings may be ten times that of steel bearings.

3. Bearing seat ring:
Ceramic balls have much lower elasticity than steel balls, and keep this in mind when considering upgrading to ceramic bearings. If you encounter heavy spindle loads or spindle collisions, ceramic balls are more likely to cause damage (indentation) to the bearing raceway. Over time, dents in the raceway will grow larger, eventually leading to spindle failure.

4. Electrical conductivity:
Ceramic bearings are non-magnetic and non-conductive, so they are usually preferred in applications where electrical conductivity needs to be considered. For example, if your motor is controlled by a variable frequency driver.

Why choose us

Our factory and processing machine:

We have three factories in China, can meet the needs for different custmers, and also we have advanced pressing, sintering and processing machines.

Our company logo is ZXSQ and CSQ, and possesses eleven invention patents for utility models. The company now has a high-quality professional team consisting of dozens of members, to provide you with high-quality and perfect service, according to customer requirements to order a variety of bearing products.

Since the year of 1982 we have accumulated abundant experience in the production over the past more than 40 years, devoting ourselves whole -heartedly to the research and development of ceramic bearing material, our processing technique and improvement of our equipments.
Having undergone several evolution and transformation, our company has now become the leading enterprise in China domestic market in the fields of ceramic bearing and ceramic material products.

According to the structure difference, it can be divided into: external gear pump and internal gear pump. Our company has ample production experience of both kind of the gear pump sliding bearing in material of silicon carbide. We did supply these SSiC sliding bearing for Germany Witte for many years.



Our Bearing Advantage:


1. Free Sample bearing

2. ISO Standard

3. In Stock bearing

4. Bearing Small order accepted

5. OEM bearing service

6. Customized bearing, Customer’s bearing drawing or samples accepted

7. Competitive factory price bearing


FQA

Q:Who are we?
A:We are a factory in Beijing, China. We have been producing and selling ceramic bearings for more than 40 years. We have established friendly cooperative relations with many domestic and foreign companies.

Q:How can we guarantee quality?
A:We always produce samples before mass production, and produce in strict accordance with customer requirements and production regulations. After the completion of production, we will use inspection equipment to carry out precise inspection of products, and our packaging adopts the double insurance of foam and carton, to strictly ensure the quality of products.

Q:What can you buy from us?
A:Ceramic deep groove ball bearings, ceramic angular contact ball bearings, hybrid ceramic ball bearings, ceramic linear bearings, etc and all kinds of ceramic balls.

Q:Why should you buy from us not from other suppliers?
A:We are an industry and trade integrated company, we have three factories, with today's production and inspection equipment, can provide better delivery dates and product quality.

Q:What service can we provide?
A:We will provide high quality products and customized services, which can be fully customized according to user needs. We can provide samples for customer's confirmation.

Welcome your enquiry

We cooperate with raw material suppliers to ensure product quality and profit stability without being affected by international raw material price fluctuations. It is not suppressed by foreign enterprises by raising the price of raw materials. At the same time with raw material production technology, when necessary, we can produce raw materials by ourselves.

We adhere to customer demand as the guidance, and strive to provide customers with quality products and after-sales service, create value for customers, do customers partner. Welcome to discuss the cooperation!
