625 626 627 Hybrid Ceramic Bearing Super Precision Steel Races
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | 20 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 20 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hybrid Ceramic Bearing | Model | Customized |
|---|---|---|---|
| Races Material | Stainless Steel/ Bearing Steel Or Other Steel You Need | Ball Material | HIP-ZrO2/HIP-Si3N4 |
| Structure | Full Balls Ceramic Bearings | Pacage | Plastik Box+carton Box |
| Highlight | 625 ceramic bearing,626 ceramic bearing,627 ceramic bearings |
||
Product Description

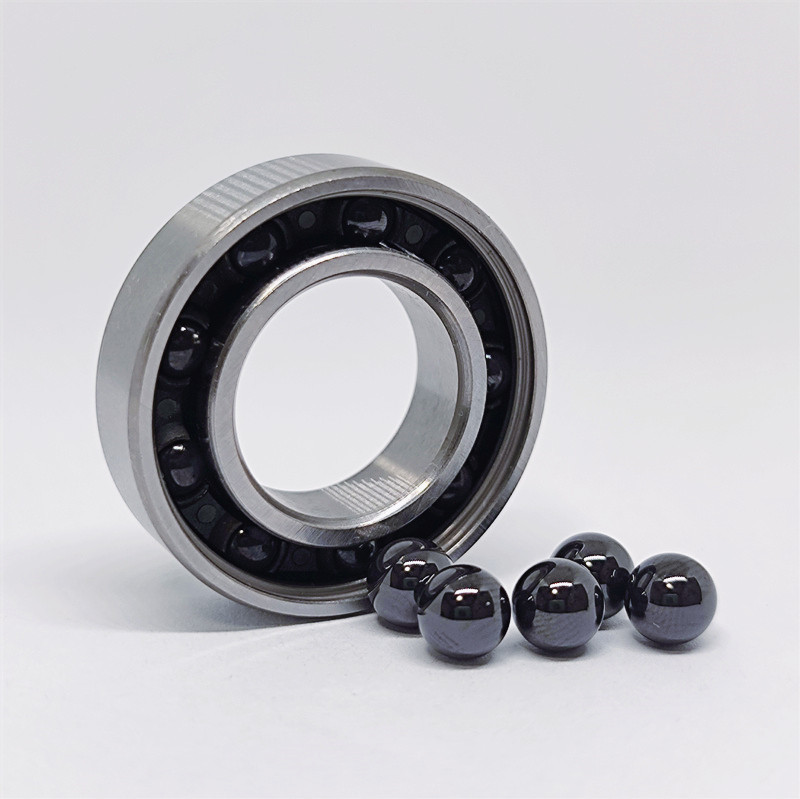

Hybrid Ceramic Bearing In Material Of Steel Races+Ceramic Balls
1. The races can be in material of Stainless steel/ Bearing steel or other steel you need.
2. The balls can be in material of zirconia, silicon nitride, which can be sintered through hot isostatic sintering technology.
3. They are non-magnetic, non-conductive, low noise, electrically insulated, non-locking at high speeds, resistant to dry friction, long life, cost effective and etc.
Material properties of ceramic material:
| Material Properties | Units | HIP-Si3N4 | GPS-Si3N4 | HIP-ZrO2 |
| Density | g/cm3 | 3.27-3.29 | 3.22-3.27 | 6.05-6.09 |
| Porosity | % | 0 | 0 | 0 |
| Fledural Strength | MPa | 830 | 689 | 900 |
| Elastic Modulus | GPa | 310 | 310 | 200 |
| Hardness | HV5 | 1580 | 1450 | 1300 |
| Fracture Toughness KIC | MPa.m1/2 | 6.1 | 5.7 | 8-11 |
| Maximum Use Temperature | ℃ (℉) |
1000 (1830) |
1000 (1830) |
380 (716) |
