CSQ Hybrid Ceramic Bearings with Corrosion Resistance and High-Speed Performance for Long Service Life
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Certification | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Model Number | Customized products |
| Minimum Order Quantity | 50pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | Negotiable |
| Payment Terms | T/T |
| Supply Ability | 2000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Silicon Nitride, Zirconia | Applications | High-speed Machinery, Electric Motors, Aerospace, Medical Devices |
|---|---|---|---|
| Feature | Ultra High Speed | Bearing Type | Customized Products |
| Name | Hybrid Ceramic Bearings | MOQ | 50 PCS |
| Highlight | Corrosion Resistance Hybrid Ceramic Bearings,High-Speed Performance Ceramic Ball Bearings,Long Service Life Si3N4 Bearings |
||
Product Description

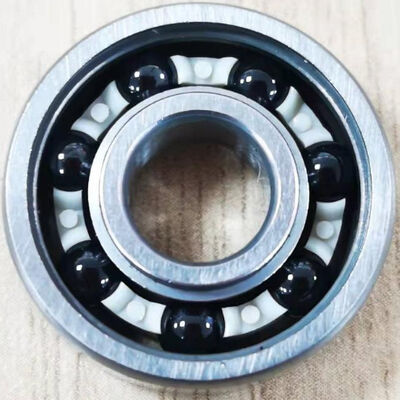

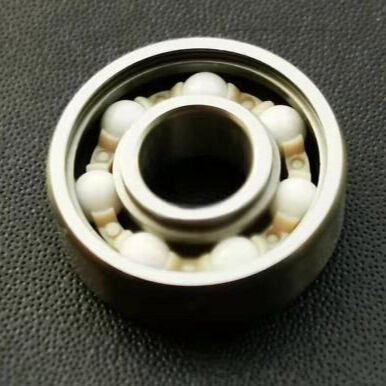

CSQ Hybrid Ceramic Bearings Corrosion Resistance 608-2Z Silicon Nitride Zirconia
Hybrid Ceramic Bearings with Si₃N₄ Ceramic Balls
Our hybrid ceramic bearings feature races available in GCr15 bearing steel, M50 steel, 440C stainless steel, and high-temperature resistant bearing steel. These are precision-matched with G5 grade silicon nitride balls manufactured using advanced GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology. The bearings are completed with machined or injection-molded PEEK cages and double-sided or single-sided PEEK seals.
Hybrid Ceramic Bearings with ZrO₂ Ceramic Balls
These hybrid bearings utilize races in GCr15 bearing steel, M50 steel, 440C stainless steel, or high-temperature resistant bearing steel, combined with HIP (Hot Isostatic Pressure) hot isostatic sintered zirconia balls. The cage and seals structure mirror those used in our silicon nitride hybrid ceramic bearings, providing consistent performance across our product line.
Core Advantages and Technical Specifications
| Category | Specific Advantage | Technical Explanation |
|---|---|---|
| High-Speed Performance | Excellent high-speed capability | Low-density ceramic balls reduce centrifugal force, minimizing heat generation and enabling 30-60% higher operational speeds |
| Service Life | Exceptionally long service life | Superior hardness and wear resistance deliver 3-5 times longer fatigue life compared to standard bearings |
| Stiffness & Temperature | High rigidity & low temperature rise | High elastic modulus increases system rigidity while low friction and self-lubrication properties minimize heat generation |
| Harsh Environment Resistance | Corrosion resistance | Excellent resistance to moisture and chemical corrosion, maintaining performance in demanding environments |
| High-temperature Resistance | Stable operation >400°C | Maintains structural integrity and performance stability at temperatures exceeding 400°C |
| Preload Stability | Stable preload under thermal variation | Low thermal expansion coefficient ensures minimal preload changes with temperature fluctuations |
