HIP ZrO2 Ball Bearing Hybrid Ceramic Steel Races Insulated

  • HIP ZrO2 Ball Bearing Hybrid Ceramic Steel Races Insulated
  • HIP ZrO2 Ball Bearing Hybrid Ceramic Steel Races Insulated
  • HIP ZrO2 Ball Bearing Hybrid Ceramic Steel Races Insulated
Place of Origin China
Brand Name CSQ
Model Number 6000/6200/6300 series
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Plastik box+carton box
Delivery Time 20 work days
Payment Terms T/T
Supply Ability 50 pcs in 20 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Insulative Hybrid Ceramic Bearings Structure Deep Grove Bearing
Material GCr15 Races+HIP-ZrO2 Balls Cage Material Stainless Steel/Nylon/Peek/
Precision ZV3/ZV4 Pacage Plastik Box+carton Box
Highlight

CSQ HIP ZrO2 Ball bearing

,

CSQ ZrO2 Ball bearing hybrid ceramic

,

CSQ hybrid ball bearings
Leave a Message
Product Description

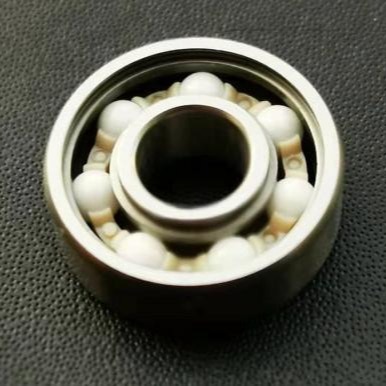

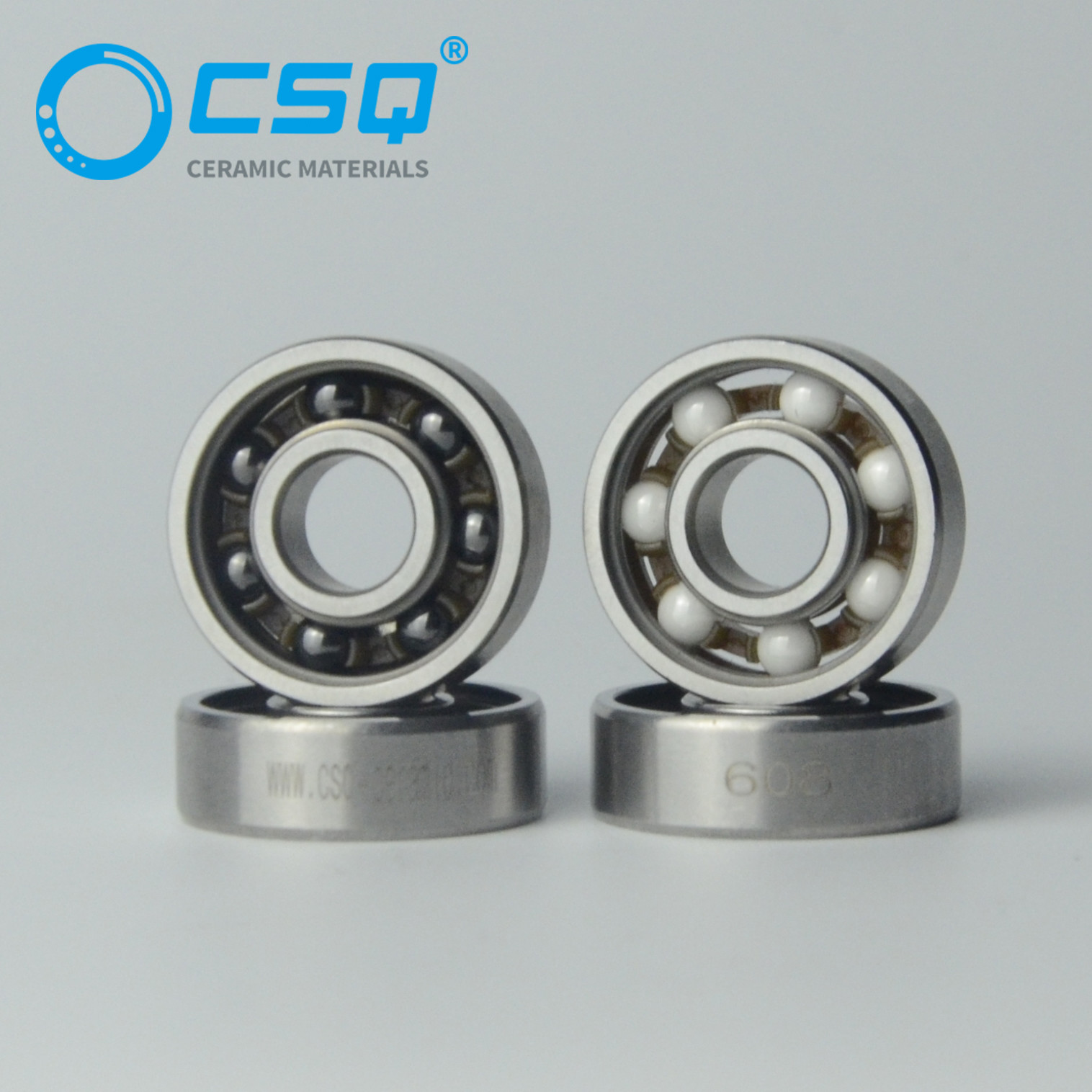

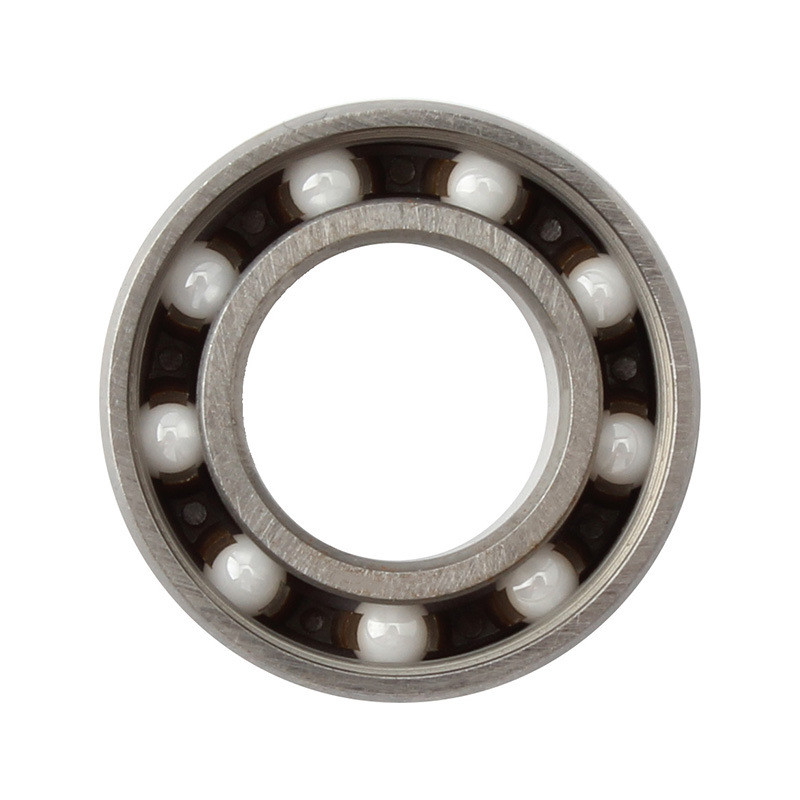

Insulative Hybrid Ceramic Bearing Of Steel Races+HIP-ZrO2 Balls

Why choose us:


Zhongxing Shiqiang Technology (Tianjin) Co., Ltd. mainly produces ceramic rolling bearings and ceramic balls. At present, the company has a production line for automatic grinding and assembly of ceramic bearings, and designs an annual output of 3 million sets of 608 all-ceramic bearings and mixed ceramic bearings whose precision grades can reach P5 and P4. As professional ceramic bearing manufacturer, we can supply many kinds of material combination according to your rrequirement, following is our alternative possibilities:



Bearing Model Part of bearings Material option
Hybrid Ceramic Bearing Races GCr15/Stainless steel/ Other steel
Hybrid Ceramic Bearing  Balls HIP-ZrO2
Hybrid Ceramic Bearing  Cage Stainless steel/ Nylon/ Peek/
Hybrid Ceramic Bearing  Seal (Single or double) Non/ Rubber/ Stainless steel/ Peek /

Performance advantages of Hybrid Ceramic Bearing :

Non-magnetic, non-conductive, low noise, electrically insulated, non-locking at high speeds, resistant to dry friction, long life, cost effective and etc.Because of the good properties and low cost of zirconia material, the hybrid ceramic bearings fitted with zirconia ceramic balls are more cost-effective.

►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5













HIP ZrO2 Ball Bearing Hybrid Ceramic Steel Races Insulated 0

HIP ZrO2 Ball Bearing Hybrid Ceramic Steel Races Insulated 1
