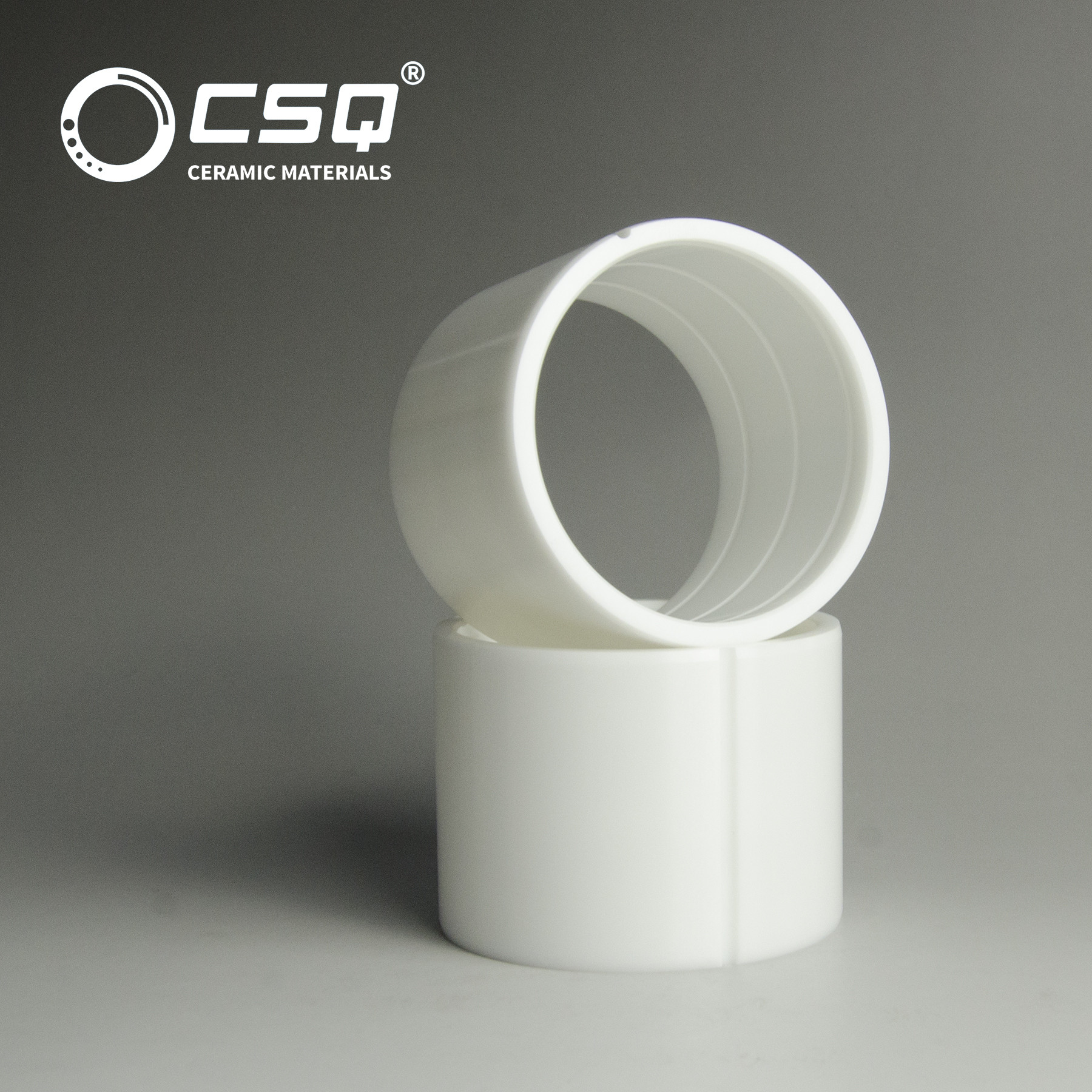

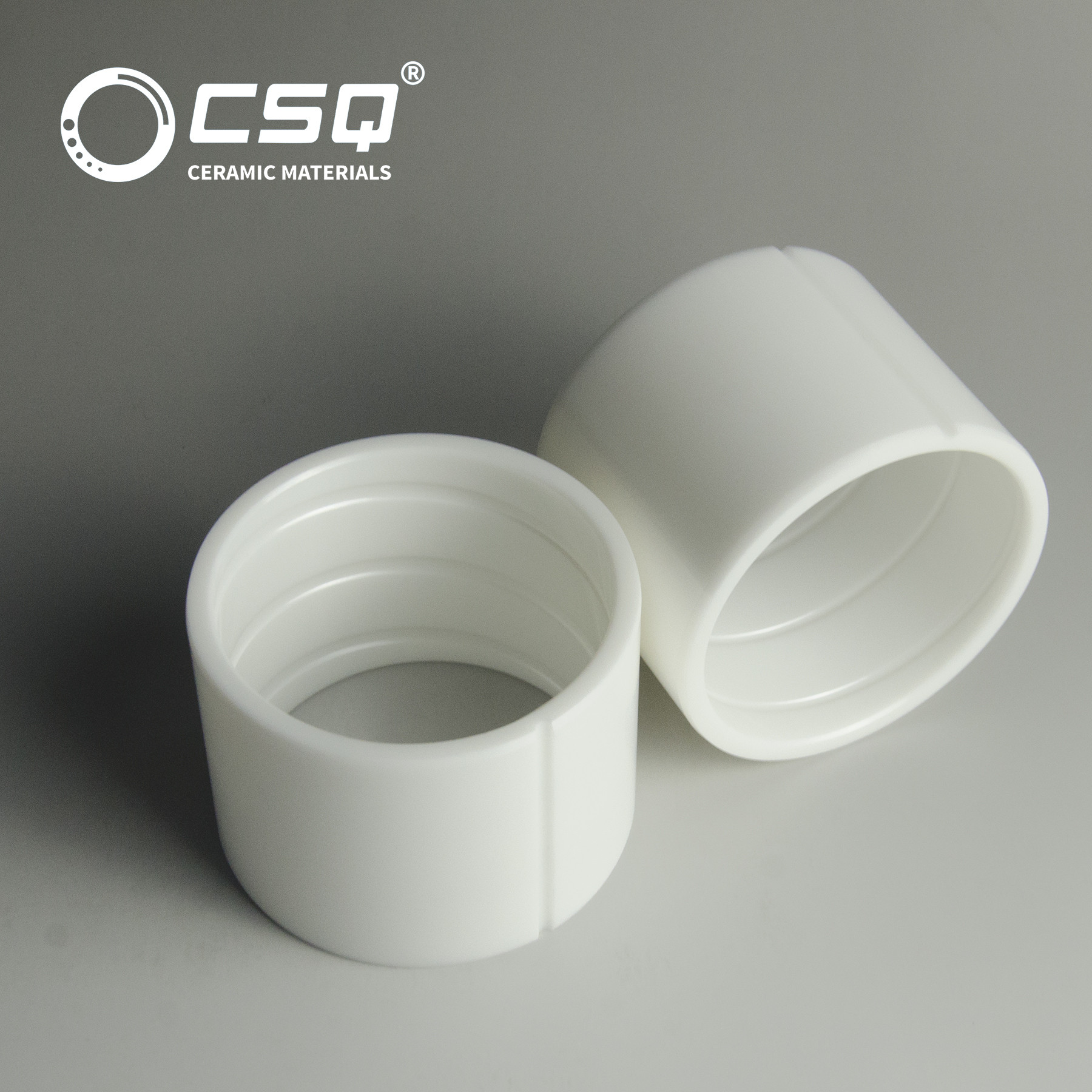

Zirconium Ceramic Zirconia Oxide Ball Bearing Spiral Bushing For Pumps

  • Zirconium Ceramic Zirconia Oxide Ball Bearing Spiral Bushing For Pumps
  • Zirconium Ceramic Zirconia Oxide Ball Bearing Spiral Bushing For Pumps
Place of Origin China
Brand Name CSQ
Model Number Customized
Minimum Order Quantity 20 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time 40-50 work days
Payment Terms T/T
Supply Ability 20 pcs in 40-50 days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Spiral Bushing Category Ceramic Sliding Bearing
Material Silicon Carbide Or Zirconia Size Customized, According To The Drawings
Use In Pump MOQ 20 Pieces
Pacage Foam+cartom Box Delivery Time 40-50 Work Days
Highlight

Zirconia Oxide Ball Bearings CSQ

,

zirconium oxide ball bearings CSQ

,

Spiral Bushing For Pumps CSQ
Leave a Message
Product Description



Customized Spiral Bushing For Pumps Of Silicon Carbide Or Zirconia



Description of ceramic spiral bushing:



Because of the excellent properties of silicon carbide and zirconia material, especially their good chemical stability and corrosion resistance, they are widely used in the industries with special working condition. Our company can customize the spiral bushings of SSiC or ZrO2 according to customer's drawings of many kinds of size. We had stably supplied ceramic spiral bushings for European pump companies, like Witte Maag for many years.



►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)
























►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5



























Zirconium Ceramic Zirconia Oxide Ball Bearing Spiral Bushing For Pumps 0
