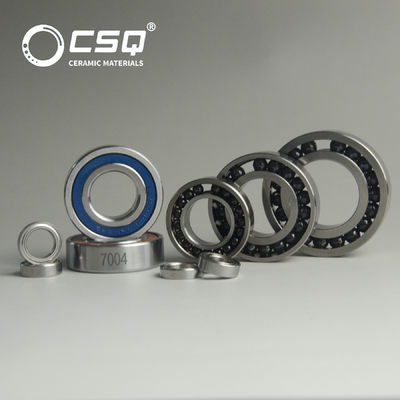

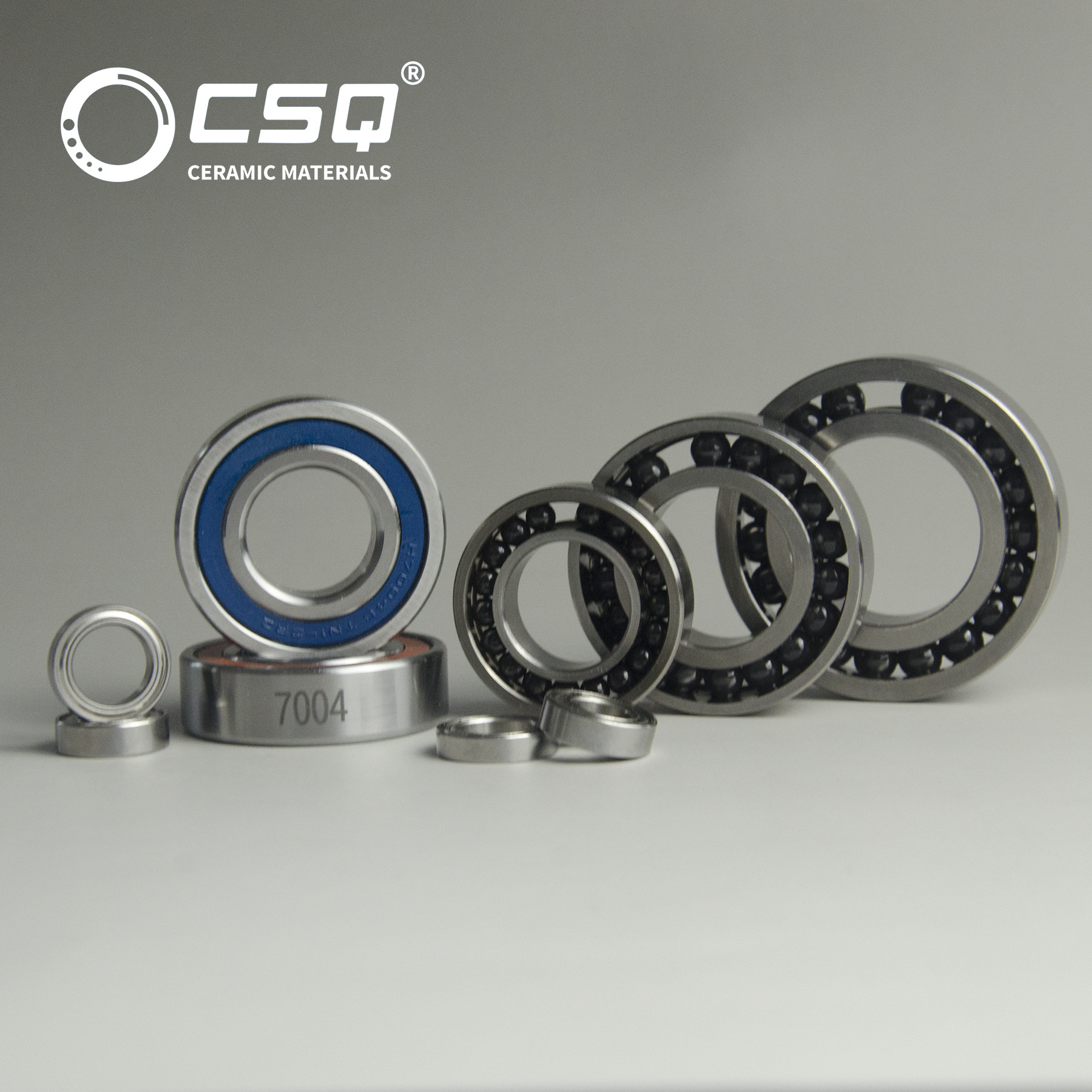

All Ceramic Hybrid Roller Bearings Steel Races CSQ

  • All Ceramic Hybrid Roller Bearings Steel Races CSQ
  • All Ceramic Hybrid Roller Bearings Steel Races CSQ
Place of Origin China
Brand Name CSQ
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Plastik box+carton box
Delivery Time Negotiable
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hybrid Ceramic Roller Bearing Category Deep Groove Hybrid Ceramic Bearing
Races Material Stainless Steel/ Bearing Steel Or Other Steel You Need Roller Material ZrO2/Si3N4/SSiC
MOQ 50 Pieces Pacage Plastik Box+carton Box
Highlight

all ceramic bearings

,

ceramic roller bearings

,

hybrid rolling bearings
Leave a Message
Product Description

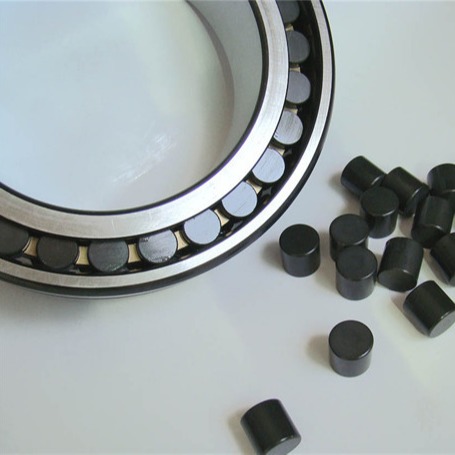

Hybrid Ceramic Roller Bearing of Steel Races+Ceramic Roller

Description of Hybrid Ceramic Roller Bearing:

Our company can volume produce hybrid ceramic roller bearings in material of  steel races assembled with ceramic rollers The races can be chosen among stainless steel/ bearing steel or other steel you need and the rollers can be zirconia, silicon nitride and silicon carbide ceramic rollers. The hybrid ceramic ball bearing combines the nice wear resistance of steel and the excellent resistance to corrosion and good electric and magnetic insulation of ceramic material.

Material properties of ceramic material:

Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature ℃
(℉)		 1650
(3000)		 1000
(1830)		 1000
(1830)		 380
(716)
