Stainless Steel Hybrid Ceramic Bearing 608 8×22×7mm

  • Stainless Steel Hybrid Ceramic Bearing 608 8×22×7mm
  • Stainless Steel Hybrid Ceramic Bearing 608 8×22×7mm
  • Stainless Steel Hybrid Ceramic Bearing 608 8×22×7mm
  • Stainless Steel Hybrid Ceramic Bearing 608 8×22×7mm
Place of Origin China
Brand Name CSQ
Model Number 608
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Plastik box+carton box
Delivery Time 5 work days
Payment Terms T/T
Supply Ability 50 pcs in 5 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hybrid Ceramic Bearing 608 Size 608: 8×22×7mm
Races Material Stainless Steel/ Bearing Steel Or Other Steel You Need Ball Material 3.969mm In Material Of ZrO2/Si3N4
Cage And Seals Peek//Rubber/Stainless Steel Pacage Plastik Box+carton Box
Highlight

ceramic stainless steel hybrid bearings

,

608 ceramic hybrid bearing

,

Hybrid Ceramic Bearing 8×22×7mm
Leave a Message
Product Description

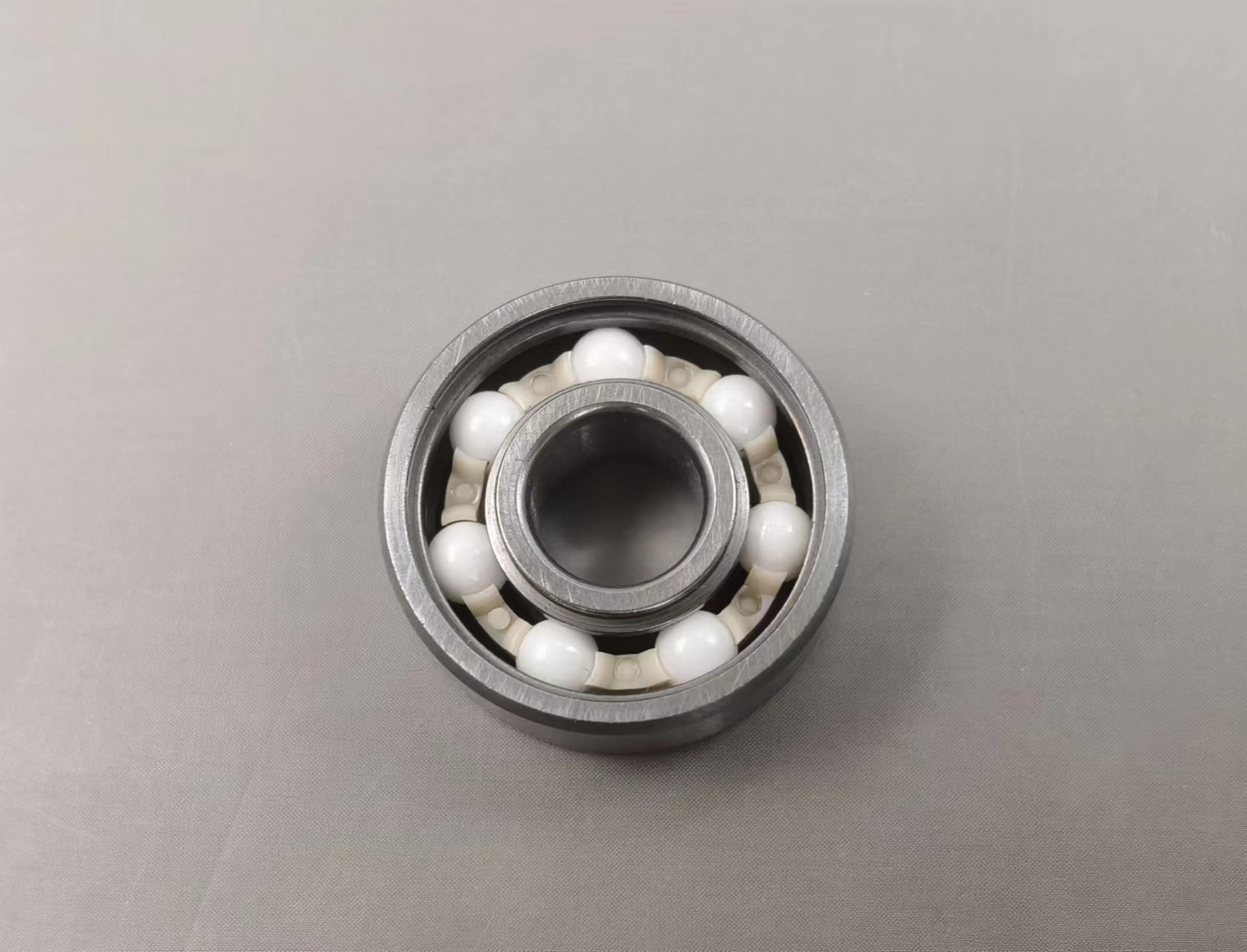

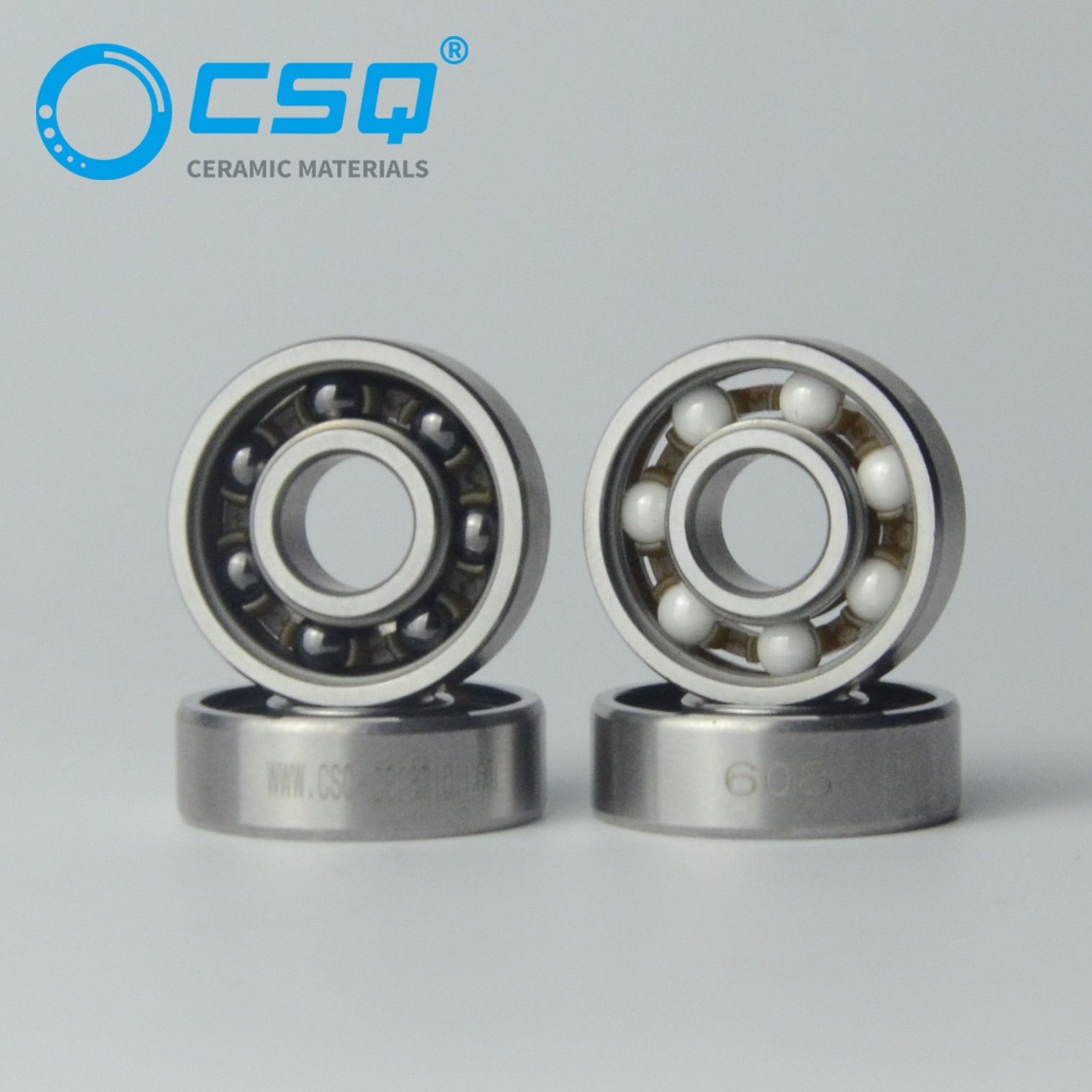

Hybrid Ceramic Bearing 608 of Steel Races+Ceramic Balls

Description of Hybrid Ceramic Bearing 608:

Our company has an automatic assembly production line for 608 bearings, can volume produce 608 bearings in steel or ceramic material and in C2/C3 or other customized clearance to meet your different demands. The races can be in material of Stainless steel/ Bearing steel or other steel you need and the balls can be in material of zirconia, silicon nitride and silicon carbide. The hybrid ceramic bearing 608 combines the nice wear resistance of steel and the excellent resistance to corrosion and to high temperature of ceramic material. They are non-magnetic, non-conductive, low noise, electrically insulated, non-locking at high speeds, resistant to dry friction, long life, cost effective and etc.

Material properties of ceramic material:

Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature ℃
(℉)		 1650
(3000)		 1000
(1830)		 1000
(1830)		 380
(716)
