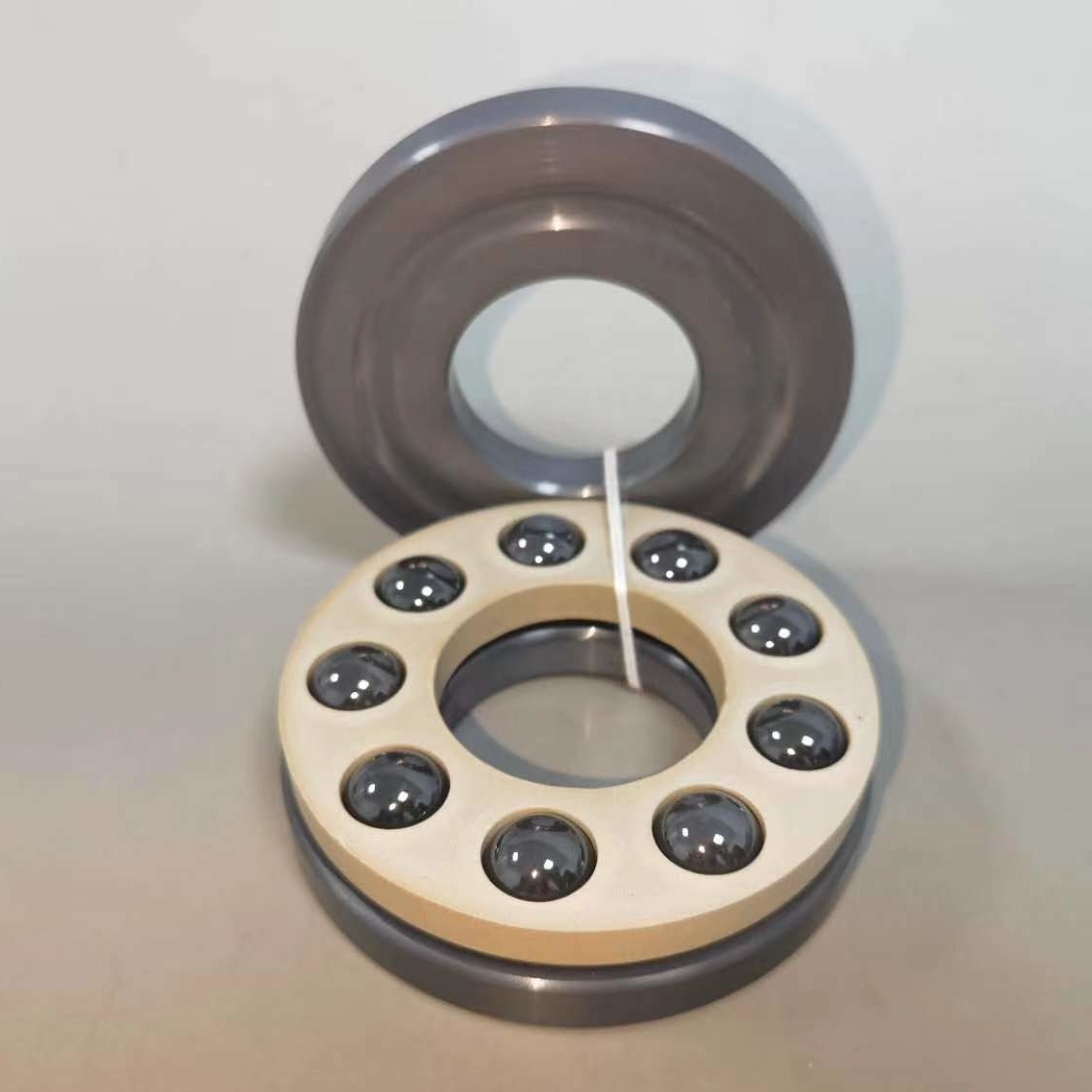

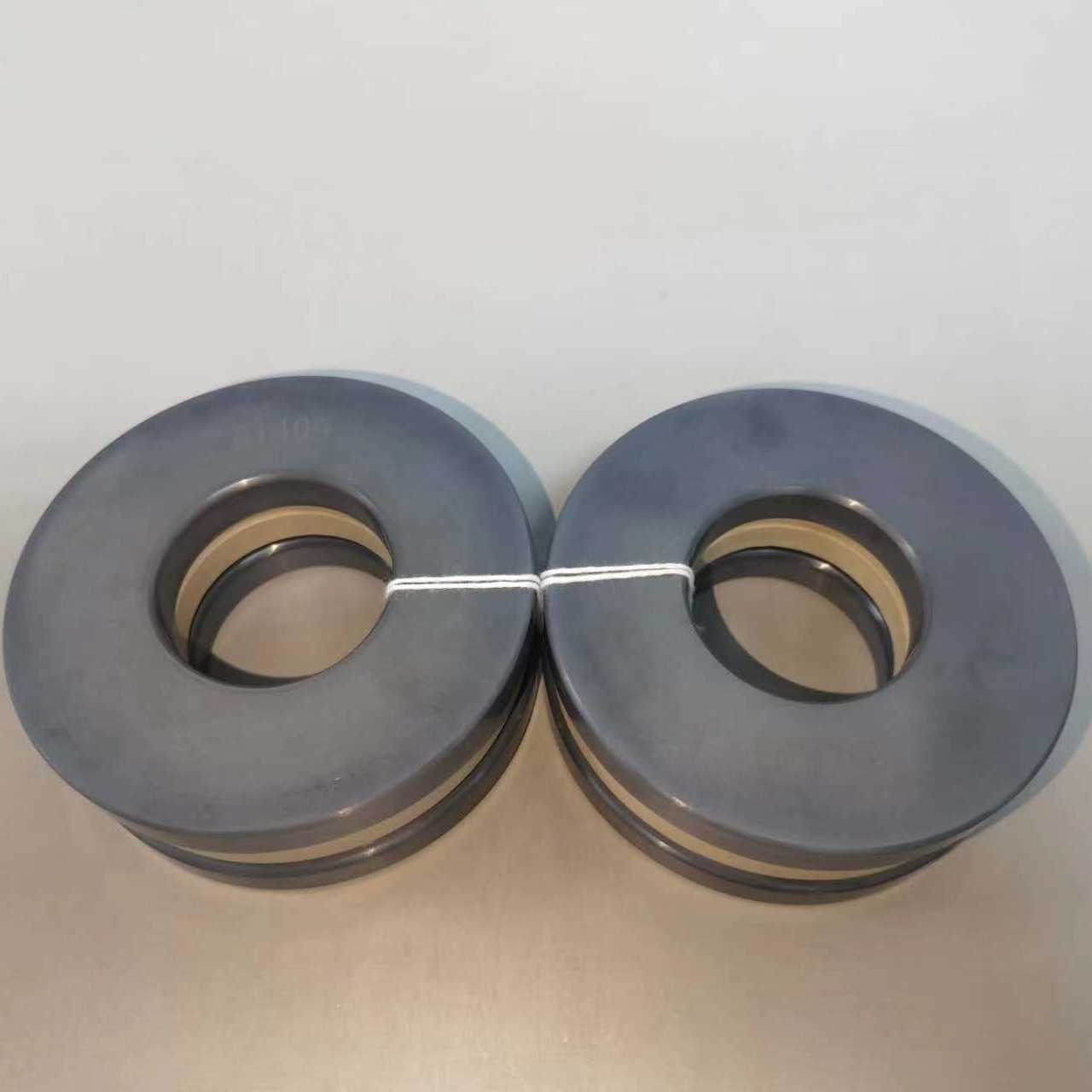

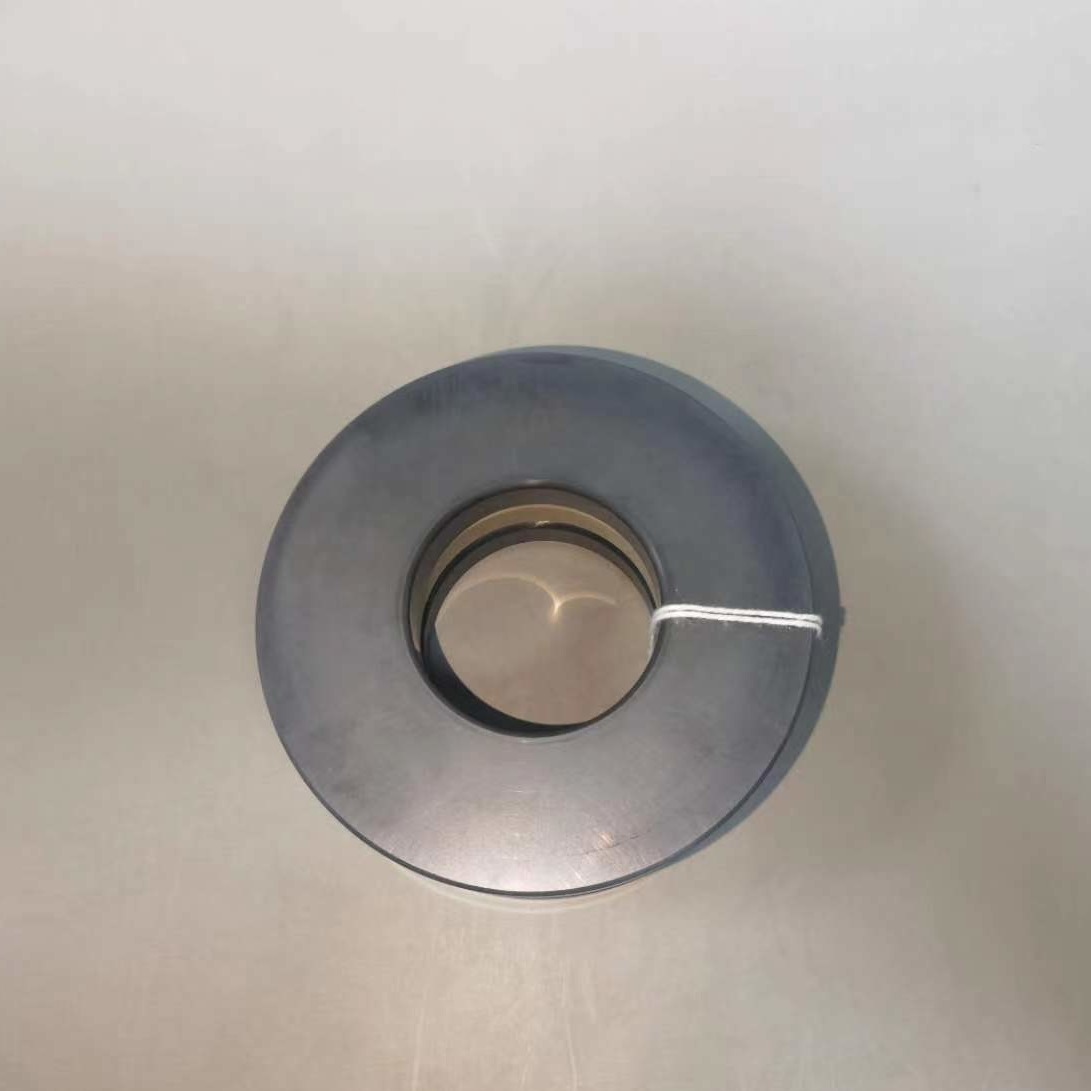

Full Ceramic Si3n4 Bearing 51409 45×100×39mm

  • Full Ceramic Si3n4 Bearing 51409 45×100×39mm
  • Full Ceramic Si3n4 Bearing 51409 45×100×39mm
  • Full Ceramic Si3n4 Bearing 51409 45×100×39mm
Place of Origin China
Brand Name CSQ
Model Number 51409
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time 40-60 work days
Payment Terms T/T
Supply Ability 50 pcs in 40-60 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Thrust Bearings 51409 Category Ceramic Thrust Bearing
Material Si3N4 Races/Balls+Peek Cage Size 45×100×39mm
Color Brownish Red Pacage Foam+cartom Box
Highlight

full ceramic si3n4 bearing 51409

,

ceramic si3n4 bearings 51409

,

si3n4 bearings 51409
Leave a Message
Product Description



Ceramic Thrust Bearings 51409 Of Si3N4 Races And Balls+Peek Cage



Description of Ceramic Thrust Bearings 51409:



1. Si3N4 races balls: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.



2. PEEK cage: The crown structure cages are adopted British Victrex PEEK material and injection molded at high temperature, so have high strength, light body. PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics.



Model: 51409CE Material
Races Si3N4
Balls Si3N4
Cage Peek



Application of Ceramic Thrust Bearings 51409:



Silicon nitride bearings can maximun work at 1000℃, have high fracture toughness (6.1 MPa-m1/2) and high hardness (1580 HV5), both have outstanding wear resistance, good resistance to many kinds of acid and alkali corrosion and excellent electric and magnetic insulation.



Full Ceramic Si3n4 Bearing 51409 45×100×39mm 0

Full Ceramic Si3n4 Bearing 51409 45×100×39mm 1
