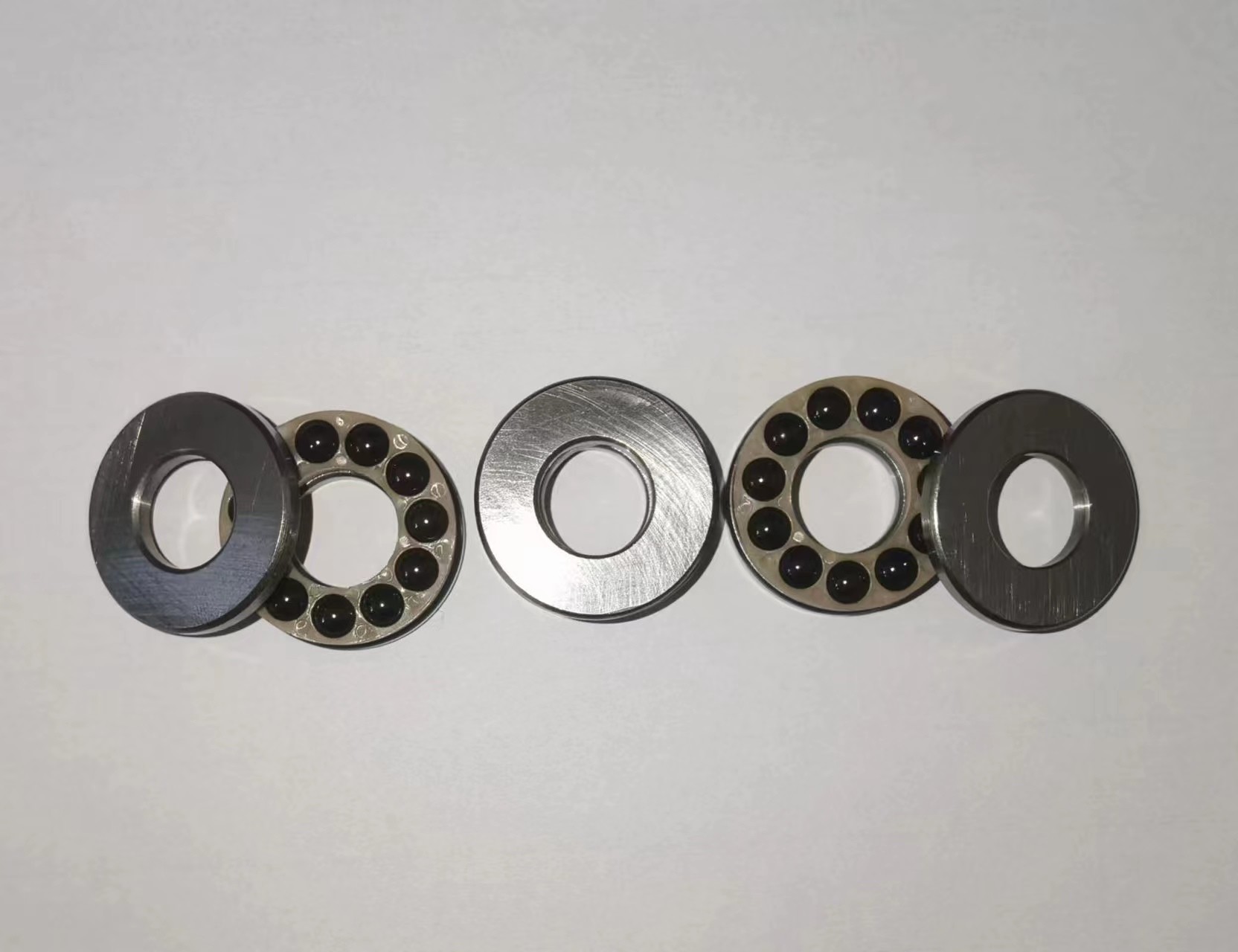

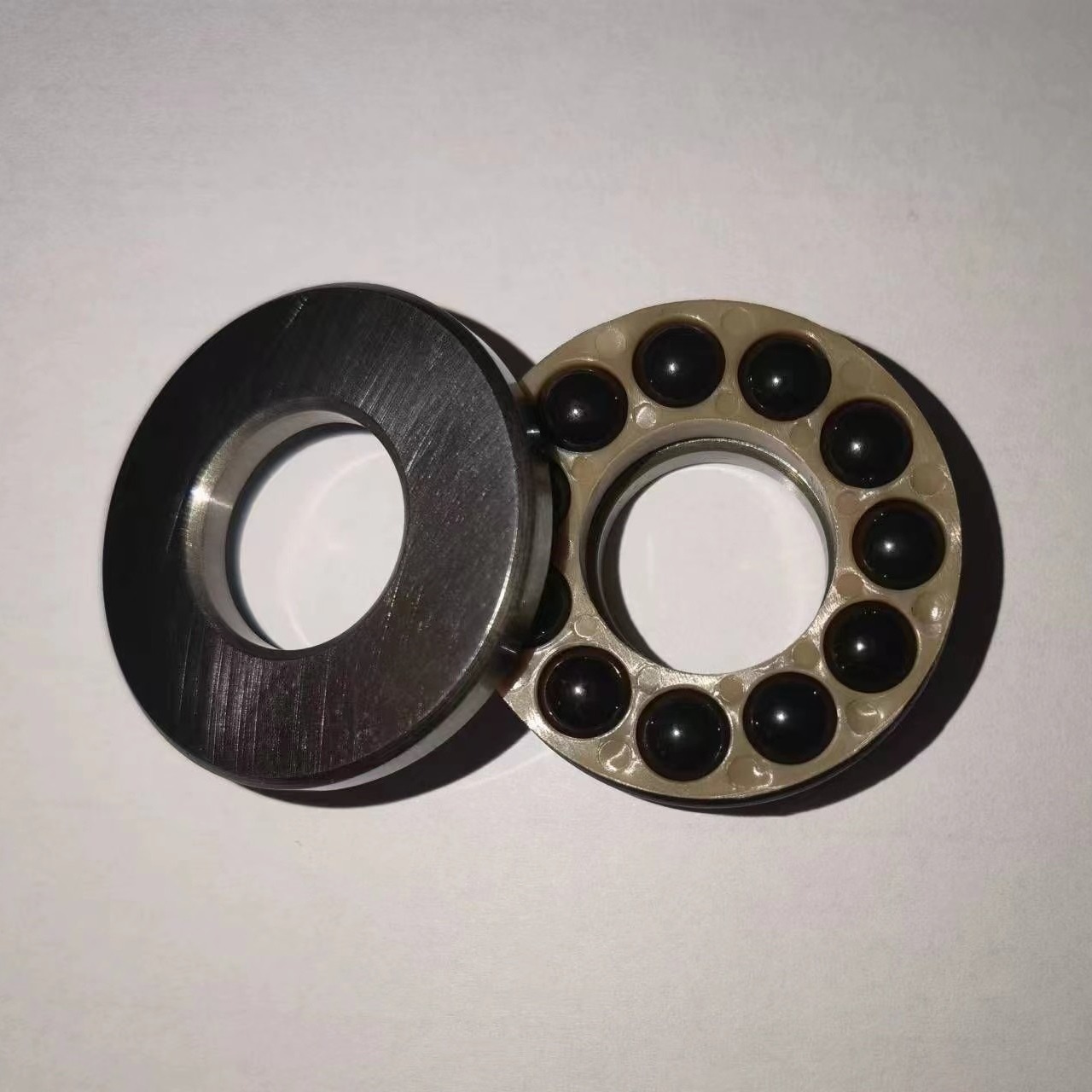

51202 Hybrid Ceramic Bearings Thrust 15×32×12mm
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 51202 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Foam+cartom box |
| Delivery Time | 20 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 20 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hybrid Ceramic Thrust Bearings 51202 | Category | Ceramic Ball Bearing |
|---|---|---|---|
| Material | Steel Races+Si3N4 Balls+Peek Cage | Ball | Si3N4 Balls Of 5.953mm |
| Size | 15×32×12mm | Pacage | Foam+cartom Box |
| Highlight | 51202 Hybrid Ceramic Bearings,Hybrid Ceramic Bearings 15×32×12mm,51202 bearing |
||
Product Description
Hybrid Ceramic Thrust Bearings 51202 Of Steel Races+ Si3N4 Balls+Peek Cage
Description of Hybrid Ceramic Thrust Bearings 51202:
1. Steel races: Races can be chosen among GCr15 bearing steel, M50 steel, 440C stainless steel, high temperature resistant bearing steel, etc.,
2. Si3N4 balls: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology. Compared with GPS sintered silicon nitride material, the porosity, wear resistance, crushing value and fatigue contact life of after HIP sintered sinlicon nitride have been greatly improved, which is the preferred material for ultra-high speed and high precision ceramic bearings.
3. PEEK cage: The crown structure cages are adopted British Victrex PEEK material and injection molded at high temperature, so have high strength, light body, and will be fitted to the bearings using our unique design of press-fit double-sided construction. PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics.
| ► Key properties of hot isostatic sintered silicon nitride |
| ♦ Max temperature to 1000℃ |
| ♦ High strength over a wide temperature range |
| ♦ High fracture toughness: 6.1 MPa-m1/2 |
| ♦ High hardness: 1580 HV5 |
| ♦ Outstanding wear resistance, both impingement and frictional modes |
| ♦ Good thermal shock resistance |
| ♦ Good chemical stability,resistance to acid and alkali corrosion |
| ♦ Good electric insulation |
