ZrO2 Ceramic Thrust Bearing 51104 Races Si3N4 Ball PTFE Cage

  • ZrO2 Ceramic Thrust Bearing 51104 Races Si3N4 Ball PTFE Cage
  • ZrO2 Ceramic Thrust Bearing 51104 Races Si3N4 Ball PTFE Cage
  • ZrO2 Ceramic Thrust Bearing 51104 Races Si3N4 Ball PTFE Cage
Place of Origin China
Brand Name CSQ
Model Number 51104
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Plastik box+carton box
Delivery Time 30-40 work days
Payment Terms T/T
Supply Ability 50 pcs in 30-40 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Thrust Bearing 51104 Category Ceramic Single Direction Thrust Ball Bearing
Material Zirconia Races+Silicon Nitride Balls+PTFE Cage Form Size Ø20×Ø35×110mm
Fixing Size Ø21×Ø35mm Pacage Plastik Box+carton Box
Highlight

51104 thrust bearing

,

Ceramic Thrust Bearing 51104

,

Ceramic Thrust Ball Bearings
Leave a Message
Product Description



Ceramic Thrust Bearing 51104 In Material Of ZrO2 Races+Si3N4 Balls+PTFE Cage



Description of Ceramic Thrust Bearing 51104 (ZrO2 Races+Si3N4 Balls+PTFE Cage):



1. ZrO2 races: Are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material and are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.



2. Si3N4 Balls: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and are processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.



3. PTFE cage:  has excellent resistance to molten metal sodium and liquid fluorine, to all kinds of acid and alkali corrosion and organic solvent,can work in +250℃ to -180℃ temperature for a long time.



Performance advantage of Ceramic Thrust Bearing 51104 (ZrO2 Races+Si3N4 Balls+PTFE Cage):



Ceramic Bearings Dimension Reference
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
  Cr(N) Cor(N) Grease (rpm) Oil (rpm)
51104CE 11440 20995 5300 8000

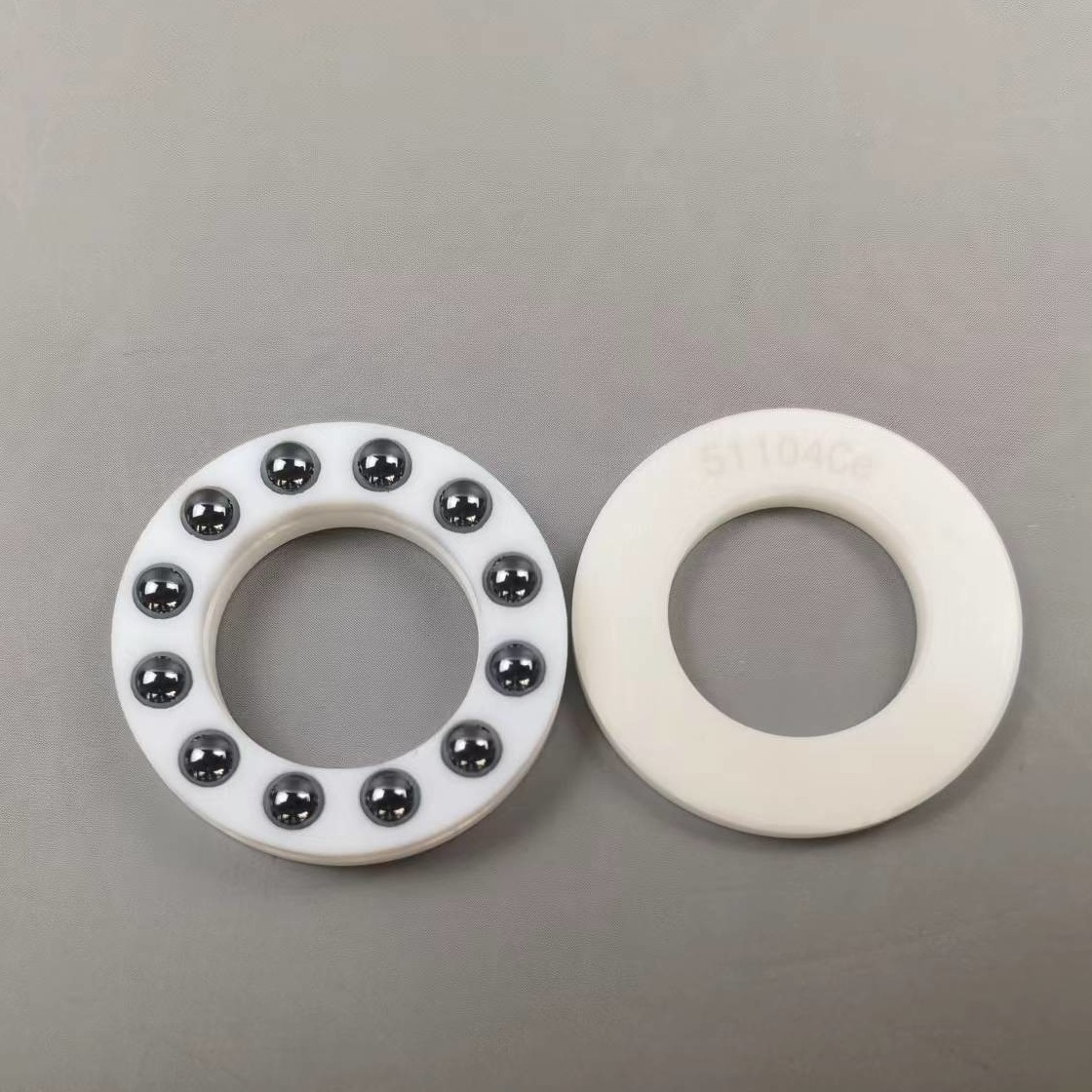

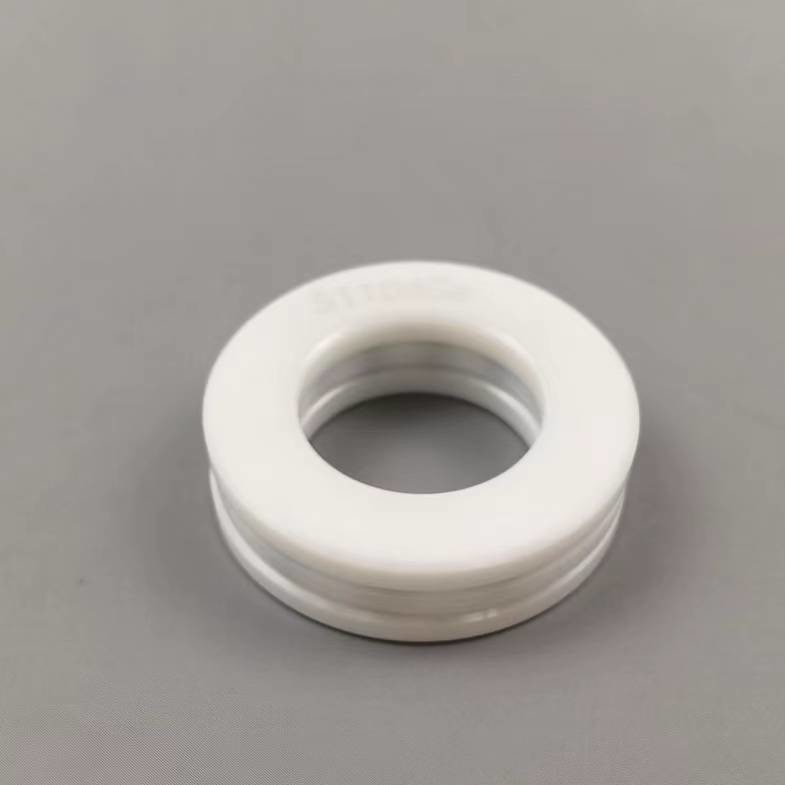

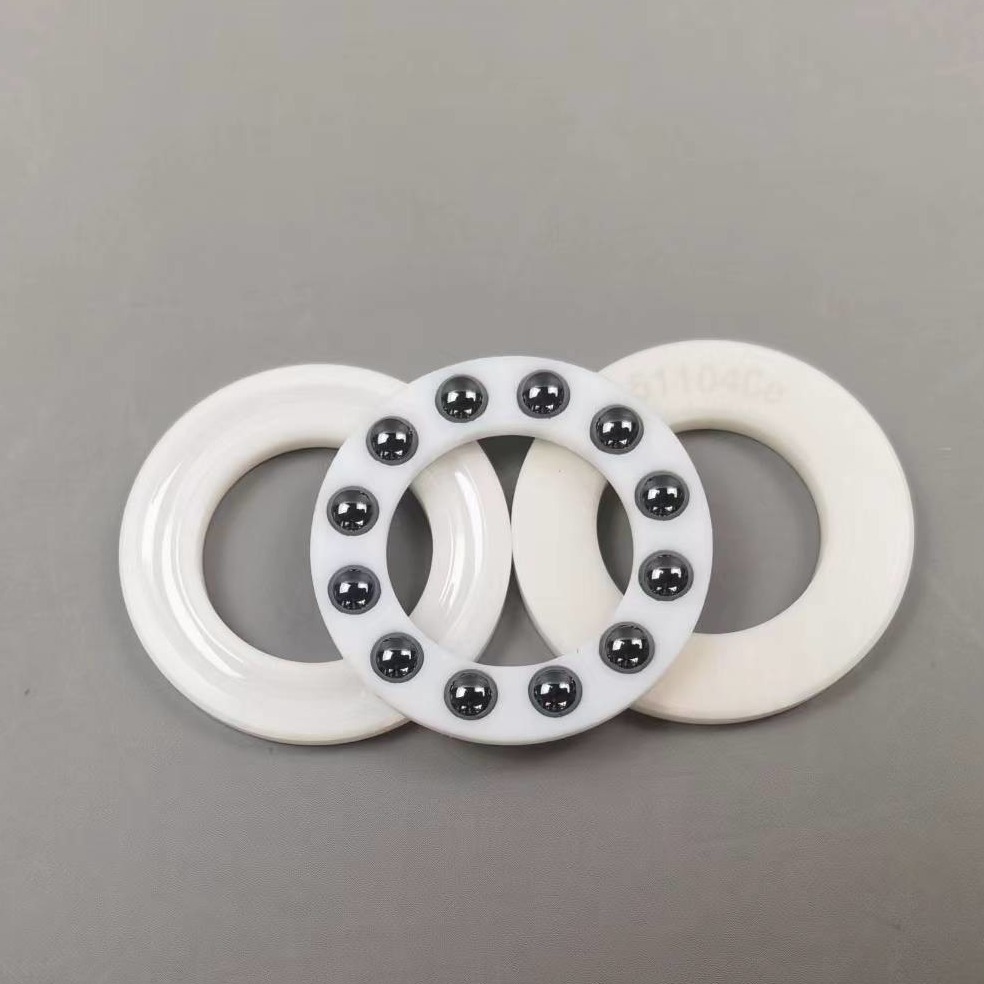

ZrO2 Ceramic Thrust Bearing 51104 Races Si3N4 Ball PTFE Cage 0ZrO2 Ceramic Thrust Bearing 51104 Races Si3N4 Ball PTFE Cage 1
