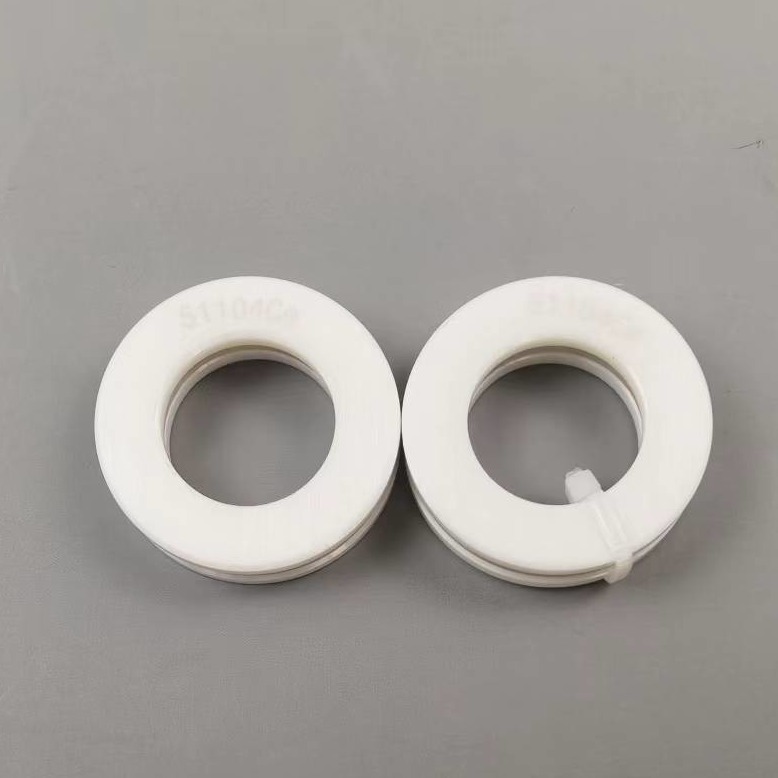

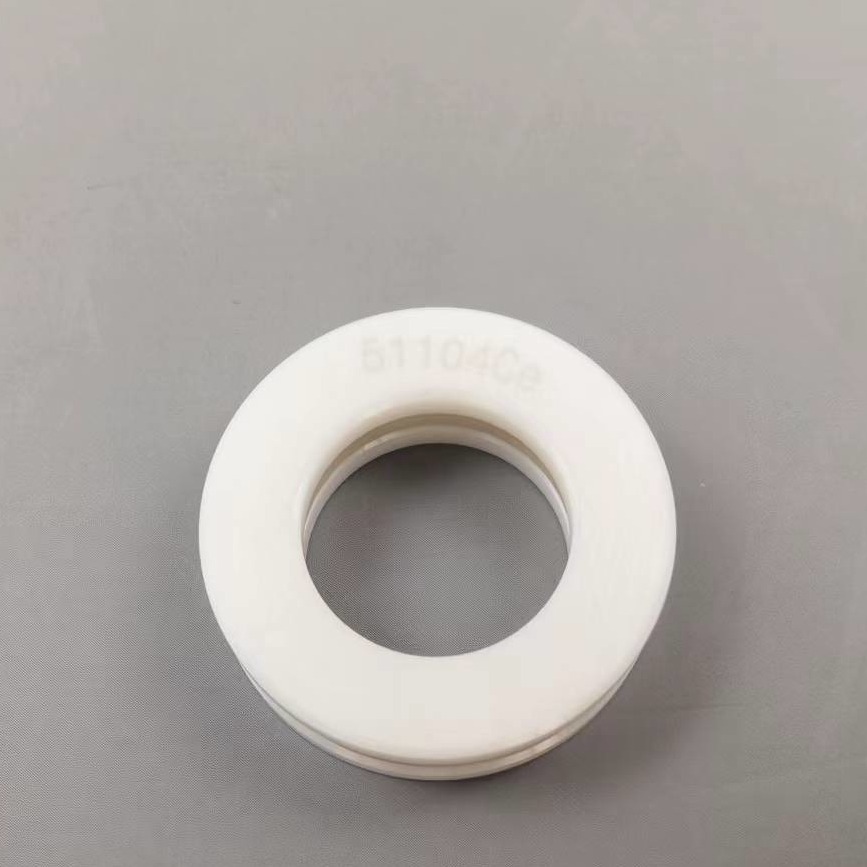

Zirconia Ceramic Bearing Thrust 51104 Peek Cage P6 ABEC 3 abec 11
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 51104 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik bag+foam+carton box |
| Delivery Time | 30-40 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 30-40 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Ceramic Thrust Bearing 51104 | Material | Zirconia Races/Balls+Peek Cage |
|---|---|---|---|
| Precision | P6/ABEC3 | Form Size | Ø20×Ø35×110mm |
| Fixing Size | Ø21×Ø35mm | Pacage | Foam+cartom Box |
| Highlight | 51104 thrust bearing,Zirconia Ceramic Bearing 51104,abec 11 ceramic bearings |
||
Product Description
Ceramic Thrust Bearing 51104 Of Zirconia Races/Balls+Peek Cage With P6/ABEC3 Precision
Description of Ceramic Thrust Bearing 51104 (Zirconia+PEEK):
1. ZrO2 races and balls: Are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material and are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.

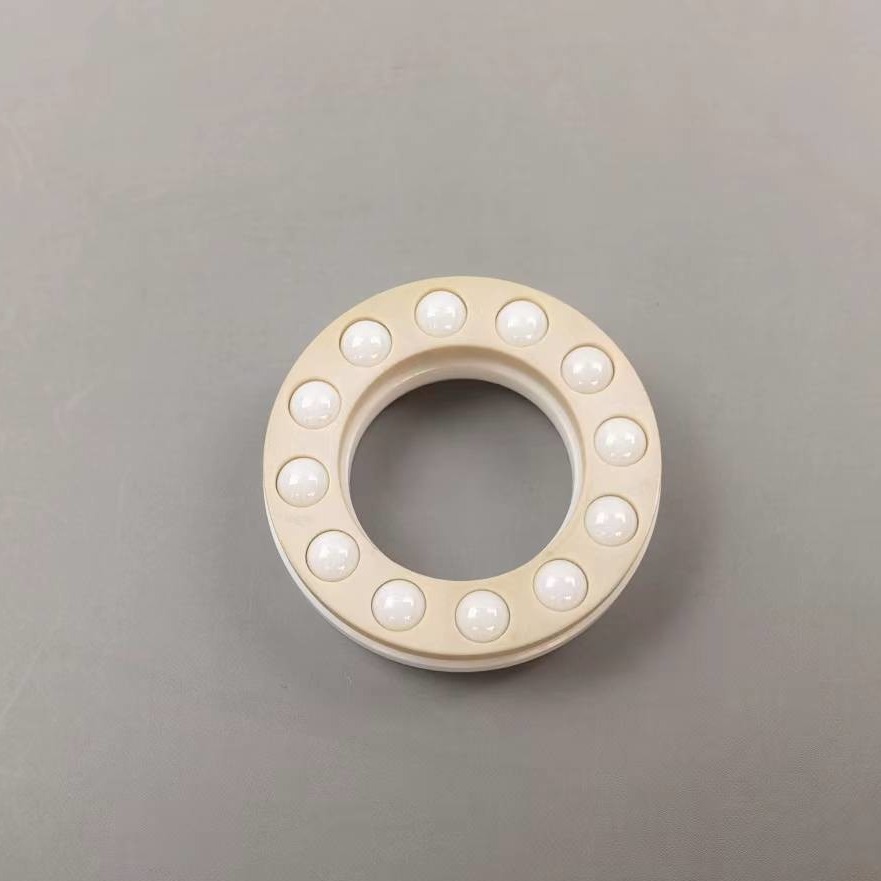

2. PEEK cage: The crown structure cages are adopted British Victrex PEEK material, PEEK has high strength, light body, and similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics.
Performance advantages of Ceramic Thrust Bearing 51104 (Zirconia+PEEK):
Zirconia bearings have a density and linear expansion coefficient close to that of metal steel shafts, high hardness(1300HV5), wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance(max. 380℃), high operating speed, impact resistance, small starting torque, resistance to dry friction, is one of the most widely used ceramic bearings.
| Ceramic | Bearings | Dimension | Reference | |
| Bearings Model | Load Rating (Ref.) | Load Rating (Ref.) | Max Speed (Ref.) | Max Speed (Ref.) |
| Cr(N) | Cor(N) | Grease (rpm) | Oil (rpm) | |
| 51104CE | 11440 | 20995 | 5300 | 8000 |
Application of Ceramic Thrust Bearing 51104 (Zirconia+PEEK):
Because of the properties of zirconia and PEEK material, zirconia bearings are suitable for certain vibration and mild impact environment, such as chemical, antimagnetic, semiconductor, medium/low speed and corrosive working environment.
