ABEC 3 Ceramic Thrust Bearing 51106 Zirconia Races Balls Peek Caged

  • ABEC 3 Ceramic Thrust Bearing 51106 Zirconia Races Balls Peek Caged
  • ABEC 3 Ceramic Thrust Bearing 51106 Zirconia Races Balls Peek Caged
  • ABEC 3 Ceramic Thrust Bearing 51106 Zirconia Races Balls Peek Caged
Place of Origin China
Brand Name CSQ
Model Number 51106
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Plastik bag+foam+carton box
Delivery Time 30-40 work days
Payment Terms T/T
Supply Ability 50 pcs in 30-40 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Thrust Bearing 51106 Material Zirconia Races/Balls+Peek Cage
Precision P6/ABEC3 Form Size Ø30×Ø47×11mm
Fixing Size Ø32×Ø47mm Pacage Foam+cartom Box
Highlight

ABEC 3 Ceramic Thrust Bearing

,

Ceramic Thrust Bearing 51106

,

abec ball bearing
Leave a Message
Product Description



Ceramic Thrust Bearing 51106 Of Zirconia Races/Balls+Peek Cage With P6/ABEC3 Precision



Description of Ceramic Thrust Bearing 51106 (Zirconia+PEEK):



1. ZrO2 races and balls: Are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material and are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.



2. PEEK cage: The crown structure cages are adopted British Victrex PEEK material, PEEK has high strength, light body, and similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics.



Performance advantages of Ceramic Thrust Bearing 51106 (Zirconia+PEEK):



►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5



























Ceramic Bearings Dimension Reference
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
  Cr(N) Cor(N) Grease (rpm) Oil (rpm)
51106CE 16320 35700 4300 6500



Application of Ceramic Thrust Bearing 51106 (Zirconia+PEEK):



Because of the properties of zirconia and PEEK material, zirconia bearings are suitable for certain vibration and mild impact environment, such as chemical, antimagnetic, semiconductor, medium/low speed and corrosive working environment.

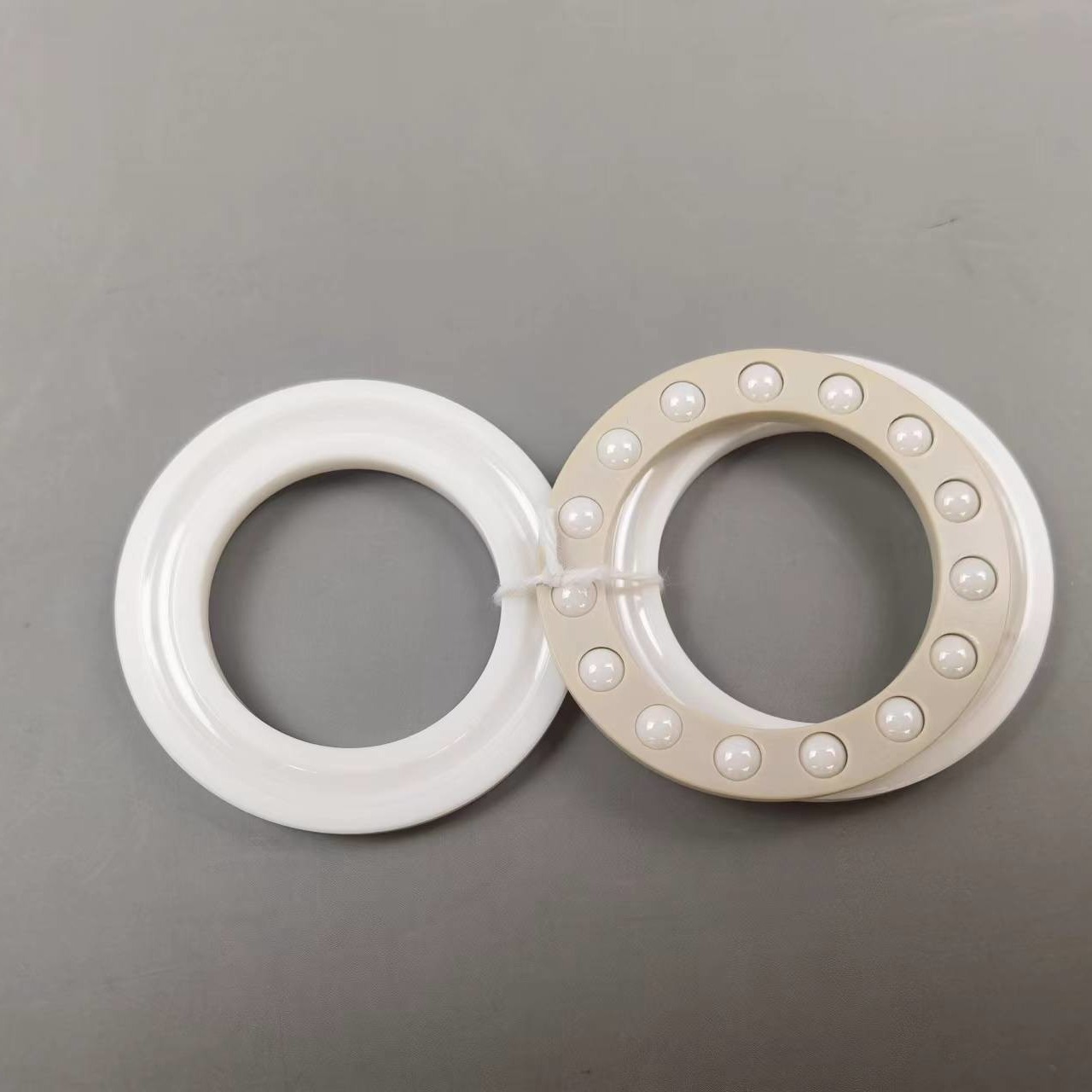

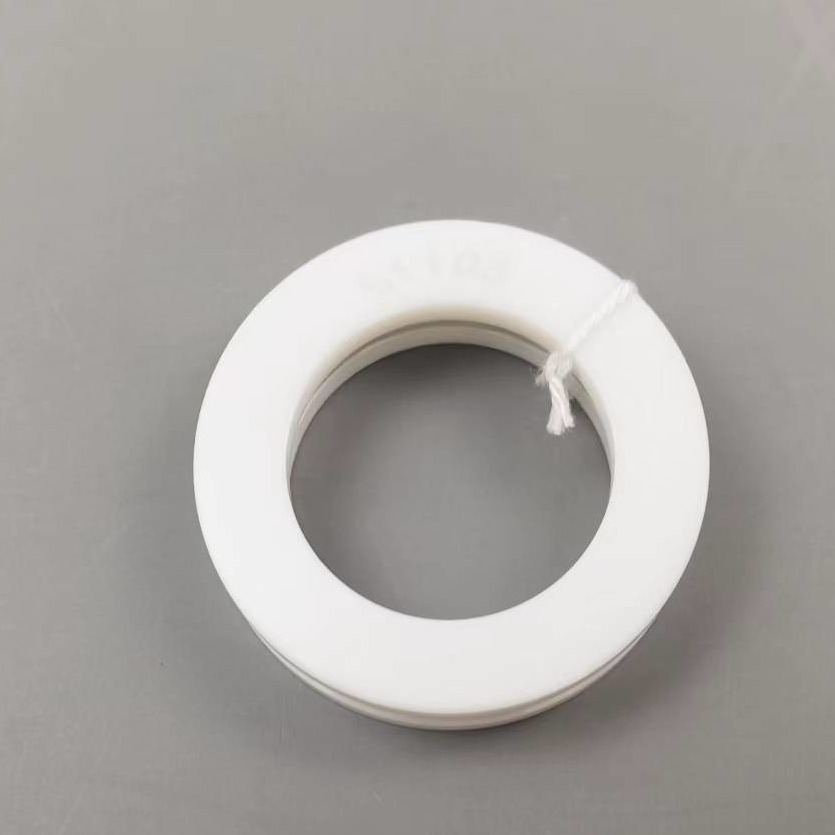

ABEC 3 Ceramic Thrust Bearing 51106 Zirconia Races Balls Peek Caged 0

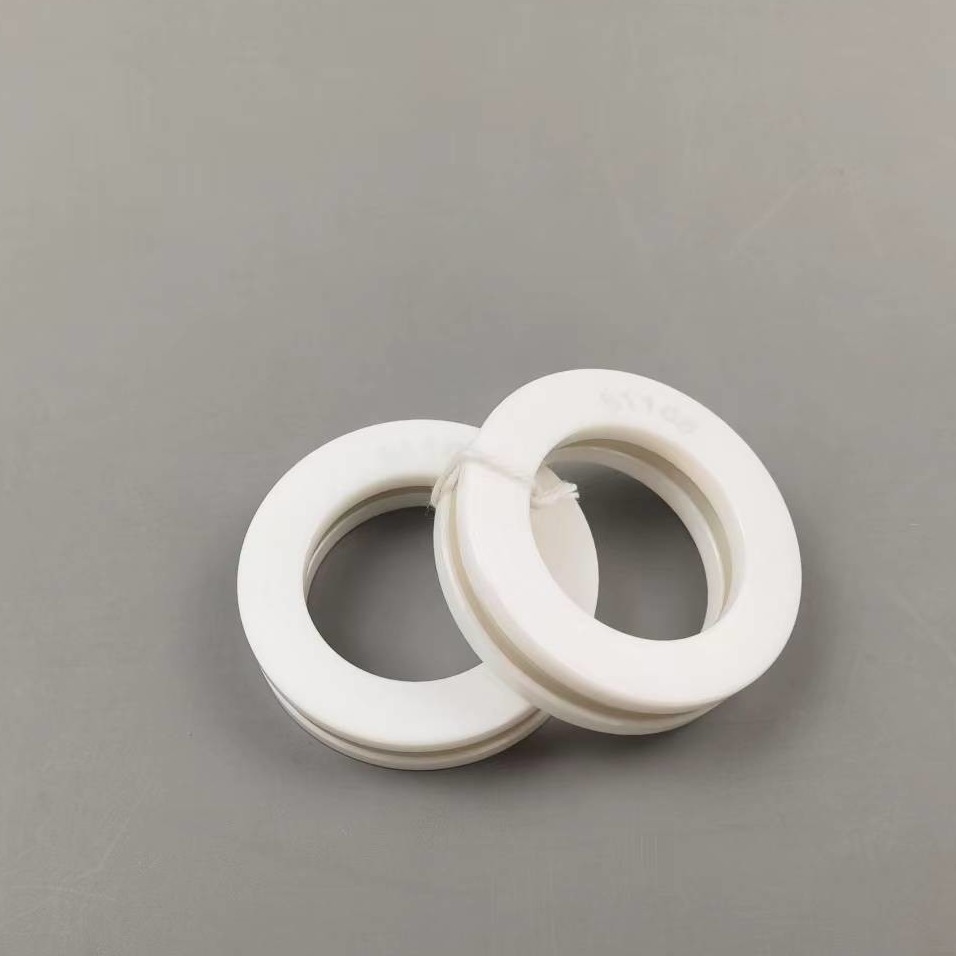

ABEC 3 Ceramic Thrust Bearing 51106 Zirconia Races Balls Peek Caged 1
