High Speed SSiC Zr02 Ceramic Bearings Thrust 51103

  • High Speed SSiC Zr02 Ceramic Bearings Thrust 51103
  • High Speed SSiC Zr02 Ceramic Bearings Thrust 51103
  • High Speed SSiC Zr02 Ceramic Bearings Thrust 51103
Place of Origin China
Brand Name CSQ
Model Number 51103
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time 30 work days
Payment Terms T/T
Supply Ability 50 pcs in 30 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Thrust Bearing 51103 Category Ceramic Single Direction Thrust Ball Bearing
Material SSiC Races And Balls+ Cage Size 17×30×9mm
Application Machinery Pacage Foam+cartom Box
Highlight

high speed ceramic bearings

,

zr02 ceramic bearings 51103

,

51103 thrust bearing
Leave a Message
Product Description



Ceramic Thrust Bearings 51103 Of SSiC Races And Balls+PTFE Cage



Description of Ceramic Thrust Bearing 51103 (SSiC races and balls+ cage):



1. SSiC races and balls: Are made of highly purified, sub-micron silicon carbide material and are sintered by pressureless sintering method, so the free silicon and free carbon in the products are close to the theoretical values.



2. cage: has excellent chemical stability, good corrosion resistance and high temp resistance (resistant to molten metal sodium and liquid fluorine, all kinds of acid and alkali and organic solvent, and can work in +250℃ to -180℃ temperature for a long time)



Performance advantages of Ceramic Thrust Bearing 51103 (SSiC races and balls+ cage):



With a density and coefficient of linear expansion close to that of silicon nitride ceramic materials, high hardness and good wear resistance, resistance to various strong acids, strong alkalis, salt corrosion, high temperature resistance.



►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)

























Ceramic Bearings Dimension Reference
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
  Cr(N) Cor(N) Grease (rpm) Oil (rpm)
51103CE 8640 15470 6000 9100



Application of Ceramic Thrust Bearing 51103 (SSiC races and balls+ cage):



Because of the outstanding properties of silicon carbide material, SSiC Ceramic Bearings are suitable for the petroleum, chemical, semiconductor, food machinery, pharmaceutical industry, etc.,.

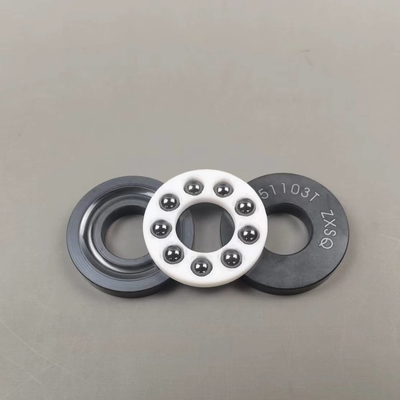

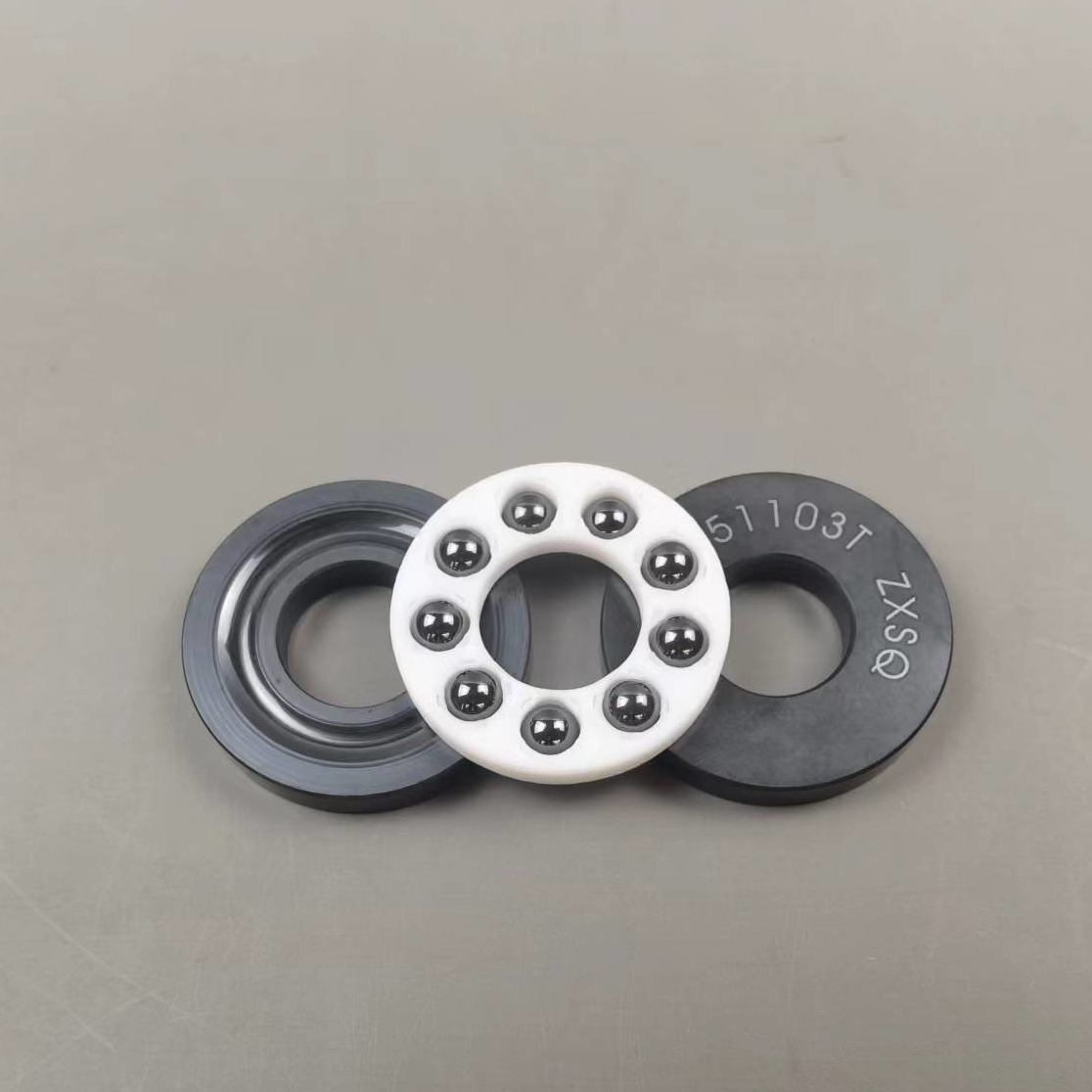

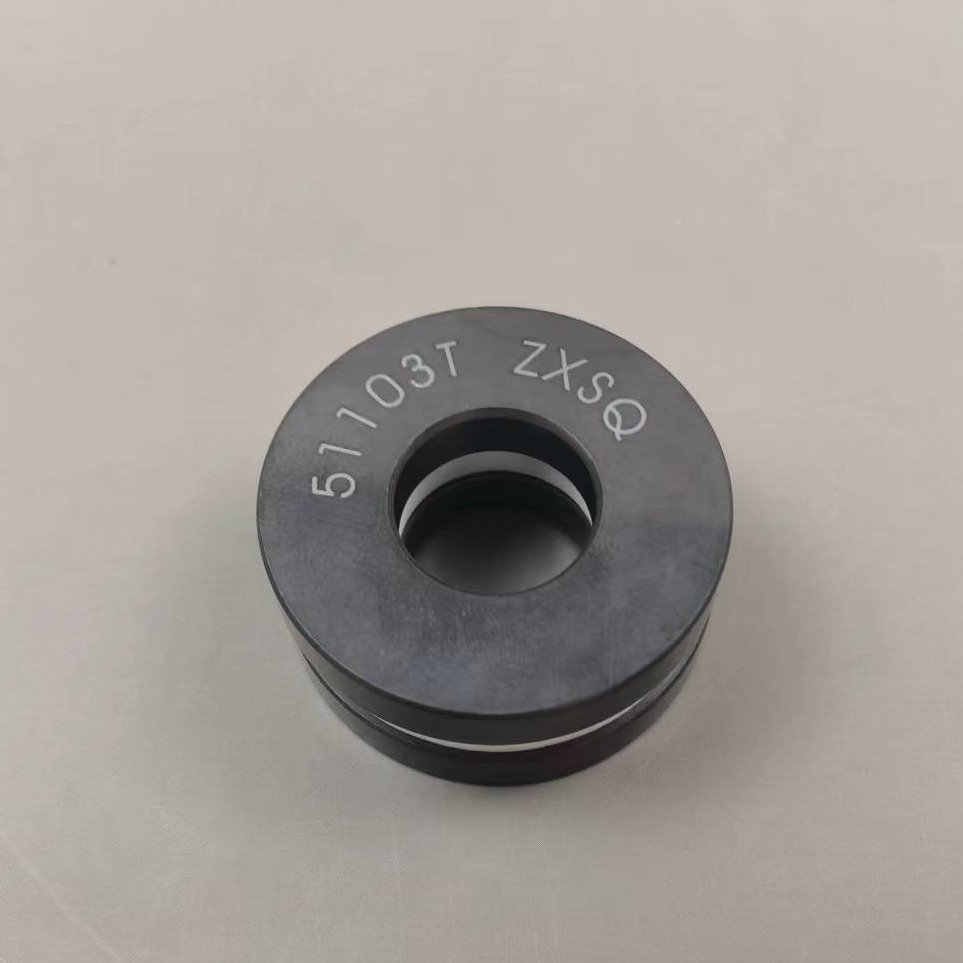

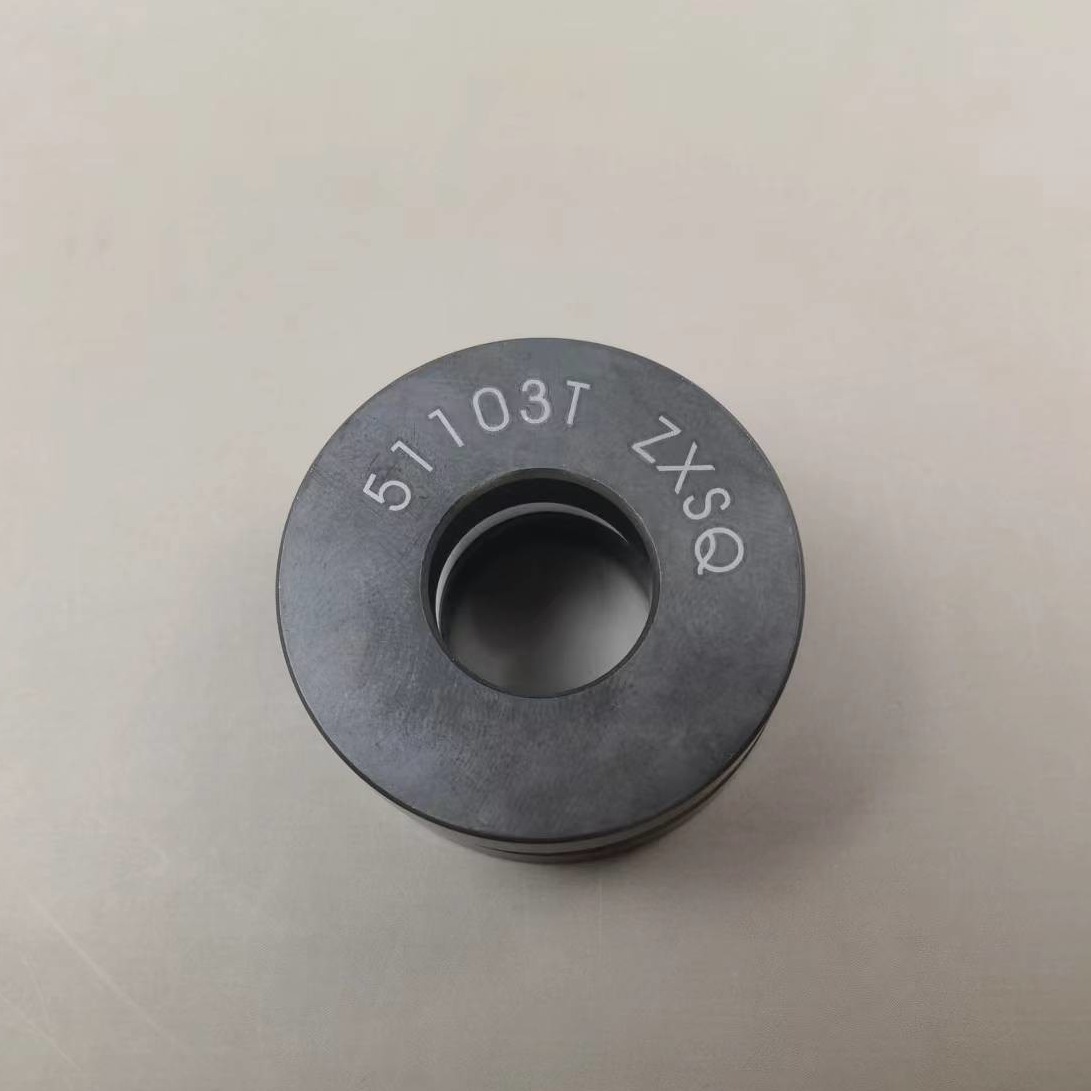

High Speed SSiC Zr02 Ceramic Bearings Thrust 51103 0High Speed SSiC Zr02 Ceramic Bearings Thrust 51103 1
