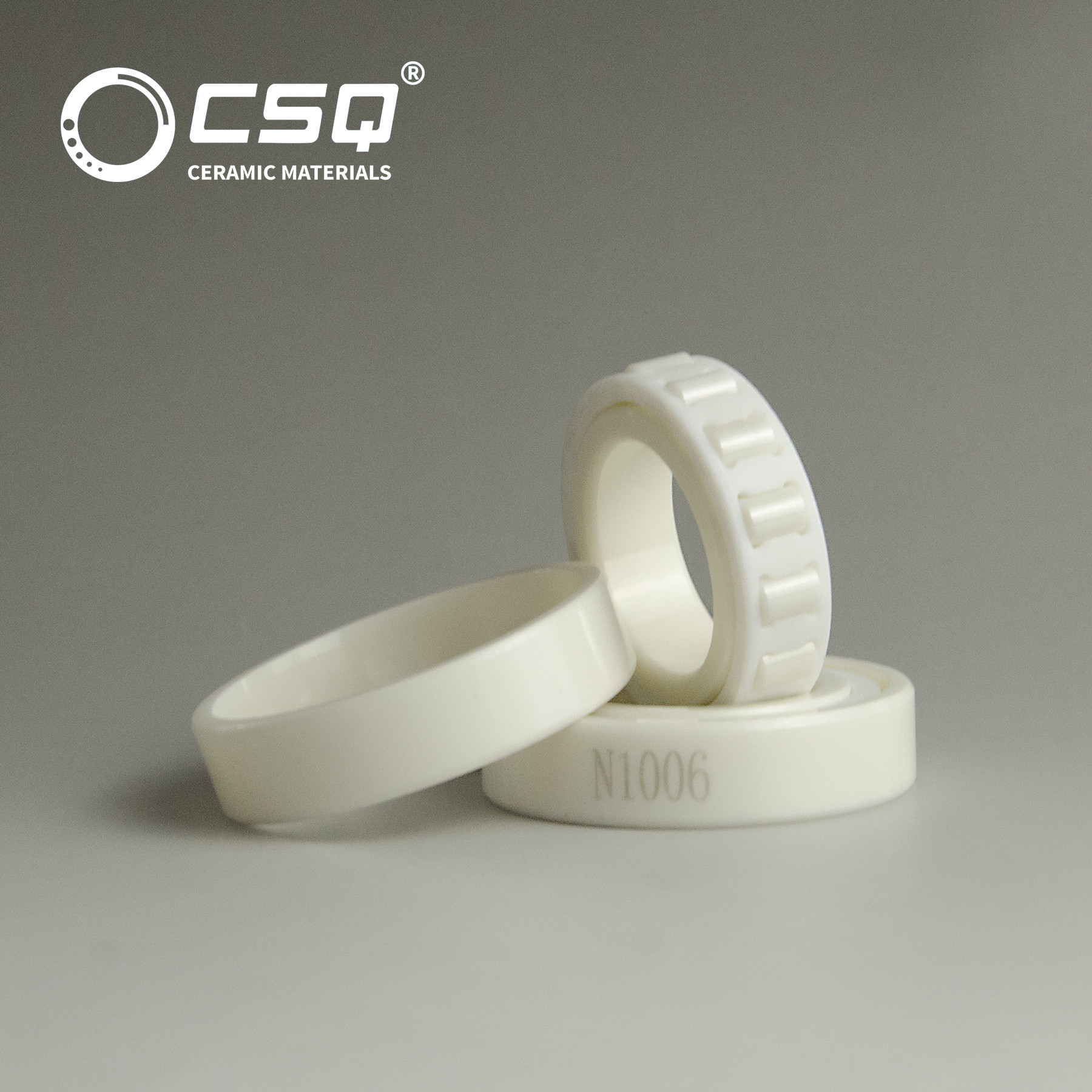

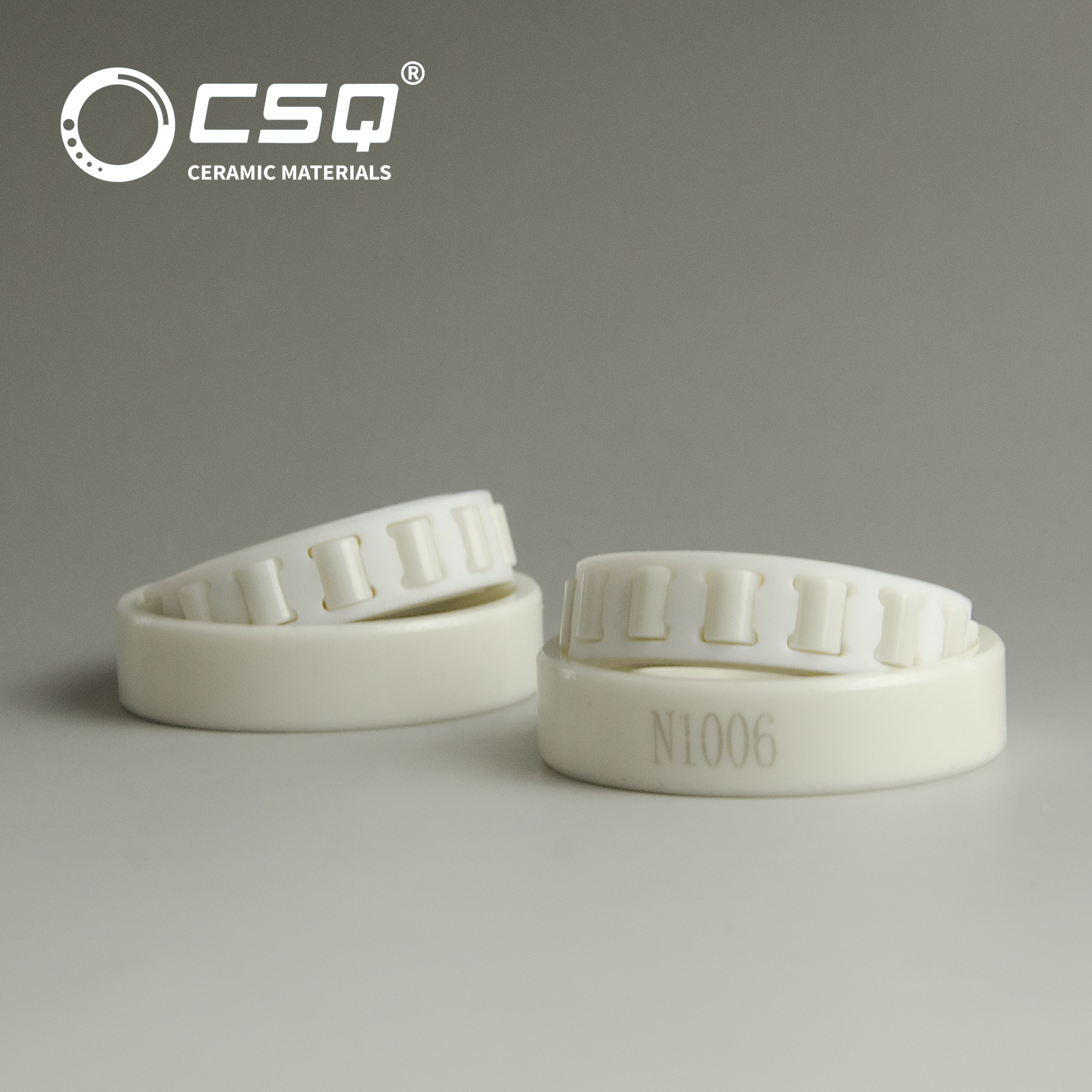

N1006 n1008 n1009 Ceramic Roller Bearings ZrO2 Races Cage
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | N1006 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik bag+foam+carton box |
| Delivery Time | 45-60 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 45-60 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | N1006 Ceramic Roller Bearings | Material | ZrO2 Races And Rollers + PTFE Cage |
|---|---|---|---|
| Size | Ø30×Ø55×13mm | Precision | P6/ABEC3 To P4/ABEC7 |
| Use | Chemical Industry | Pacage | Plastik Bag+foam+carton Box |
| Highlight | n1006 bearing,n1008 bearing,n1009 bearing |
||
Product Description
N1006 Ceramic Roller Bearings Of ZrO2 Races And Rollers+ Cage
Description of N1006 Ceramic Roller Bearings
1. ZrO2 races and rollers: Races are made by highly purified, sub-micron and after Y2O3 partially stabled zirconia powder material and are precessed by GPS or HIP sintering technology. Because of our technology the properties of our zirconia bearins are highly improved, it's one of the widely used material for ceramic bearings.
2. cage: can resistant to molten metal sodium and liquid fluorine, to all kinds of acid and alkali resistance and organic solvent, and have excellent temperature resistance (can work in +250℃ to -180℃ temperature for a long time). So it is a ideal material for cage of ceramic bearings. Our company has professional technology of processing cages in many types.
Performance advantages of N1006 Ceramic Roller Bearings
Zirconia bearings have high hardness, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance, high operating speed, impact resistance, small starting torque, resistance to dry friction.
Application ofN1006 Ceramic Roller Bearings
Because of the outstanding porperties of zirconia and , the zieconia bearings are suitable for certain vibration and mild impact environment, such as chemical, antimagnetic, semiconductor, medium/low speed and corrosive working environment.
| ►Key properties of zirconia |
| ♦ Max Temperature up to 380℃ |
| ♦ High density: 6.09 g/cm3 |
| ♦ Low thermal conductivity |
| ♦ Chemical stability, resistance to acid and alkali corrosion |
| ♦ High fracture toughness KIC:8-11 MPa-m1/2 |
| ♦ Good electric insulation |
| ♦ Better bearing capacity |
| ♦ Wear resistance |
| ♦ High hardness : 1300 HV5 |
