SSiC Ceramic Sliding Bearing Mechanical Seals For Rotating Machinery
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Minimum Order Quantity | 20 pcs |
| Price | Negotiable |
| Packaging Details | Foam+cartom box |
| Delivery Time | 35-45 work days |
| Payment Terms | T/T |
| Supply Ability | 20 pcs in 35-45 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Customized SSiC Mechanical Seals | Category | Ceramic Pump Component |
|---|---|---|---|
| Material | Pressureless Sintered Silicon Carbide | Size | Customized,according To The Drawings |
| Use | Rotating Machinery | Pacage | Foam+cartom Box |
| Highlight | SSiC Ceramic Sliding Bearing CSQ,CSQ Ceramic Sliding Bearing For Rotating Machinery,CSQ ceramic bearings |
||
Product Description

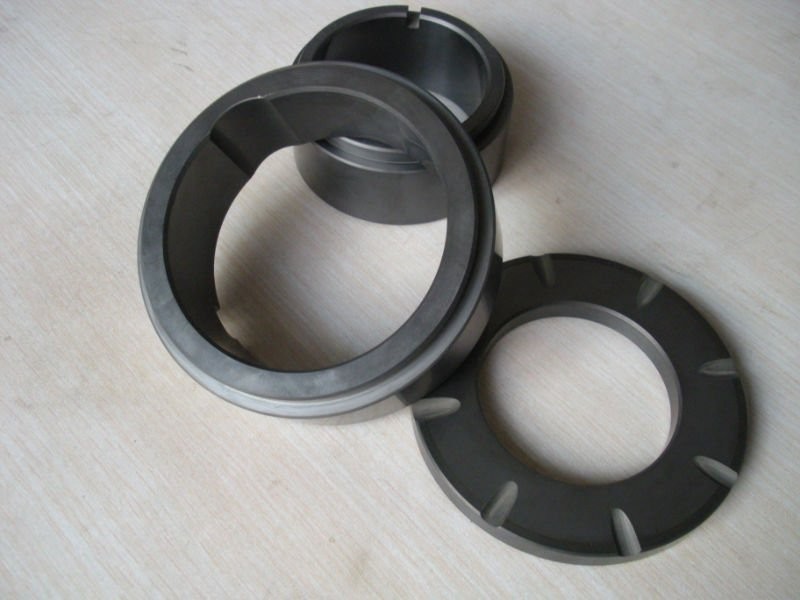

Customized SSiC Mechanical Seals For Rotating Machinery
Description of Customized SSiC Mechanical Seals:
Mechanical seal is a kind of shaft sealing device rotating the michanery, it is formed by at least a pair of end face perpendicular to the rotation axis, and under the force of fluid pressure and compensation institution elastic force (stone force) and with the cooperation of the auxiliary seal, the faces keep seat and the relativ sliding, to prevent the fluid leakage.
Generally it consists of two segments, namely rotating ring and static ring. These rings can still realize rotary motion for each other with smaller resistance, under the much more pressure.
Main application of Customized SSiC Mechanical Seals:
The rotating ring and static ring is generally formed by the group of pure SSiC rings, or one SSiC and the othe is SSiC+C material.
Rotating and static ring: a pair of pure SSiC rings, applicable for strong corrosive medium.
Rotating and static ring: a SSiC ring, and a SiC+C, applicable for the medium easy to vaporized.
| ►Key properties of pressureless sintered silicon carbide |
| ♦ Max Temperature up to 1650℃ |
| ♦ Low density:3.15-3.18 g/cm3 |
| ♦ High strength |
| ♦ Low thermal expansion : 4.0 (10-6/℃) |
| ♦ High thermal conductivity:120 W/m°K |
| ♦ High hardness:2800 HV5 |
| ♦ High elastic modulus: 410GPa |
| ♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid) |
