SSiC Ceramic Sliding Bearing Submerged Pump CSQ
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Minimum Order Quantity | 20 pcs |
| Price | Negotiable |
| Packaging Details | Foam+cartom box |
| Delivery Time | 35-45 work days |
| Payment Terms | T/T |
| Supply Ability | 20 pcs in 35-45 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Customized Ceramic Sliding Bearing | Category | Ceramic Pump Bearing |
|---|---|---|---|
| Material | Pressureless Sintered Silicon Carbide | Size | Customized, According To The Drawings |
| Use | Submerged Pump | Pacage | Foam+cartom Box |
| Highlight | SSiC Ceramic Sliding Bearing CSQ,Ceramic Sliding Bearings CSQ,SSiC Sliding Bearing CSQ |
||
Product Description

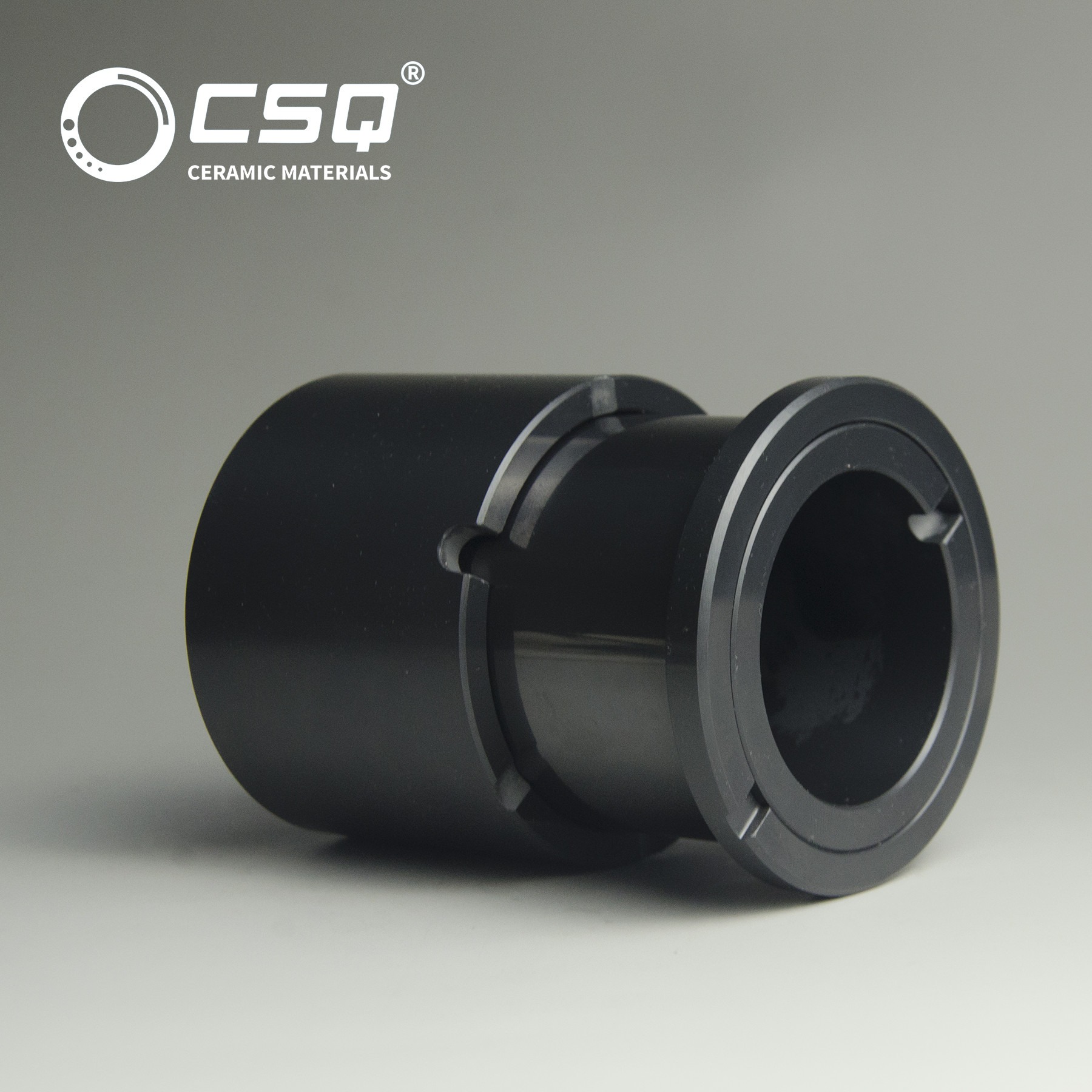

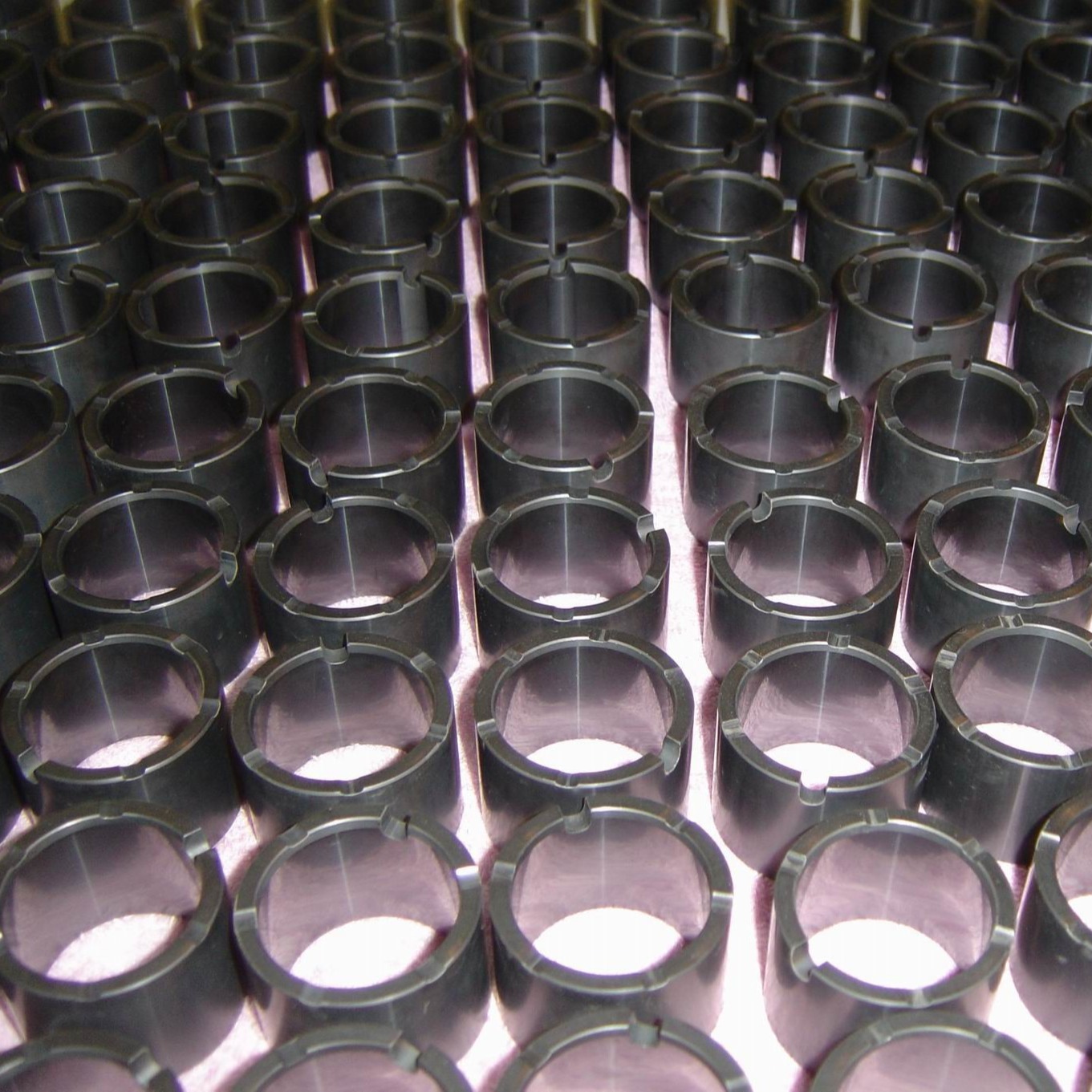

Customized SSiC Sliding Bearing For Submerged Pump
Description of Customized ceramic sliding bearing:
Sliding bearing is a crucial transmission part, as the support and rotary unit of canned motor pump. With the excellent corrosion resistance, wear resistance and other properties, silicon caibide (SSiC) is one of the best sliding bearing material for the pumps.
Main applications of Submerged Pump:
1. The submerged pump mainly transmit all kinds of acid, alkali, salt and other corrosive medium, thus the corrosive resistance of bearing is very important.
2. The submerged pump mainlu transport the medium with particles of sewage and mud, thus the wear resistance of bearing is also very important.
Why choose us:
The SSiC sliding bearing is taken as standard part in submerged pump and used by many submerged pumps in domestic or foreign enterprises. Our company has our design and recipe advantage of the sliding bearing in material of pressureless sintered silicon carbide and are stably suppling the parts for many famous pump enterprise in Europe and Japen for many years.
| ►Key properties of pressureless sintered silicon carbide |
| ♦ Max Temperature up to 1650℃ |
| ♦ Low density:3.15-3.18 g/cm3 |
| ♦ High strength |
| ♦ Low thermal expansion : 4.0 (10-6/℃) |
| ♦ High thermal conductivity:120 W/m°K |
| ♦ High hardness:2800 HV5 |
| ♦ High elastic modulus: 410GPa |
| ♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid) |
