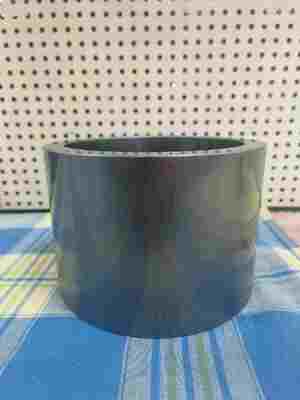

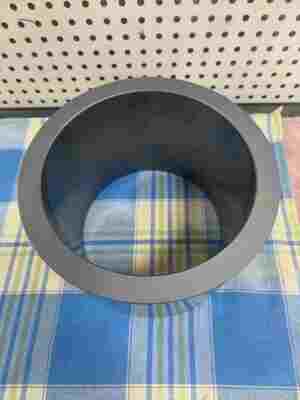

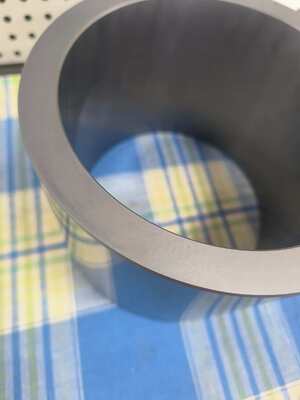

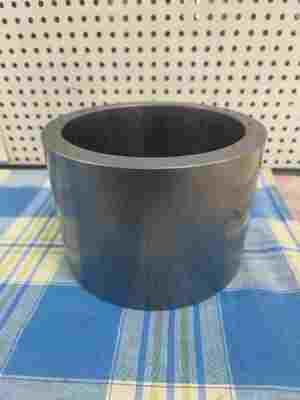

Customized Pressureless Sintered SSIC Sliding Bearing Sleeve for Pumps with 1650℃ Max Temperature
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Certification | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Model Number | customized products |
| Minimum Order Quantity | 20-50 pcs |
| Price | Negotiable |
| Packaging Details | Foam+carton box |
| Delivery Time | 20-45 work days |
| Payment Terms | T/T |
| Supply Ability | 2000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Customized Ceramic Sliding Sleeve Bearing | Category | Ceramic Sliding Bearing |
|---|---|---|---|
| Material | Pressureless Sintered Silicon Carbide/Zirconia | Size | Customized,according To The Drawings |
| Application | Pumps | Package | Foam+carton Box |
| Quality | High Precision, Long Life, OEM Serive | Specification | Standard Size And Customized |
| Highlight | Customized SSIC sliding bearing sleeve,Pressureless sintered ceramic bearing for pumps,High-temperature SSIC bearing sleeve 1650℃ |
||
Product Description
Customized SSiC Pressureless Sintered Sliding Bearing Sleeve For Pump
High-Performance Silicon Carbide Sliding Bearing Sleeve
Our customized silicon carbide sliding bearing sleeves are precision-engineered from high-performance materials including silicon nitride (Si3N4), silicon carbide (SiC), and zirconia (ZrO2). These advanced ceramic bearings deliver superior durability and reliability compared to traditional steel bearings, specifically designed for demanding industrial, automotive, and aerospace applications in corrosive, high-temperature, and high-wear environments.
Key Advantages
✔ Extreme Corrosion Resistance - Withstands harsh chemicals, acids, and marine environments, ideal for chemical processing, pumps, and offshore equipment.
✔ Ultra-Low Friction & Wear - Smoother, harder ceramic surfaces minimize friction, reducing energy loss and extending bearing lifespan by 5-10X over metal alternatives.
✔ High-Temperature Stability - Operates reliably up to 1,400°C, perfect for turbines, engines, and industrial furnaces.
✔ Lightweight & Non-Magnetic - Reduces rotational inertia and eliminates magnetic interference, critical for aerospace and medical devices.
Applications
Ceramic bearings are widely used in aviation, aerospace, navigation, petroleum, chemical, automotive, electronic equipment, metallurgy, electric power, textile, pump, medical instruments, scientific research, and defense applications, representing high-tech products utilizing advanced materials.
Material Properties
Pressureless Sintered Silicon Carbide Characteristics
| Maximum Temperature | Up to 1650℃ |
| Density | 3.15-3.18 g/cm³ |
| Thermal Expansion | 4.0 (10⁻⁶/℃) |
| Thermal Conductivity | 120 W/m°K |
| Hardness | 2800 HV5 |
| Elastic Modulus | 410 GPa |
| Chemical Stability | Superior resistance to acid and alkali corrosion (including hydrofluoric acid) |
Ceramic vs Steel Bearing Advantages
1. Higher Temperature Capability - Ceramic materials maintain mechanical properties at elevated temperatures, suitable for high-temperature applications.
2. Superior Temperature Change Performance - Lower thermal expansion coefficient reduces clearance variations across temperature fluctuations.
3. Enhanced Anti-Bite and Anti-Stuck Performance - Reduced thermal deformation improves resistance to binding.
4. Oil-Free Operation - Self-lubricating characteristics enable use in high vacuum and difficult-to-lubricate environments.
5. Corrosion Resistance - Withstands acid, alkali, and salt corrosion for chemical processing applications.
6. Electrical Insulation - Non-conductive properties eliminate static electricity and prevent current ablation.
7. Non-Magnetic Performance - Magnetic particles don't adhere to bearing channels, reducing abrasive wear.
Manufacturing Capabilities
We operate three factories in China equipped with advanced pressing, sintering, and processing machinery to meet diverse customer requirements. Our company brands ZXSQ and CSQ are supported by eleven utility model invention patents. With a professional team of dozens of experts, we provide high-quality customized bearing solutions tailored to specific application needs.
Since 1982, we have accumulated over 40 years of ceramic bearing production experience, continuously advancing material research, processing techniques, and equipment improvements. Through multiple evolutions, we have become a leading enterprise in China's ceramic bearing and ceramic materials market.
We specialize in both external and internal gear pump sliding bearings in silicon carbide material, with extensive experience supplying SSiC sliding bearings to companies like Germany's Witte for many years.
Our Bearing Advantages
• Free sample bearings available
• Manufactured to ISO standards
• In-stock bearing inventory
• Small order quantities accepted
• OEM bearing services
• Customized bearings from customer drawings or samples
• Competitive factory pricing
Frequently Asked Questions
Q: Who are we?
A: We are a factory based in Beijing, China, with over 40 years of experience in ceramic bearing production. We have established cooperative relationships with numerous domestic and international companies.
Q: How do we guarantee quality?
A: We produce samples before mass production and strictly follow customer specifications and production regulations. All products undergo precise inspection using advanced equipment, and our double-layer foam and carton packaging ensures product protection during shipping.
Q: What products can you purchase from us?
A: Ceramic deep groove ball bearings, ceramic angular contact ball bearings, hybrid ceramic ball bearings, ceramic linear bearings, and various ceramic balls.
Q: Why choose us over other suppliers?
A: As an integrated manufacturing and trading company with three factories, we utilize modern production and inspection equipment to ensure superior delivery times and product quality.
Q: What services do we provide?
A: We offer high-quality products and comprehensive customization services tailored to user requirements. Samples are available for customer confirmation.
Welcome Your Enquiry
We maintain strategic partnerships with raw material suppliers to ensure consistent product quality and stable pricing, unaffected by international raw material fluctuations. With our proprietary material production technology, we can self-produce raw materials when necessary.
We are committed to customer-driven solutions, providing quality products and comprehensive after-sales service to create value for our clients as trusted partners. We welcome discussions about potential cooperation opportunities!
