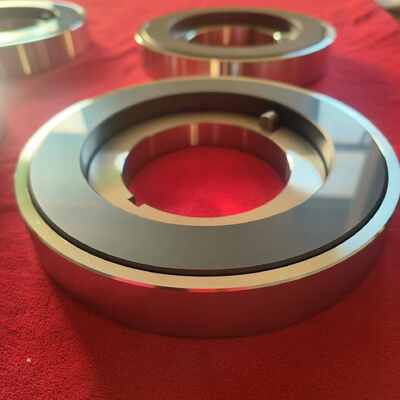

Silicon Carbide Thrust Disc with Stainless Steel Substrate and 410 GPa Elastic Modulus for High Thermal Conductivity
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Certification | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Model Number | customized products |
| Minimum Order Quantity | 20-50 pcs |
| Price | Negotiable |
| Packaging Details | Foam+carton box |
| Delivery Time | 20-45 work days |
| Payment Terms | T/T |
| Supply Ability | 2000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Ceramic Sliding Bearing | Category | Ceramic Pump Bearing |
|---|---|---|---|
| Material | Pressureless Sintered Silicon Carbide/Zirconia | Size | Customized,according To The Drawings |
| Use | Canned Motor Pump | Package | Foam+carton Box |
| Keyword | Canned Motor Pump Bearing | Type | Crucial Transmission Part |
| Highlight | 410 GPa Elastic Modulus Silicon Carbide Thrust Disc,Stainless Steel Substrate Ceramic Sliding Bearing,High Thermal Conductivity Stainless Steel Thrust Disc |
||
Product Description
Silicon Carbide - Stainless Steel Thrust Disc
The Silicon Carbide-Stainless Steel Thrust Disc is a high-performance component designed for face sealing and axial positioning applications. Its advanced composite structure combines a wear-resistant Silicon Carbide face with a high-strength Stainless Steel substrate, delivering exceptional wear resistance and structural integrity in demanding operating conditions.
Material and Properties
Face Material: Pressureless Sintered Silicon Carbide
- Extreme Hardness & Wear Resistance: Second only to diamond and CBN in hardness, providing excellent resistance to abrasive media and erosion.
- Excellent Chemical Inertness: Resists corrosion from strong acids, alkalis, and oxidizers, outperforming most metallic materials.
- High Thermal Conductivity: Rapidly dissipates frictional heat, preventing localized overheating and ensuring operational stability.
- Low Friction Coefficient: Performs exceptionally well against counterparts like carbon and ceramics, reducing starting and running torque.
Substrate/Backing: Stainless Steel
- Outstanding Mechanical Strength: Provides robust structural support, capable of withstanding high axial loads and installation stresses.
- Good Toughness: Prevents brittle fracture of the component during assembly and under pressure shock.
- General Corrosion Resistance: The stainless steel substrate (typically 304 or 316) offers fundamental rust and corrosion protection.
Composite Advantage: This combination leverages the strengths of both materials: Silicon Carbide handles the harsh frictional and chemical environment, while the Stainless Steel ensures structural integrity and ease of installation, achieving optimal performance.
Working Principle
The thrust disc serves two primary functions in equipment: Axial Load Bearing and Face Sealing.
- Axial Load Bearing: As a core component in thrust bearings, it carries and transmits axial loads while limiting shaft movement.
- Face Sealing: In mechanical seals, it forms a friction pair with another smooth face to prevent medium leakage and achieve dynamic sealing.
- Synergistic Operation: The SiC face maintains minimal wear and stable sealing performance, while the stainless steel substrate prevents deformation and ensures even pressure distribution.
Key Specifications
| Attribute | Value |
|---|---|
| Name | Ceramic Sliding Bearing |
| Category | Ceramic pump bearing |
| Material | Pressureless sintered silicon carbide/Zirconia |
| Size | Customized according to drawings |
| Use | Canned motor pump |
| Package | Foam + carton box |
| Property | Value |
|---|---|
| Maximum Temperature | Up to 1650℃ |
| Density | 3.15-3.18 g/cm³ |
| Thermal Expansion | 4.0 (10-6/℃) |
| Thermal Conductivity | 120 W/m°K |
| Hardness | 2800 HV5 |
| Elastic Modulus | 410 GPa |
| Chemical Stability | Superior resistance to acid and alkali corrosion (including hydrofluoric acid) |
Application Scenarios
This composite thrust disc is widely used in rotating equipment demanding high reliability and long service life:
- Mechanical Seals in chemical pumps, process pumps, and slurry pumps
- Thrust Bearing Assemblies in multi-stage centrifugal pumps, water turbines, and compressors
- High-Temperature & High-Pressure Valves as valve discs or seats
- Oil & Gas Industry applications including downhole tools and mud pump components
- Automotive Industry for high-performance brake friction rings and turbocharger components

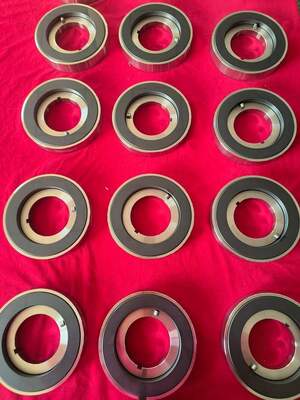

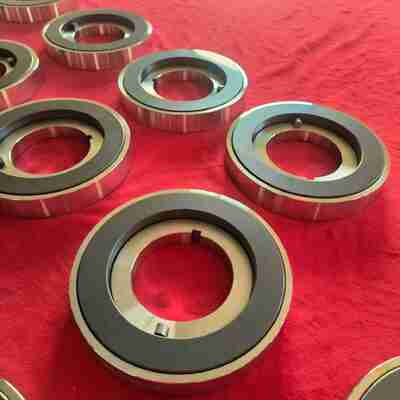

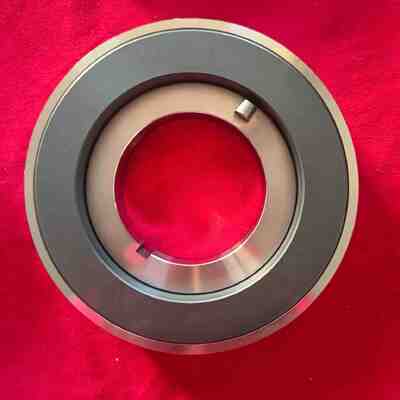

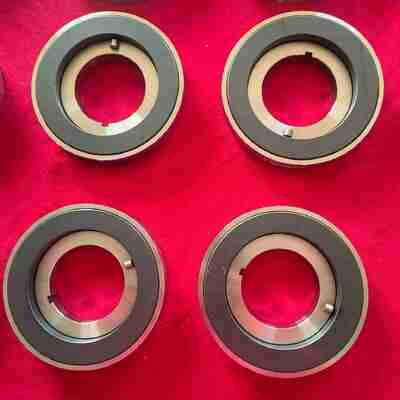

Product Images
Silicon carbide sliding bearing
Precision ceramic components
Manufacturing Capabilities
We operate three specialized factories in China, equipped with advanced pressing, sintering, and processing machinery to meet diverse customer requirements.
Production line for ceramic bearings
Precision machining process
Quality control inspection
