Customized SSIC Ceramic Sliding Bearing 1650°C High-Temp Resistance
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Certification | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Model Number | customized products |
| Minimum Order Quantity | 50 pcs (negotiable) |
| Price | Negotiable |
| Packaging Details | Foam+carton box |
| Delivery Time | 20-45 work days |
| Payment Terms | T/T |
| Supply Ability | 2000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Customized Ceramic Sliding Sleeve Bearing | Material | Pressureless Sintered Silicon Carbide/Zirconia |
|---|---|---|---|
| Category | Ceramic Sliding Bearing | Size | Customized,according To The Drawings |
| Quality | High Precision, Long Life, OEM Serive | Friction | Low |
| Corrosion Resistance | High | Durability | High |
| Use | A Variety Of Pumps | Package | Foam+carton Box |
You can tick the products you need and communicate with us in the message board.
Product Description

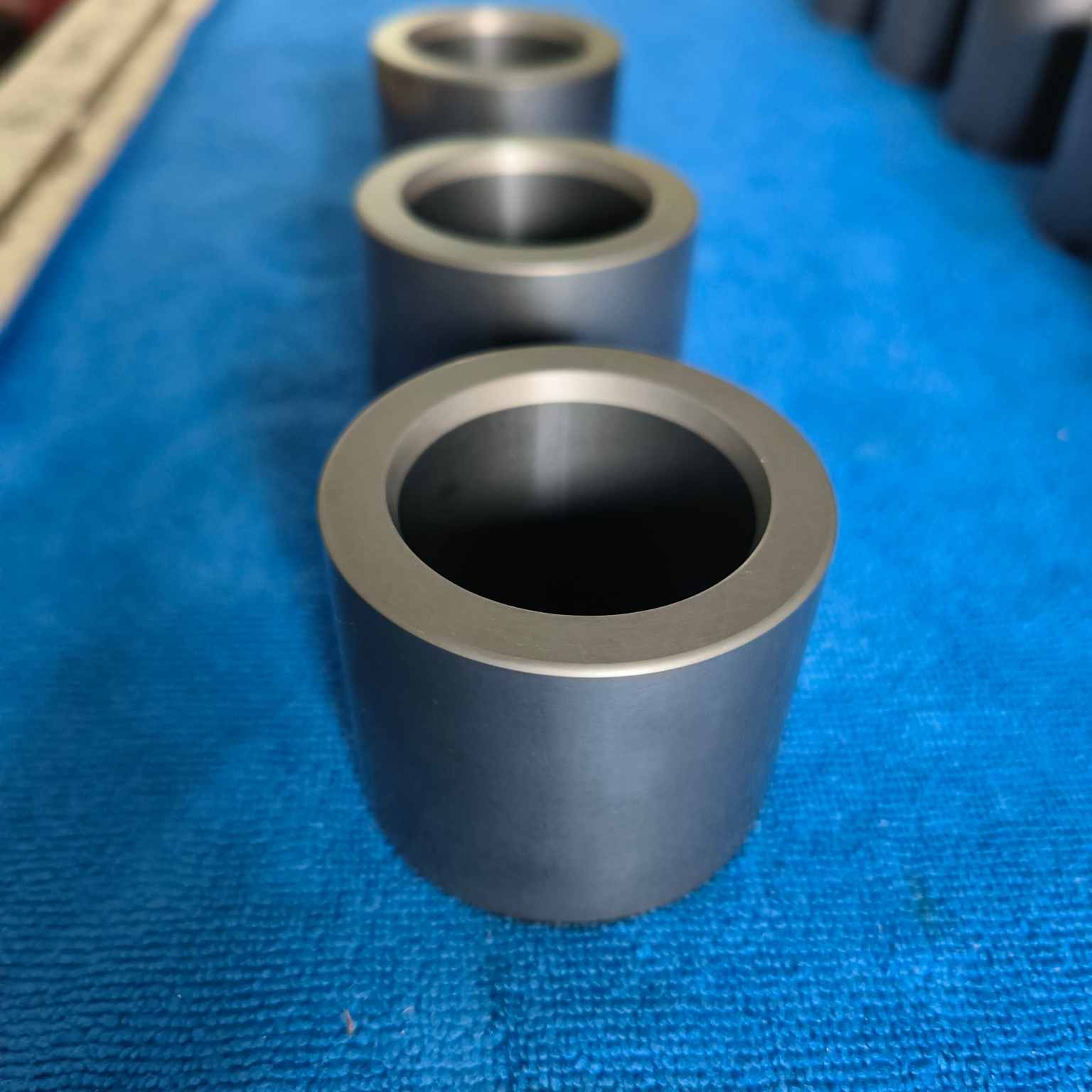

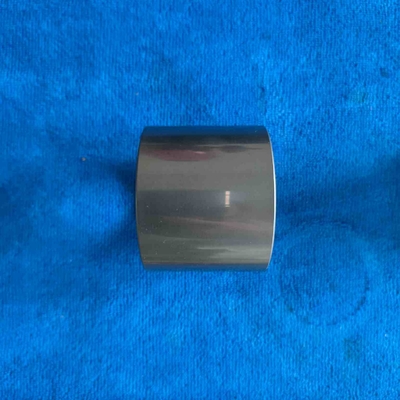

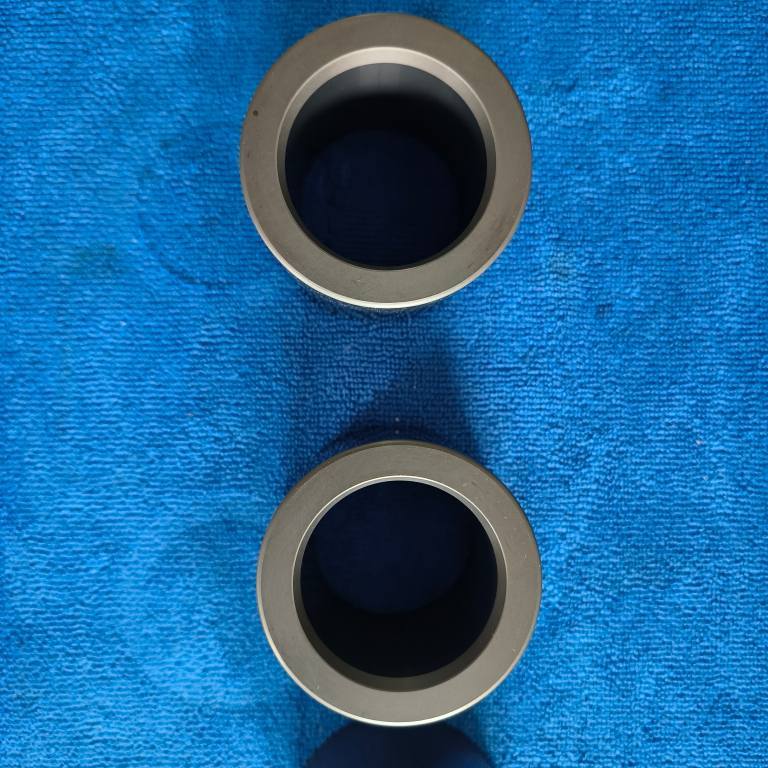

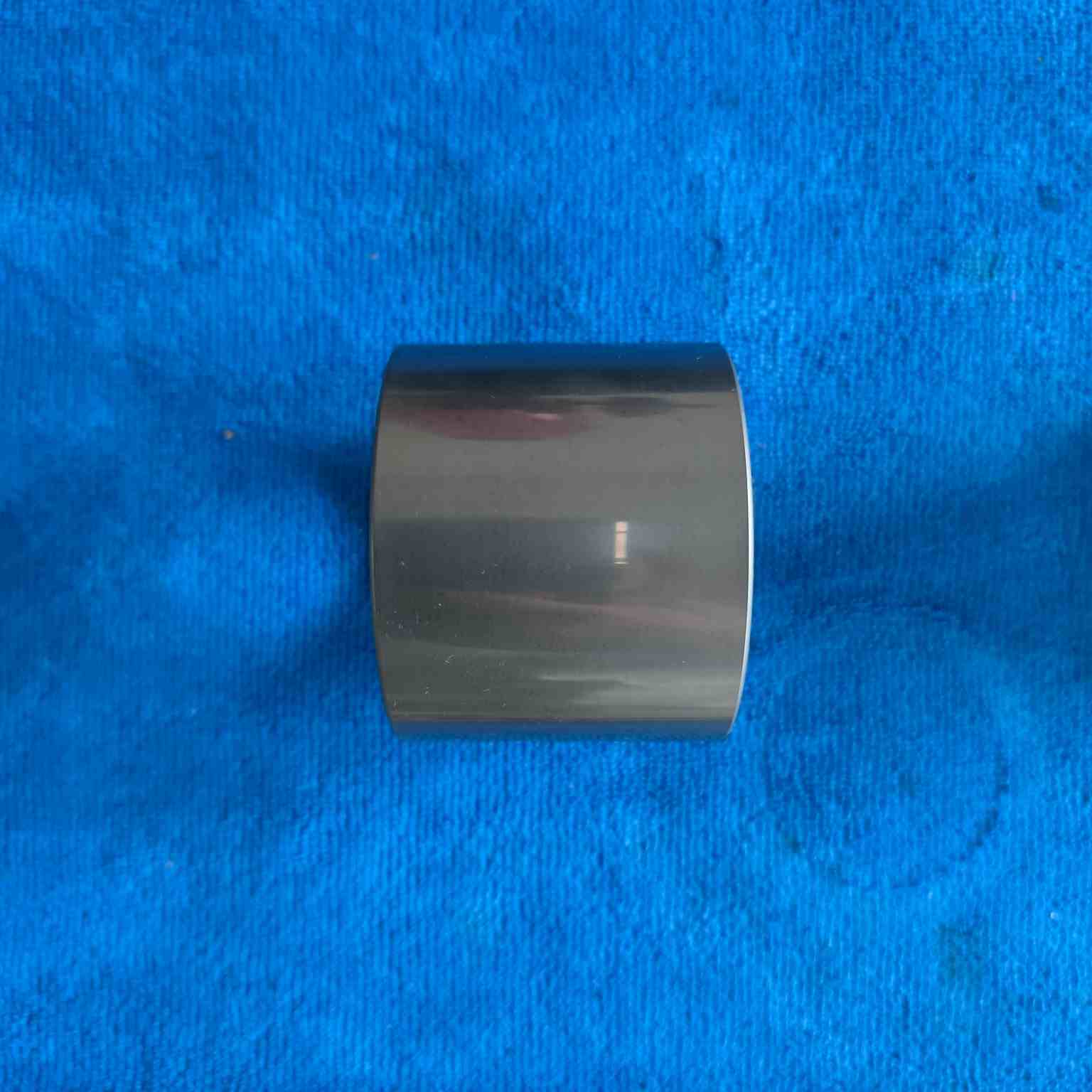

SSIC Ceramic Sliding Bearing for Pump Sleeve Thermal Expansion Difference Compensation
Product Overview
The silicon carbide (SiC) sleeve is precision-engineered from high-purity SiC material, offering exceptional wear resistance, corrosion resistance and high-temperature stability. Widely used in rotating equipment across chemical, mechanical and energy industries, it is particularly suitable for long-term operation under harsh conditions including high speed, strong corrosion and extreme temperatures.
Material Properties
Silicon carbide ceramics exhibit outstanding mechanical properties at room temperature, including high strength, hardness, and elastic modulus. They also demonstrate excellent thermal stability with high thermal conductivity, low thermal expansion coefficient, as well as remarkable specific stiffness and optical machining characteristics.
Key Features
- Superior Wear Resistance: Mohs hardness 9.5, 5-10x lifespan vs metal sleeves
- Excellent Corrosion Resistance: Withstands strong acids/alkalis
- High-Temperature Stability: Maintains performance up to 1650°C
- Low Friction: Precision polished surface
- Lightweight: 1/3 density of steel reduces operational load
Technical Specifications
| Parameter | Value |
|---|---|
| Material | SSIC |
| Density | 3.15 g/cm³ |
| Flexural Strength | 550 MPa |
| Thermal Conductivity | 120 W/(m*K) |
| Max Operating Temp | 1650°C |
| CTE | 4.0×10⁻⁶/°C |
Typical Applications
- Mechanical seals for chemical process pumps
- Rotary components in semiconductor equipment
- Bearing assemblies for molten salt pumps
- Specialized nuclear industry equipment
Why Choose Us
Professional Team
Our company (ZXSQ and CSQ) possesses eleven invention patents for utility models. We have a high-quality professional team of dozens of members to provide excellent service and customized bearing products according to customer requirements.
Since 1982, we have accumulated over 40 years of experience in ceramic bearing material research and development, processing techniques, and equipment improvement. Through continuous evolution, we have become a leading enterprise in China's ceramic bearing and ceramic material products market.
Factory Strength
We operate a fully automatic grinding and assembling production line for ceramic bearings, with an annual output of 3 million sets of 608-2PS, 608-2RS and other specifications of P5 and P4 precision levels. Our facility specializes in producing various types of rolling bearings, ceramic balls, and ceramic rollers.
Our firing equipment and technology lead the industry, featuring the most advanced equipment in domestic industrial ceramics production, including a hot isostatic sintering furnace (HIP) imported from ABB Sweden. Our product firing temperature capability exceeds 2000°C.
Frequently Asked Questions
Q: Who are we?
A: We are a factory in Beijing, China with over 40 years of experience producing ceramic bearings. We have established cooperative relationships with many domestic and international companies.
Q: How do we guarantee quality?
A: We produce samples before mass production and strictly follow customer requirements. Products undergo precise inspection using specialized equipment, and we use double-layer foam and carton packaging to ensure product quality.
Q: What products do we offer?
A: We provide ceramic deep groove ball bearings, ceramic angular contact ball bearings, hybrid ceramic ball bearings, ceramic linear bearings, and various ceramic balls.
Q: Why choose us over other suppliers?
A: As an integrated industry and trade company with three factories, we maintain modern production and inspection equipment to ensure better delivery times and product quality.
Q: What services do we provide?
A: We offer high-quality products and customized services according to user needs, including sample provision for customer confirmation.
Welcome Your Enquiry
We supply high-quality bearings and related products. For purchasing inquiries or price consultations, please contact us. As a professional bearing company integrating R&D, production, sales, and service, we carefully manufacture each bearing using premium materials.
We prioritize customer needs, striving to provide quality products and after-sales service to create value and become your trusted partner. We welcome opportunities for cooperation!
