Customized Ceramic Sliding Bearing Sleeve for Pumps
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Certification | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Model Number | customized products |
| Minimum Order Quantity | 20-50 pcs |
| Price | Negotiable |
| Packaging Details | Foam+carton box |
| Delivery Time | 20-45 work days |
| Payment Terms | T/T |
| Supply Ability | 2000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Customized Ceramic Sliding Sleeve Bearing | Category | Ceramic Sliding Bearing |
|---|---|---|---|
| Size | Customized,according To The Drawings | Material | Pressureless Sintered Silicon Carbide/Zirconia |
| Application | Pumps | Package | Foam+carton Box |
| Quality | High Precision, Long Life, OEM Serive | Specification | Standard Size And Customized |
| Highlight | Customized ceramic sliding bearing sleeve,High-temperature ceramic bearing for pumps,1650°C resistant pump bearing sleeve |
||
You can tick the products you need and communicate with us in the message board.
Product Description

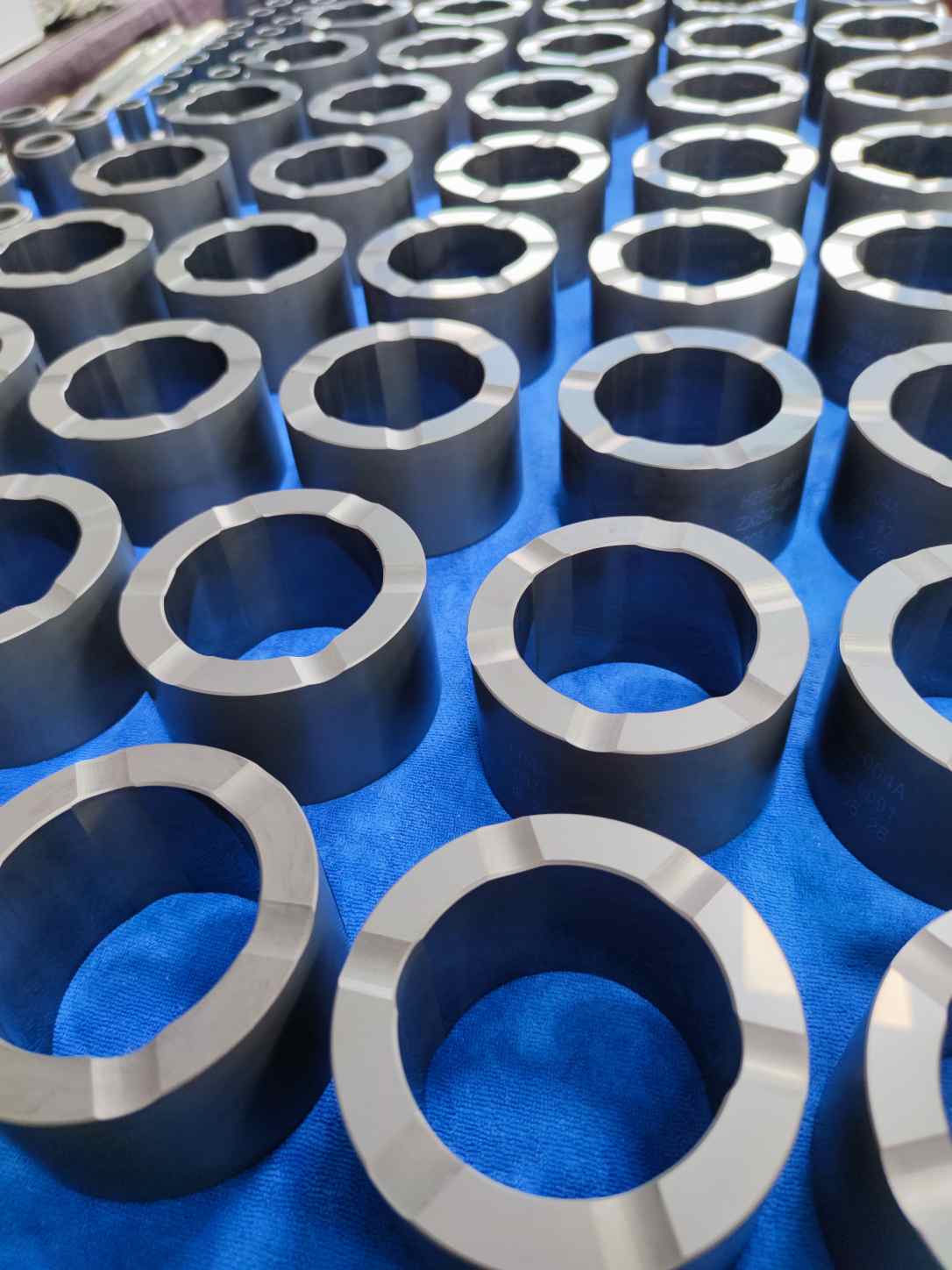

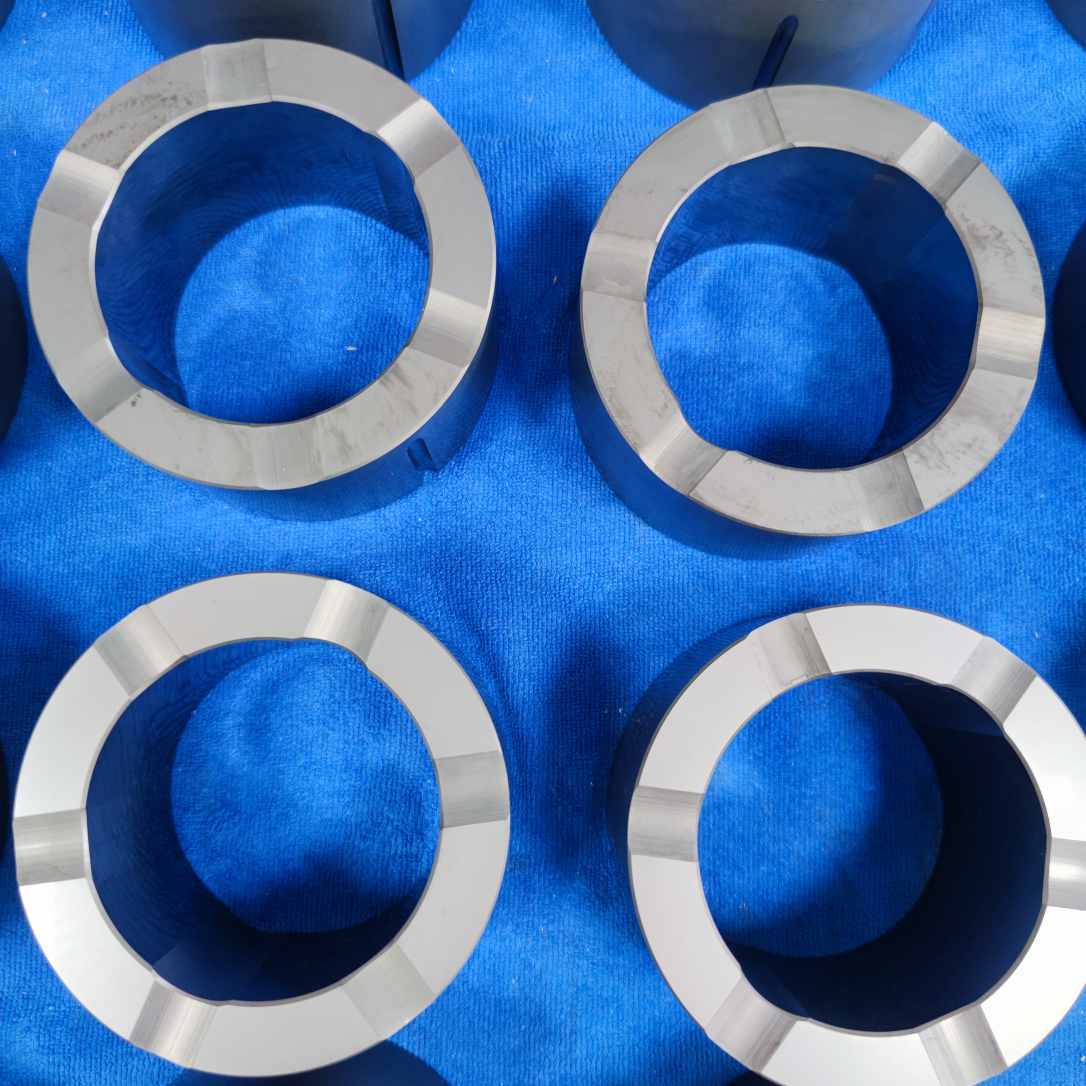

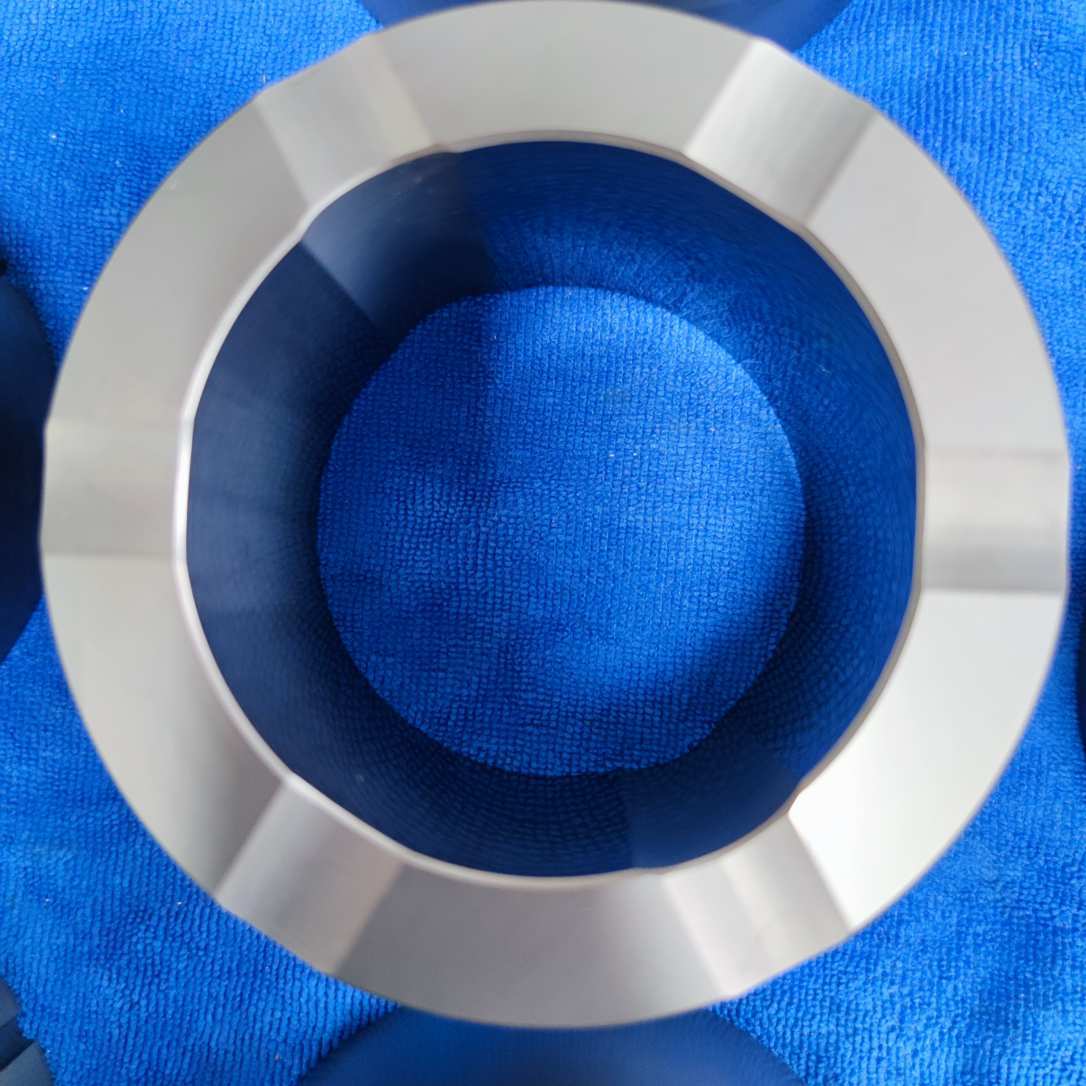

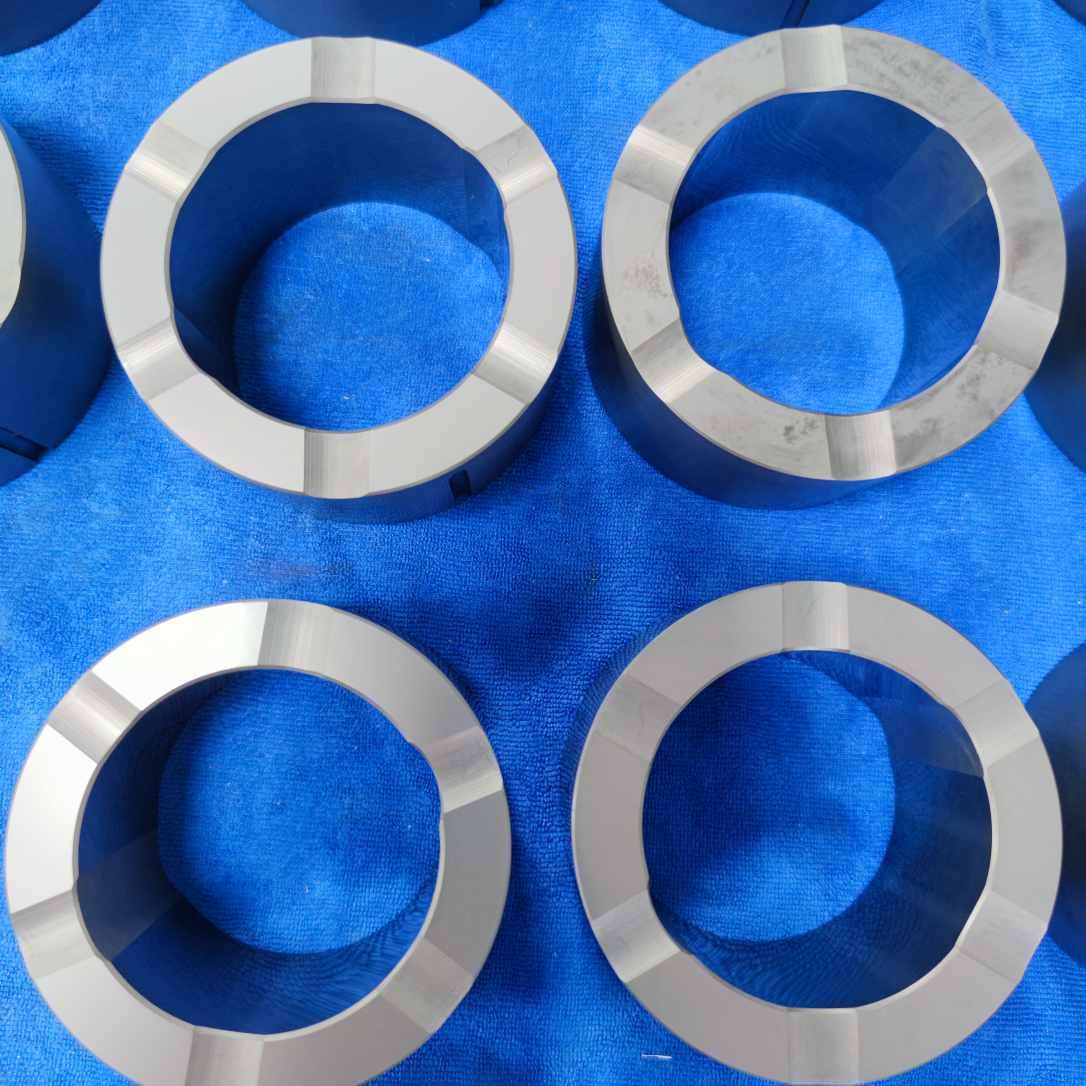

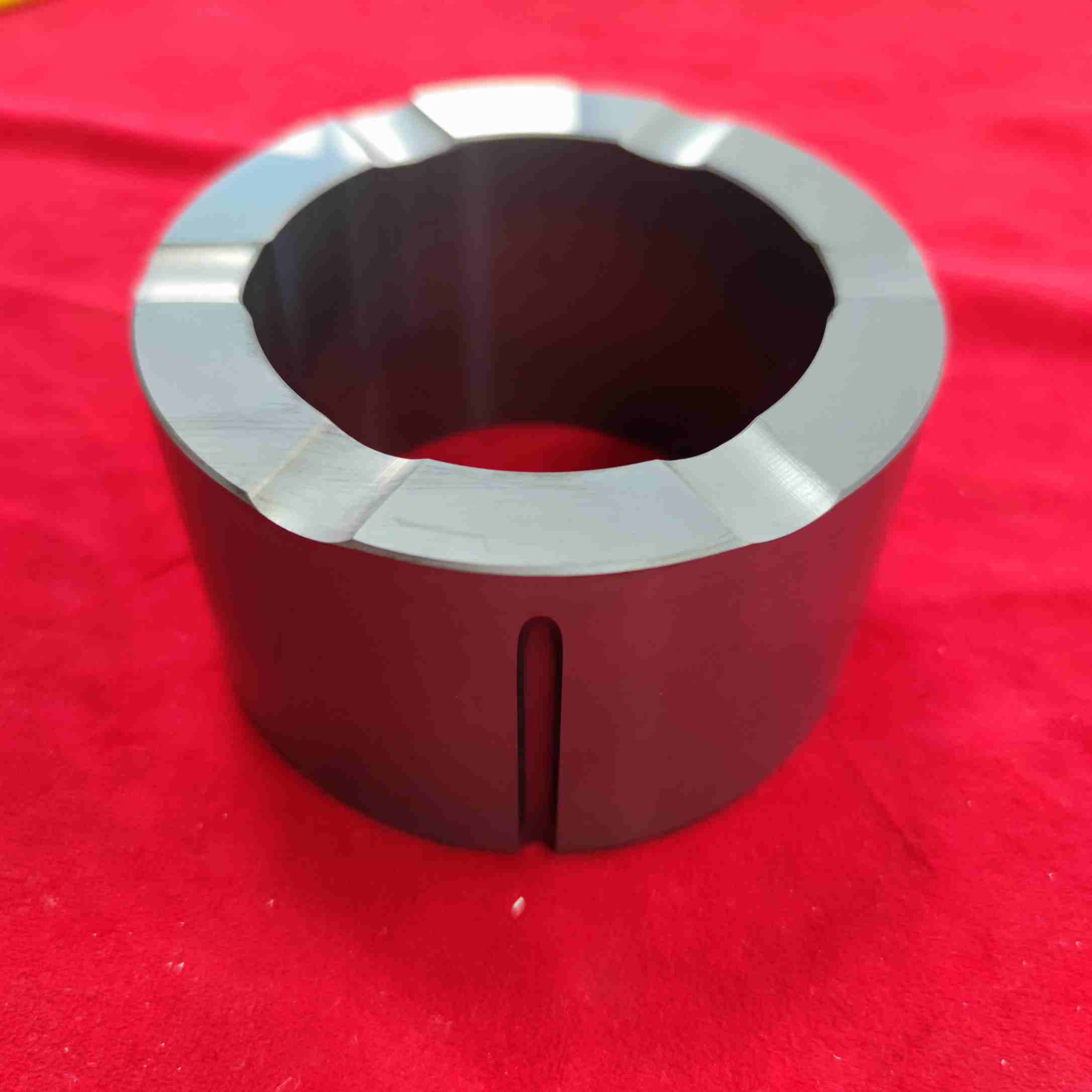

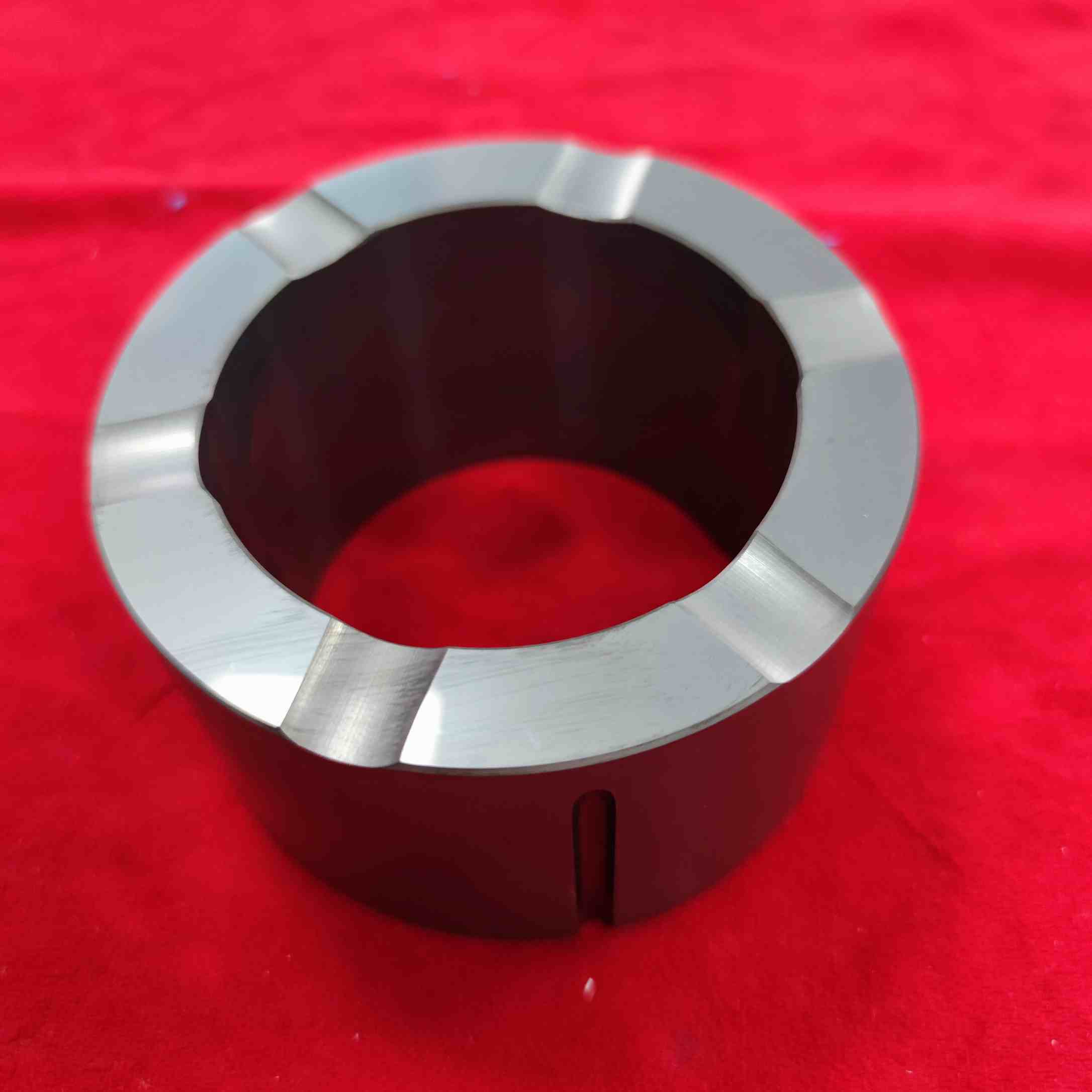

Customized Ceramic Sliding Bearing Sleeve in High Temperature Applications
Customized Silicon Carbide Sliding Bearing Sleeve
Ceramic sliding bearings are precision-engineered from high-performance materials like silicon nitride (Si3N4), silicon carbide (SiC), and zirconia (ZrO2), offering superior durability and reliability compared to traditional steel bearings. Designed for industrial, automotive, and aerospace applications, these bearings excel in corrosive, high-temperature, and high-wear environments.
Key Advantages
- Extreme Corrosion Resistance - Withstands harsh chemicals, acids, and marine environments, ideal for chemical processing, pumps, and offshore equipment.
- Ultra-Low Friction & Wear - Smoother, harder ceramic surfaces minimize friction, reducing energy loss and extending bearing lifespan by 5-10X over metal alternatives.
- High-Temperature Stability - Operates reliably up to 1,400°C, perfect for turbines, engines, and industrial furnaces.
- Lightweight & Non-Magnetic - Reduces rotational inertia and eliminates magnetic interference, critical for aerospace and medical devices.
Applications
Ceramic bearings can be widely used in aviation, aerospace, navigation, petroleum, chemical, automotive, electronic equipment, metallurgy, electric power, textile, pump, medical instruments, scientific research and national defense and other fields, is the application of new materials of high-tech products.
Properties
| Property | Value |
|---|---|
| Max Temperature | up to 1650℃ |
| Density | 3.15-3.18 g/cm³ |
| Thermal Expansion | 4.0 (10-6/℃) |
| Thermal Conductivity | 120 W/m°K |
| Hardness | 2800 HV5 |
| Elastic Modulus | 410GPa |
| Chemical Stability | Superior resistance to acid and alkali corrosion (including hydrofluoric acid) |
Advantages of All-Ceramic Bearings Compared with Steel Bearings
- Higher temperature tolerance: ceramic materials maintain mechanical properties at high temperatures.
- Better performance in temperature fluctuations: smaller thermal expansion coefficient reduces clearance changes.
- Improved anti-bite and anti-stuck performance: reduced thermal deformation enhances performance.
- Oil-free operation possible: self-lubricating characteristics suit high vacuum and difficult lubrication environments.
- Resistant to acid, alkali and salt corrosion: ideal for chemical processing applications.
- Electrical insulation: non-conductive with no static electricity generation.
- Non-magnetic: prevents magnetic particle adhesion in magnetic environments.
Why Choose Us
Our Factory and Processing Machines
We have three factories in China to meet different customer needs, equipped with advanced pressing, sintering and processing machines. Our company (brands ZXSQ and CSQ) holds eleven invention patents and maintains a professional team to provide customized bearing solutions.
With over 40 years of experience since 1982, we have evolved into a leading Chinese manufacturer of ceramic bearings and materials. We specialize in both external and internal gear pump sliding bearings in silicon carbide, with extensive supply experience including products for Germany's Witte.
Our Bearing Advantages
- Free sample bearings available
- ISO standard compliant
- In-stock bearings
- Small orders accepted
- OEM bearing service
- Customized bearings from drawings or samples
- Competitive factory pricing
Frequently Asked Questions
Who are we?
We are a factory in Beijing, China with over 40 years of ceramic bearing production experience, serving domestic and international clients.
How can we guarantee quality?
We produce samples first, follow strict production regulations, conduct precise inspections, and use double-layer packaging (foam + carton) to ensure product quality.
What can you buy from us?
Ceramic deep groove ball bearings, angular contact bearings, hybrid bearings, linear bearings, and various ceramic balls.
Why choose us over other suppliers?
We operate three factories with modern equipment, offering better delivery times and product quality through integrated production and trade.
What services do we provide?
We offer high-quality products, full customization, and sample confirmation services tailored to user needs.
Welcome Your Enquiry
We maintain stable raw material partnerships to ensure consistent quality and pricing. With in-house material production capability when needed, we focus on customer needs to provide quality products and after-sales service. Contact us to discuss cooperation opportunities!
