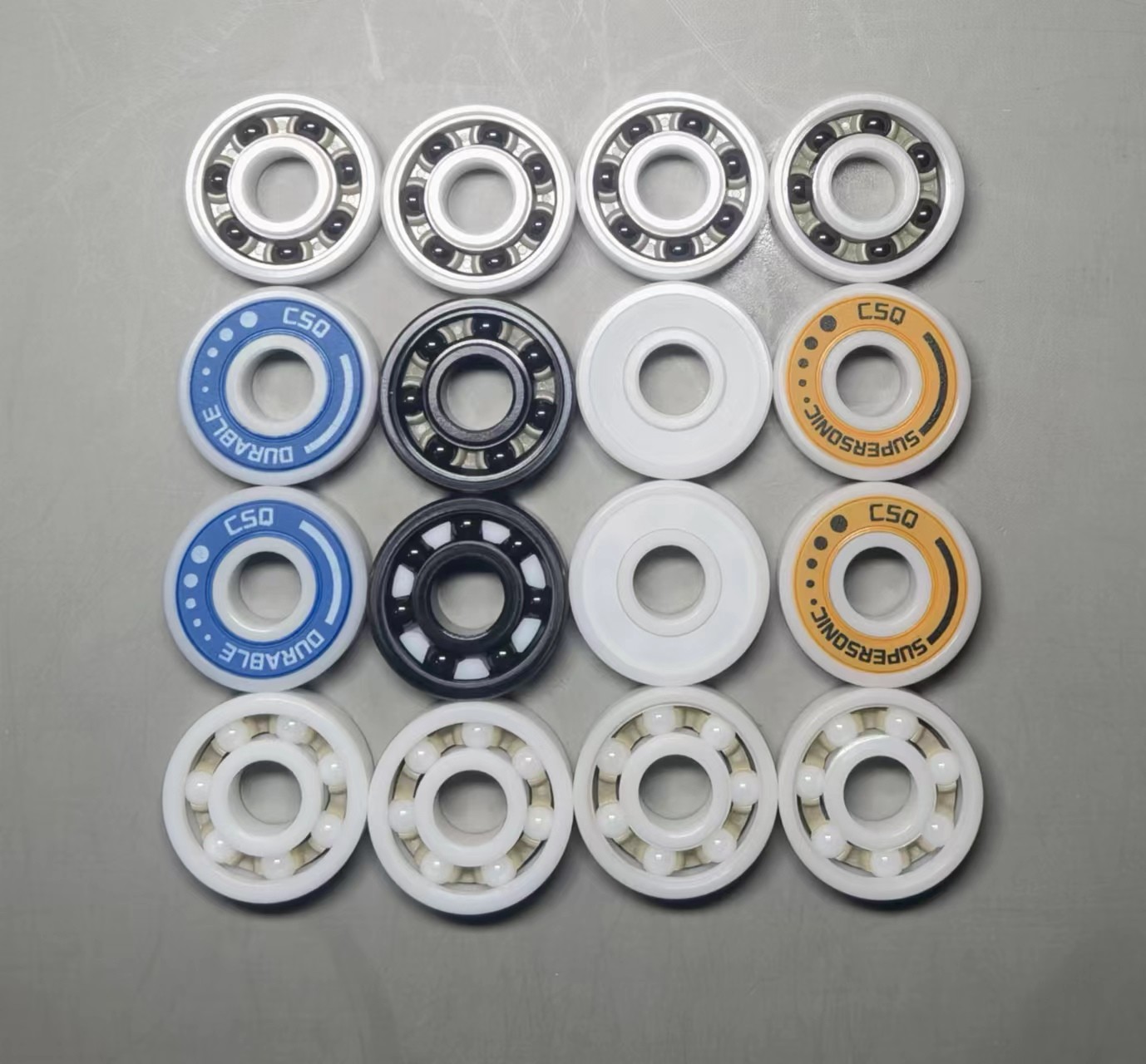

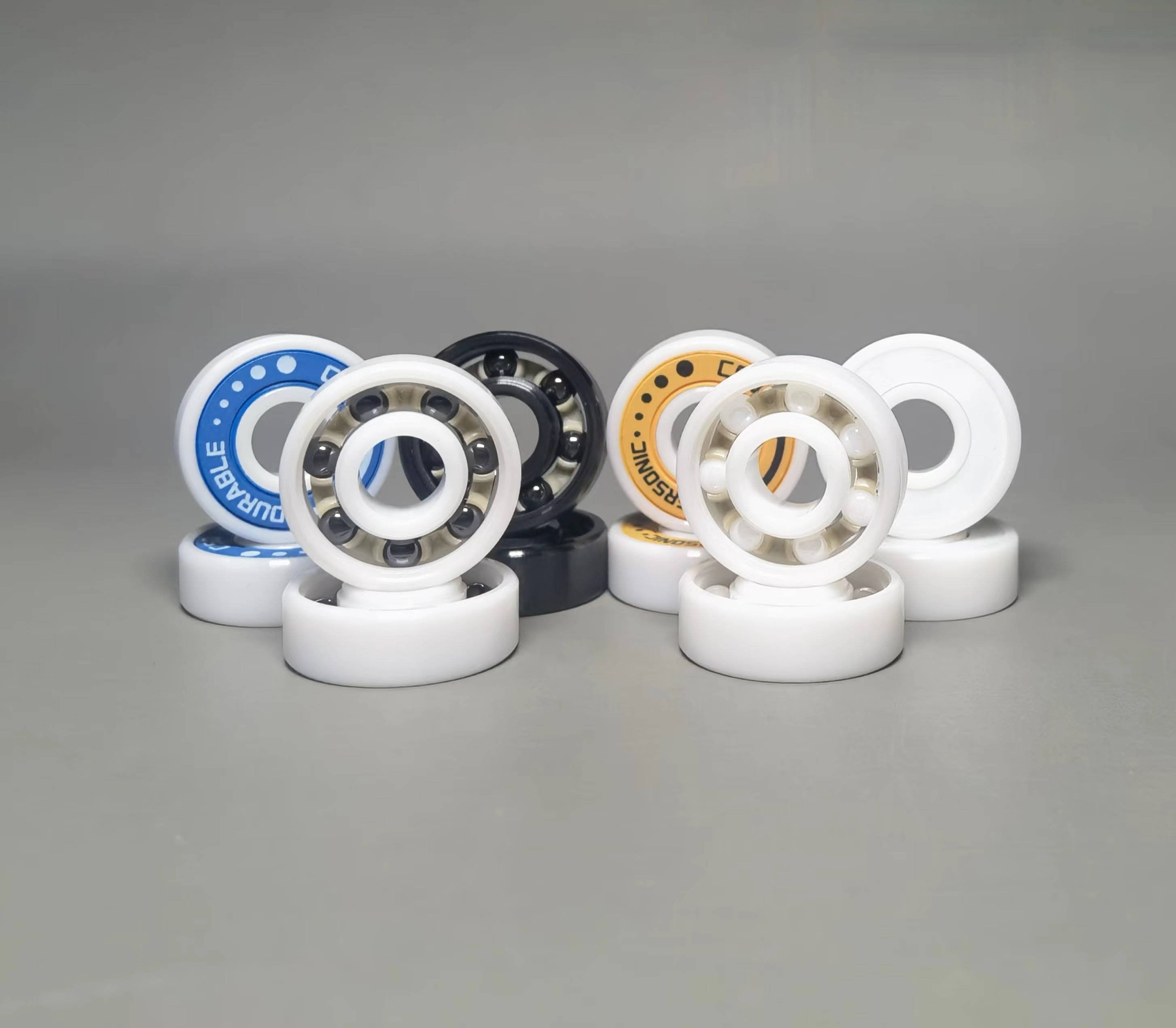

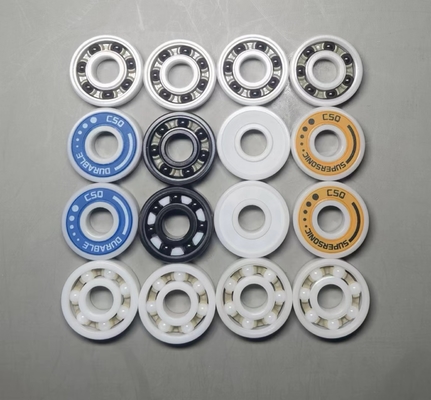

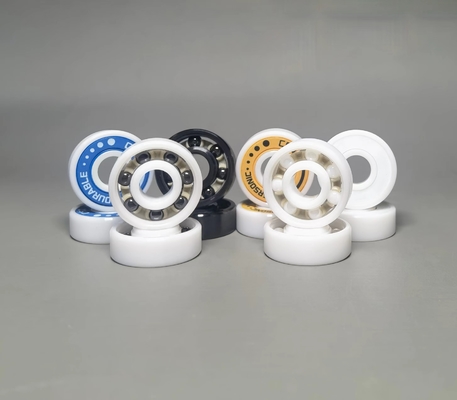

High Speed 608 Ceramic Bearings For Roller Skates Skateboard ZrO2 Si3N4 SSiC
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 608 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | Negotiable |
| Payment Terms | T/T |
| Supply Ability | Negotiable |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 608 Ceramic Ball Bearings | Structure | Miniature Ceramic Deep Groove Ball Bearing |
|---|---|---|---|
| Material | ZrO2 Or Si3N4 Or SSiC | Precision | P6/ABEC3 To P4/ABEC7 |
| Diamater | 8×22×7mm | Ball Size | 3.969 Mm (7 Pieces) |
| Highlight | 608 high speed bearings,ceramic bearings for skateboard,high speed 608 ceramic bearings |
||
Product Description
ZrO2 Or Si3N4 Or SSiC 608 Ceramic Ball Bearings With High Precision
Why choose us:
Zhongxing Shiqiang Technology (Tianjin) Co., Ltd. mainly produces ceramic rolling bearings and ceramic balls. At present, the company has a production line for automatic grinding and assembly of ceramic bearings, and designs an annual output of 3 million sets of 608-2PS, 608-2TS, 608-2RS and 608-2Z all-ceramic bearings and mixed ceramic bearings whose precision grades can reach P5 and P4. Our design annual output is 150000000 sets.
Description of All Ceramic Ball Bearing 608 :
1. Races and balls: The material of races and balls can be chosen among HIP-ZrO2 (Hot isostatic pressure sintered zirconia), HIP-Si3N4 (Hot isostatic pressure sintered silicon nitride) or SSiC (Pressureless sintered silicon carbide)
4. Cage and seals: The material of cage can be chosen among PEEK, and Nylon, the material of seals can be chosen among PEEK, , Rubbers and stainless steel. PEEK and material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics, which are our recommended materials.
Material properties data sheet of our ceramic material:
All the data is based on our own experiments. We have professional research and development ability, welcome your inquiry.
| Material Properties | Units | SSiC | HIP-Si3N4 | GPS-Si3N4 | HIP-ZrO2 |
| Density | g/cm3 | 3.15-3.18 | 3.27-3.29 | 3.22-3.27 | 6.05-6.09 |
| Porosity | % | 0 | 0 | 0 | 0 |
| Fledural Strength | MPa | 550 | 830 | 689 | 900 |
| Elastic Modulus | GPa | 410 | 310 | 310 | 200 |
| Hardness | HV5 | 2800 | 1580 | 1450 | 1300 |
| Fracture Toughness KIC | MPa.m1/2 | 4.6 | 6.1 | 5.7 | 8-11 |
| Maximum Use Temperature | ℃ (℉) |
1650 (3000) |
1000 (1830) |
1000 (1830) |
380 (716) |
