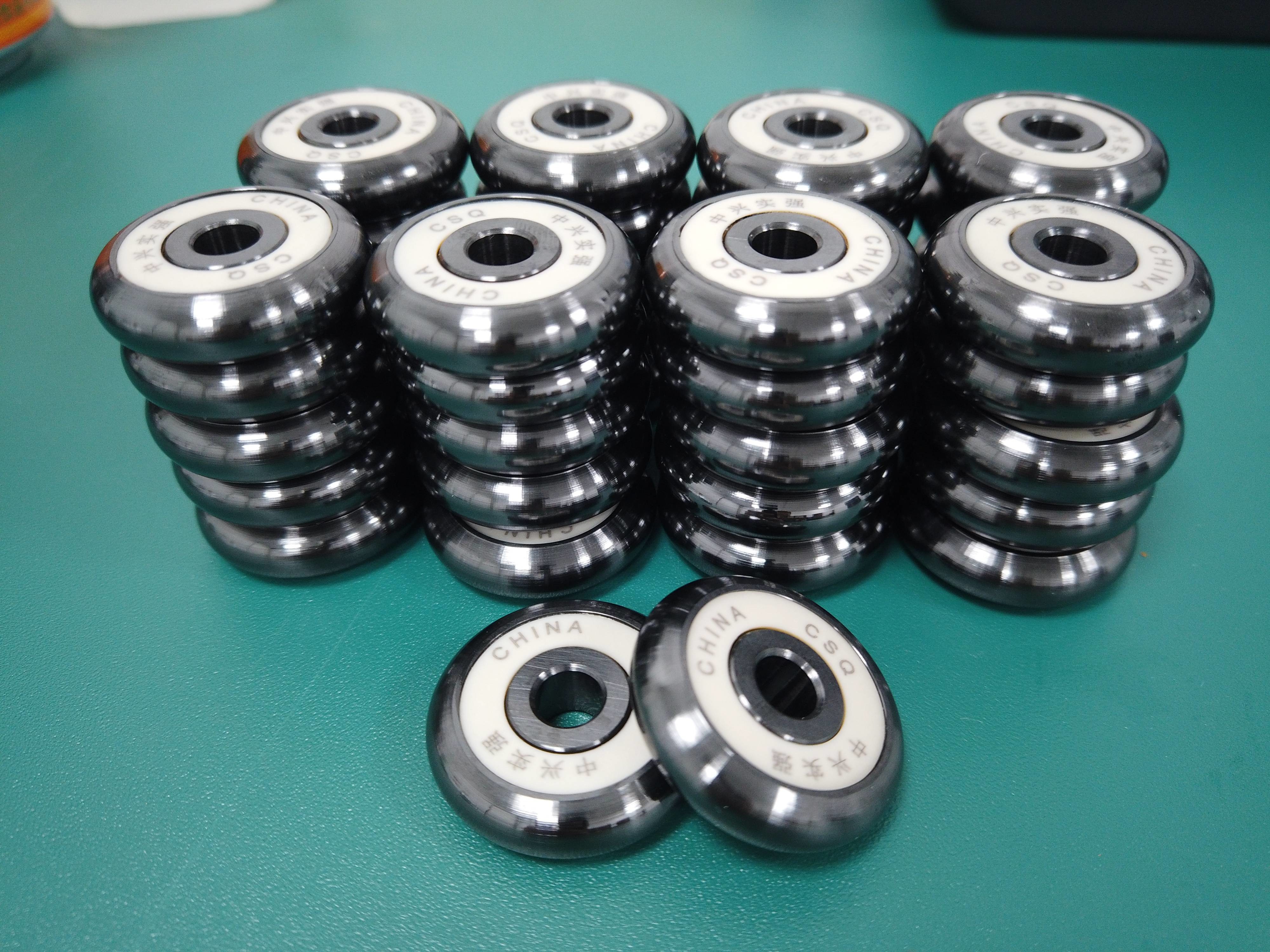

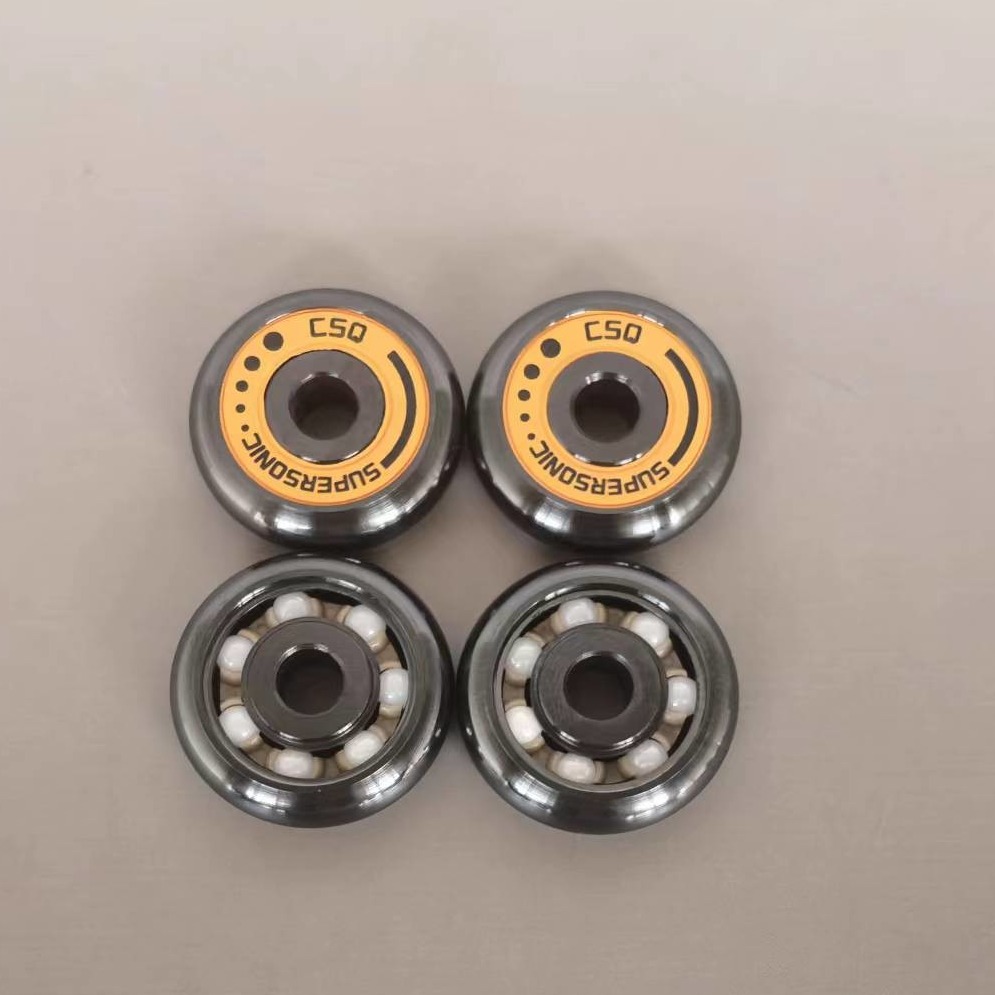

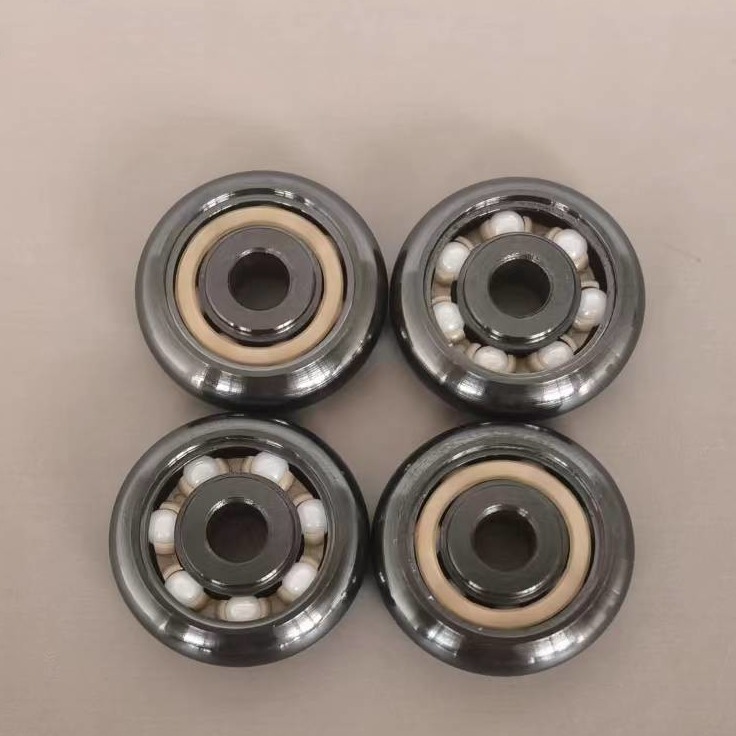

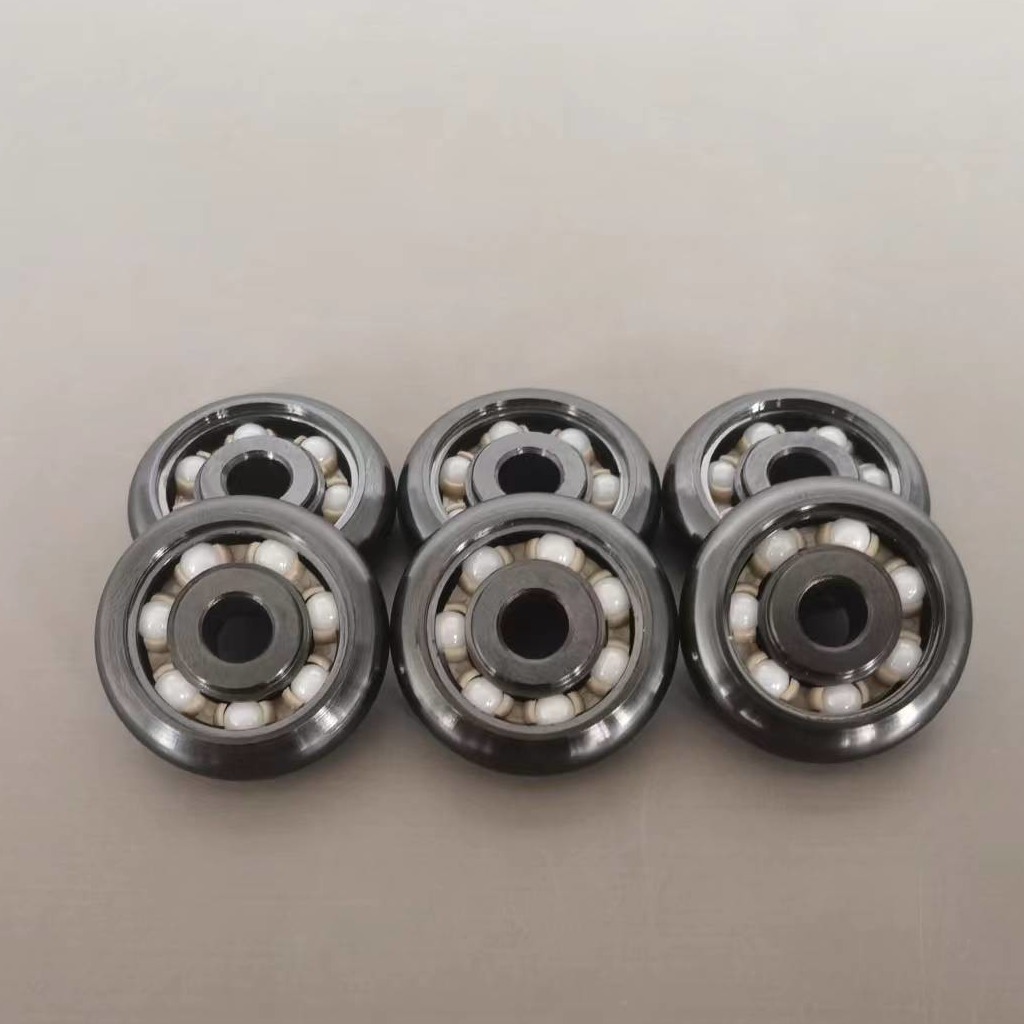

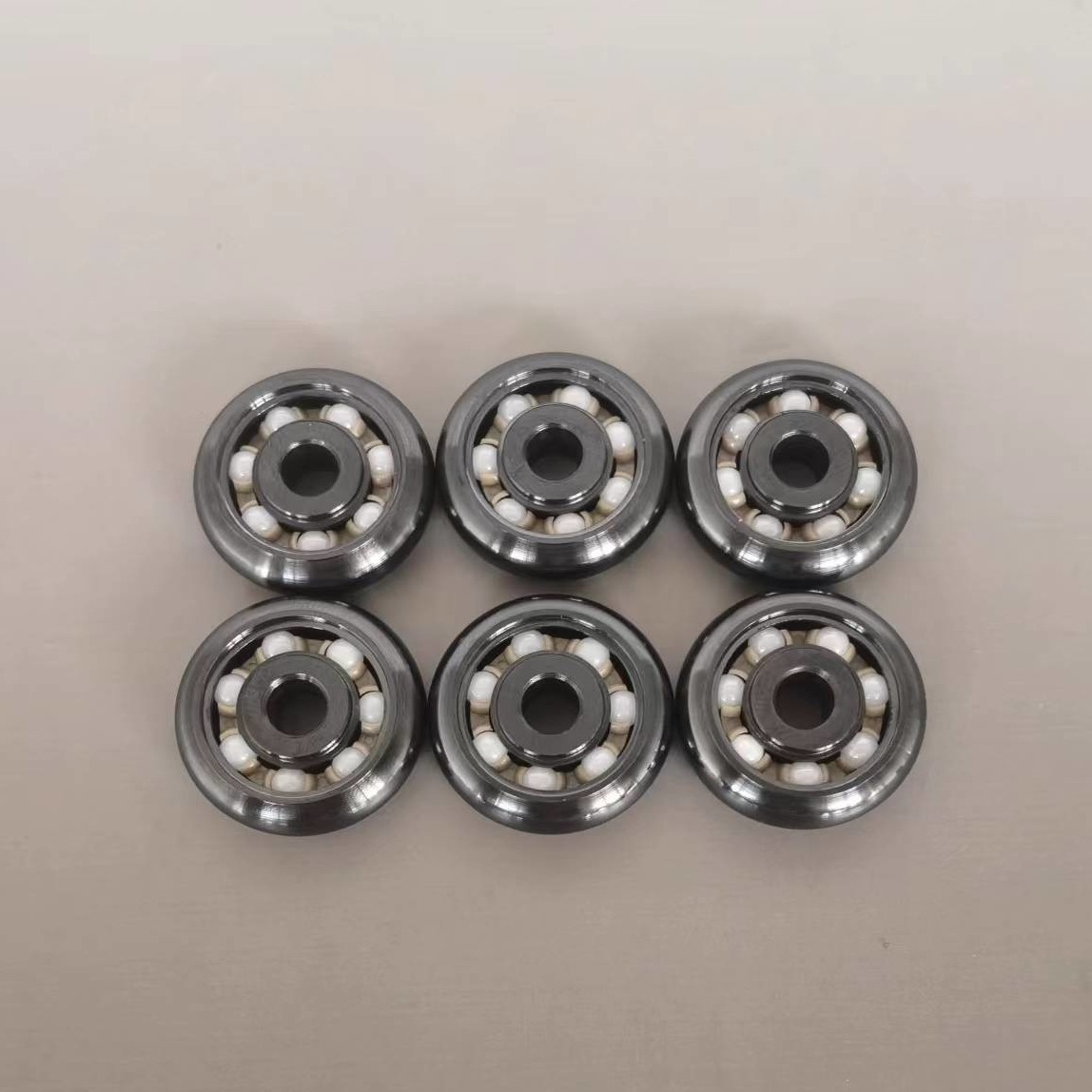

608 Full Ceramic Bearings For Inline Skates Service Non Standard
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | Non-standard 608 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | 10 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 10 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Non-standard 608 Ceramic Bearing | Model | Non-standard 608 |
|---|---|---|---|
| Material | Silicon Nitride Or Zirconia Races And Balls+peek Cage | Precision | P6/ABEC3 |
| Ball | HIP-Si3N4/ZrO2 Ball Of 3.969 Mm | Use | High-end Door And Window Roller |
| MOQ | 50 Pieces | Pacage | Plastik Box+carton Box |
| Highlight | bearing ceramic 608,ceramic bearing service,608 full ceramic bearings |
||
Product Description
Non-standard 608 Ceramic Bearings in material of Si3N4/ZrO2+Peek Cage
Description of Non-standard 608 Ceramic Bearing (HIP-Si3N4 or HIP-ZrO2 Races and Balls+Peek Cage):
1. HIP-Si3N4 Races and Balls: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.
2. HIP-ZrO2 Races and Balls: Are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material, are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.
3. PEEK cage: We adopted British Victrex PEEK material, PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics. The peek cages are injection molded at high temperature, so have high strength, light body.
Performance advantages of Non-standard 608 Ceramic Bearing (HIP-Si3N4 or HIP-ZrO2 Races and Balls+Peek Cage):
| ►Key properties of zirconia |
| ♦High hardness : 1300 HV5 |
| ♦ High density: 6.09 g/cm3 |
| ♦ Max Temperature up to 380℃ |
| ♦ Chemical stability, resistance to acid and alkali corrosion |
| ♦ High fracture toughness KIC:8-11 MPa-m1/2 and good wear resistance |
| ♦ Low thermal conductivity |
| ♦ Better bearing capacity |
| ♦ Good electric insulation and wear resistance |
| ► Key properties of hot isostatic sintered silicon nitride |
| ♦ Max temperature to 1000℃ |
| ♦ High strength over a wide temperature range |
| ♦ High fracture toughness: 6.1 MPa-m1/2 |
| ♦ High hardness: 1580 HV5 |
| ♦ Outstanding wear resistance, both impingement and frictional modes |
| ♦ Good thermal shock resistance |
| ♦ Good chemical stability,resistance to acid and alkali corrosion |
| ♦ Good electric insulation |
Main application of Non-standard 608 Ceramic Bearing (HIP-Si3N4 or HIP-ZrO2 Races and Balls+Peek Cage):
Because of the above mentioned performance advantages and its special structure, the non-standard 608 ceramic bearings are suitable for the rollers of high-end door and window.
