608 Hybrid Ceramic Bearings For Ginder Wheel Steel Races ZrO2 Si3N4 Balls
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 608 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | 5 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 5 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hybrid Ceramic Bearing 608 | Category | Ceramic Ball Bearings |
|---|---|---|---|
| Structure | Miniature Deep Groove Bearing | Material | Steel Races+ZrO2/Si3N4 Balls |
| Size | 608: 8×22×7mm | Ball | 3.969mm In Material Of Zirconia Or Silicon Nitride |
| Pacage | Plastik Box+carton Box | MOQ | 50 Pieces |
| Highlight | 608 ceramic bearings For Ginder Wheel,hybrid ceramic ball bearings,bearing hybrid ceramic |
||
Product Description

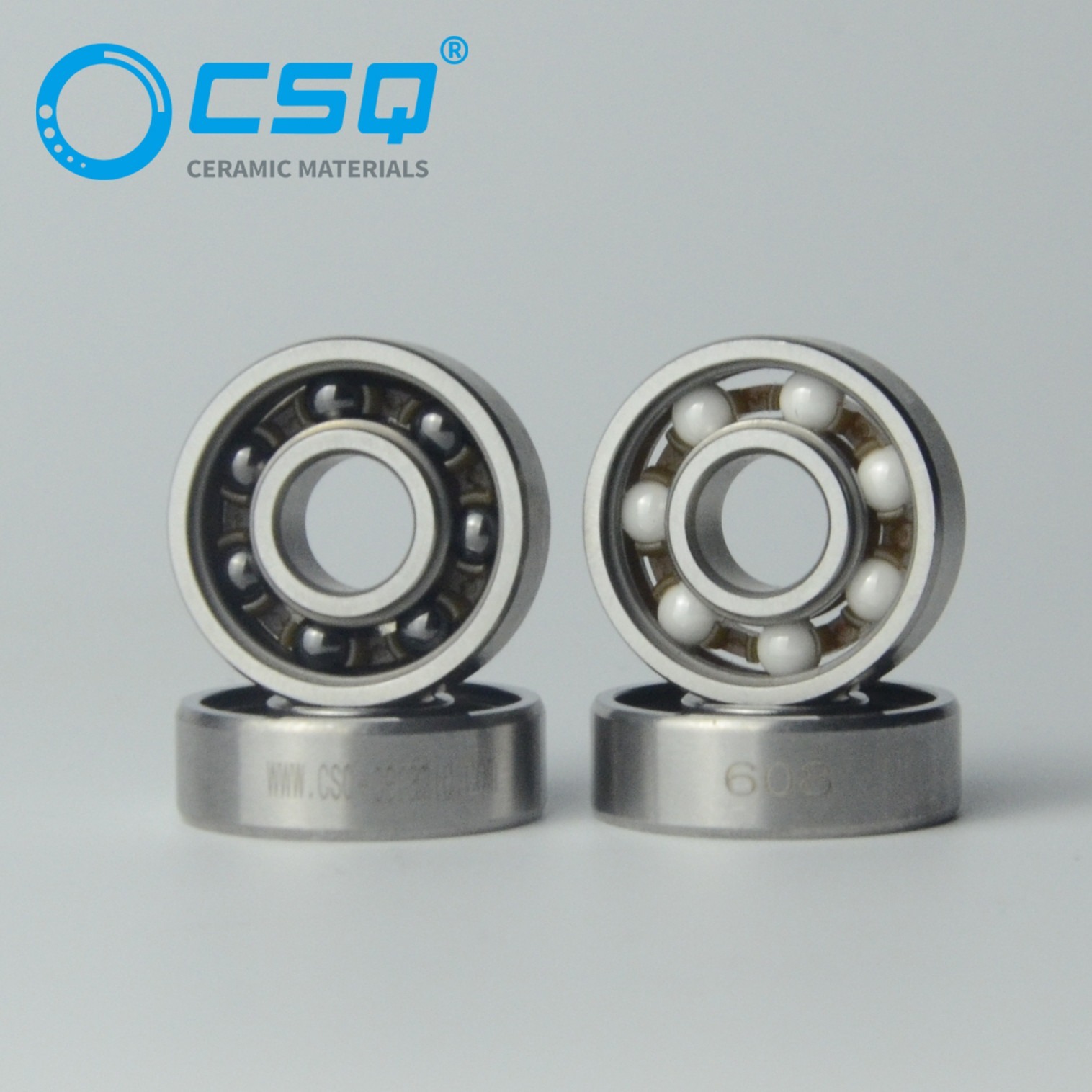

Hybrid Ceramic Bearing 608 of Steel Races+ZrO2/Si3N4 Balls For Ceramic Ginder Wheel
Description of Hybrid Ceramic Bearing 608:
1. Races can be chosen among GCr15 bearing steel, 440C stainless steel, high temperature resistant bearing steel, etc.,
2. Balls can be chosen among zirconia or silicon nitride ceramic balls, and their precision can reach G5 Grade.
Performance advantages of Hybrid Ceramic Bearing 608:
Non-magnetic, non-conductive, low noise, electrically insulated, non-locking at high speeds, resistant to dry friction, long life, cost effective and etc.

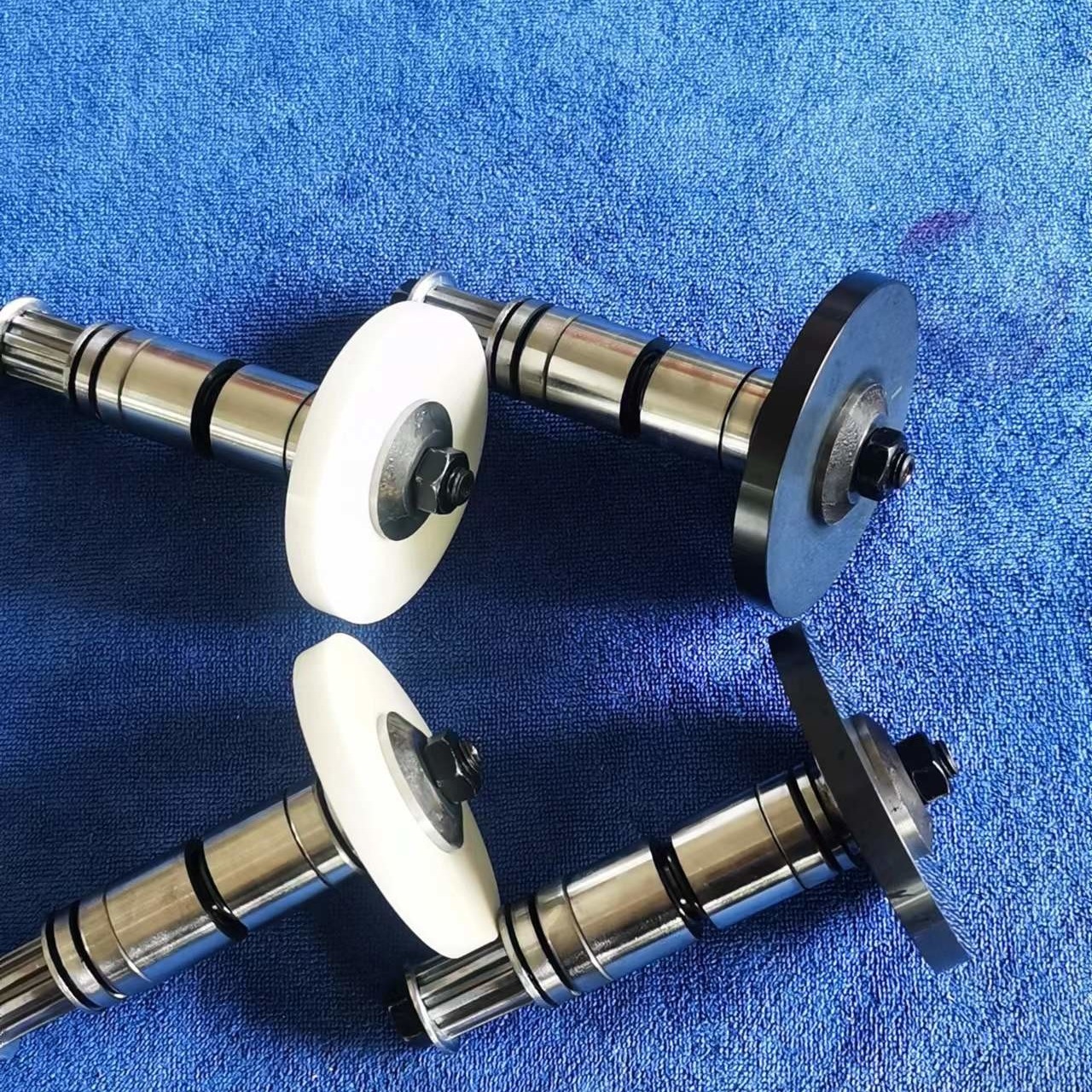

Main application of Ceramic Ginder Wheel fitted with Hybrid Ceramic Bearing 608:
Because of the high hardness of races and good properties of ceramic balls, the ceramic ginder wheel fitted with our Hybrid ceramic bearing 608 can be used in the bearings grinding machine.
| ►Key properties of zirconia |
| ♦ Max Temperature up to 380℃ |
| ♦ High density: 6.09 g/cm3 |
| ♦ Low thermal conductivity |
| ♦ Chemical stability, resistance to acid and alkali corrosion |
| ♦ High fracture toughness KIC:8-11 MPa-m1/2 |
| ♦ Good electric insulation |
| ♦ Better bearing capacity |
| ♦ Wear resistance |
| ♦ High hardness : 1300 HV5 |
| ► Key properties of hot isostatic sintered silicon nitride |
| ♦ Max temperature to 1000℃ |
| ♦ High strength over a wide temperature range |
| ♦ High fracture toughness: 6.1 MPa-m1/2 |
| ♦ High hardness: 1580 HV5 |
| ♦ Outstanding wear resistance, both impingement and frictional modes |
| ♦ Good thermal shock resistance |
| ♦ Good chemical stability,resistance to acid and alkali corrosion |
| ♦ Good electric insulation |
